 Equalizer / Suction Outlets with Base Plate - AquaStar



VGB 2008 Compliant


4" Specs:
Total Open Area = 4.3 square inches
72 GPM at 5.3 ft/sec

View Product Sheet

* Notice of Recall *

Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.

please visit
 Manufacturer's Recall Information
for further information.




     Skimmer Equalizer / Suction Outlet - with 4" Cover - Sumpless
 Note - Item Comes Complete

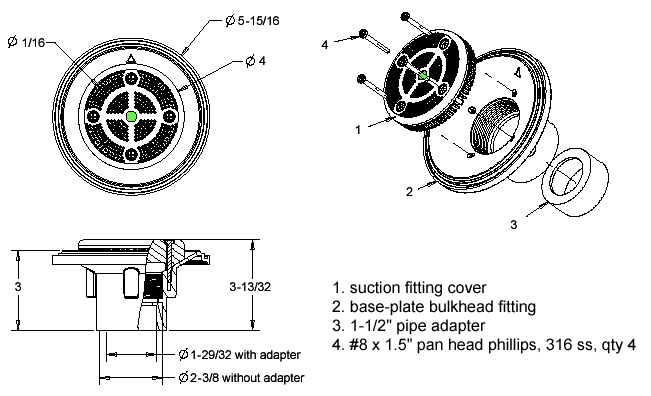

Complete 4" Skimmer Equalizer / Suction Outlet
H2O # Manf. # Description
4472385 4RND101

 NO LONGER SOLD  4", White, complete with Screws, Cover and Base-Plate Adapter. Base-Plate Adapter is 2" Slip or 1-1/2" Slip when used with included 1-1/2" Pipe Adapter
Additional color choices are available by special order


Replacement Parts
H2O # Manf. # Description
4472388 R4RND101

 NO LONGER SOLD  4" White, Replacement or Retrofit Cover, includes screws. Also retrofits to Sta-Rite / Pentair model 8011
4472415 RND101

White Base-Plate Bulkhead Fitting only, includes 1-1/2" Pipe Adapter
Also includes 4 Spacer Blocks, but these are not needed when used with a 4" cover.



 REPLACEMENT SOLUTION:
Use 6HPxxx ('xxx' ?) with SCW1026 ( screw / bushing kit )
Theses two items are sold separately.


Detailed Spec Sheet:






6" Cover with Base-Plate Bulkhead
same as the 4" but with 6" cover.
VGB 2008 Compliant


6" Cover Specs:
( based off 2" pipe )
Total Open Area = 11.4 square inches
224 GPM at 6.3 ft/sec
53.6 GPM at 1.5 ft/sec

View Product Sheet


    Skimmer Equalizer / Outlets
 Note - Item does not come complete, Order One Cover and One Base-Plate Bulkhead Fitting

6" Cover
H2O # Manf. # Description
4472400 6HP101

6", White Cover with screws **

** Note that the screws which are included with cover will not be used.
Use the screws and Spacer Blocks which come with the Base-Plate Bulkhead Fitting.
Additional color choices are available by special order


Base-Plate Bulkhead Fitting
H2O # Manf. # Description
4472415 RND101

White,  2" Slip Base-Plate Bulkhead Fitting only, includes 1-1/2" Pipe Adapter - Also includes 4 Spacer Blocks and 4 Spacer Block Screws. **
** The 4 Spacer Blocks  and screws which are included with the Base-Plate Bulkhead Fitting
can be ordered separately as a set of 4 by ordering H2O Part Number 4474204.



Detailed Spec Sheet:




 Retrofit Equalizer / Suction Outlet to 8" Cover



Retrofit TO

From

 4" hockey puck style shown here
installed into a floor inlet fitting
before retrofitting.

View Product Sheet

VGB 2008 Compliant

* Notice of Recall *

Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.

please visit
 Manufacturer's Recall Information
for further information.


    Retrofit Skimmer Equalizer / Outlets to 8" Cover
Total Open Area =7.7 square inches
Floor: 100 GPM at 4.2 fps
Wall: 70 GPM at 2.9 fps
Floor/wall: 36 GPM at 1.5 fps

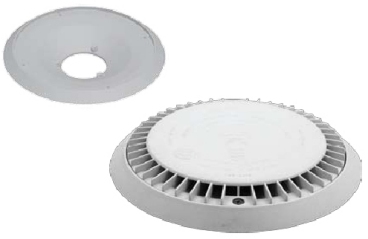

8" Retrofit Kit
H2O # Manf. # Description
4472345 LP8MH101

 NO LONGER SOLD  8" Low-Profile Skimmer Equalizer Retrofit Kit, White
Additional color choices are available by special order


For new installs either two of the following AquaStar Base-Plate Adapters can be used.
H2O # Manf. # Description
4472355 4DIV101

White, Base-Plate Bulkhead Floor Inlet Return Fitting,

4472415 RND101

White, Base-Plate Bulkhead Fitting



 REPLACEMENT SOLUTION:
Use 8HPxxx ('xxx' ?)



Detailed Spec Sheet:
