Equalizer Fittings /
Outlets with Bulkhead Adapter - AquaStar |
|
VGB 2008 Compliant

4" Cover Specs:
( based off of 1-1/2" pipe )
Total Open Area = 5.2 square inches
56 GPM at 3.5 ft/sec
24.4 GPM at 1.5 ft/sec
View Product Sheet |
|
 Skimmer Equalizer / Outlets
- Sumpless
Note -
Order One Cover and One Bulkhead Adapter
|
|
4" Covers |
|
H2O # |
Manf. # |
Description |
|
4472368 |
4HP101 |
4", White VGB Cover w / 3 stainless steel screws |
|
4472390 |
4HP103 |
4", Gray, VGB Cover w / 3 stainless steel screws |
|
Additional color choices
are available by special order |
|
|
Bulkhead Adapters |
|
H2O # |
Manf. # |
Description |
|
4472371 |
415SI101 |
1-1/2" Insider - Fits inside a Sch 40 2" Pipe ** |
|
4472375 |
420SI101 |
2" Insider - Fits inside a Sch 40 2" Pipe ** |
|
4472373 |
415T101 |
1-1/2" MPT Threaded ** |
|
4472380 |
420T15S101 |
2" MPT Threaded ** |
**
We stock all adapters in white. Only 1/16" of the adapter shows
after installing the cover.
Other adapters are available.
Looking for a Retrofit 1-1/2" MPT Threaded for Hydro-Air 4" spa
fitting ? Go Here to
catalog page I-15 |
|
|
|
 |

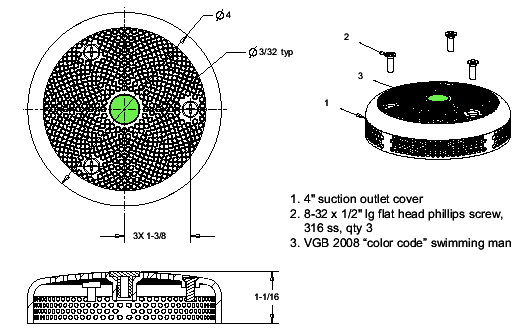

Detailed Spec Sheet: |
|
Basic Picture of 4" Cover with
Bulkhead Adapter
  |
|
|
VGB 2008 Compliant
6" Cover Specs:
( based off of 2" pipe )
Total Open Area = 11.4 square inches
224 GPM at 6.3 ft/sec
53.6 GPM at 1.5 ft/sec
View Product Sheet |
|
Skimmer Equalizer / Outlets
Note -
Order One Cover and One Bulkhead Adapter
|
|
6" Cover |
|
H2O # |
Manf. # |
Description |
|
4472400 |
6HP101 |
6", White VGB Cover w / 4 stainless steel screws |
|
Additional
color choices
are available by special order |
|
|
Bulkhead Adapter |
|
H2O # |
Manf. # |
Description |
|
4472420 |
620SI101 |
2" Insider - Fits inside a Sch 40 2" Pipe |
|
4472395 |
620T15S101 |
2" MPT Threaded or 1-1/2" Slip Socket |
|
4472425 |
625T20S101 |
2-1/2" MPT Threaded or 2" Slip Socket
** |
**
This item is currently special order only
Looking for a Retrofit Cover to replace Hydro-Air 6" #30-6011 or
#30-6200 drain cover?
Go Here to catalog page I-15 |
|
|
|
|
|

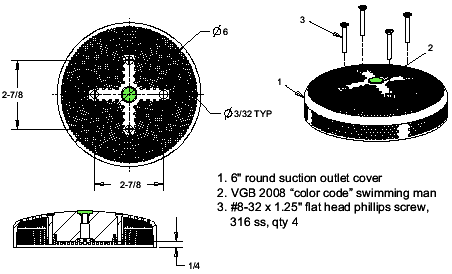

Detailed Spec Sheet: |
|
Basic Picture of 6" Cover with
Bulkhead Adapter
  |
|
|
Equalizer Fittings /
Outlets - WaterWay |
|
VGB 2008 Compliant
View Product Sheet |
Skimmer Equalizer / Outlet
Total Open Area = 9.02 square inches
Wall Flow Rate for 2" Spigot or 1-1/2" Slip = 164 GPM@5.85 ft
per sec and 42 GPM@1.5 ft/sec
Wall Flow Rate for 1-1/2" Mipt = 106 GPM@3.79 ft/sec and 42
GPM@1.5 ft/sec
5" Skimmer Equalizer
/ Outlet |
|
H2O # |
Manf. # |
Description |
|
4062410 |
640-8010V |
5", White, 2" Spigot
** or 1-1/2" Slip |
|
4062412 |
640-8017V |
5", Gray, 2" Spigot
** or 1-1/2" Slip |
|
4062414 |
640-8030V |
5", White, 1-1/2" MPT Threaded |
|
4062417 |
640-8037V |
5", Gray, 1-1/2" MPT Threaded |
|
**
NOTE - 2" Spigot is the same size as a 2" pipe and is
intended to fit into a 2" Slip fitting such as a coupling |
|
|
|
|
|

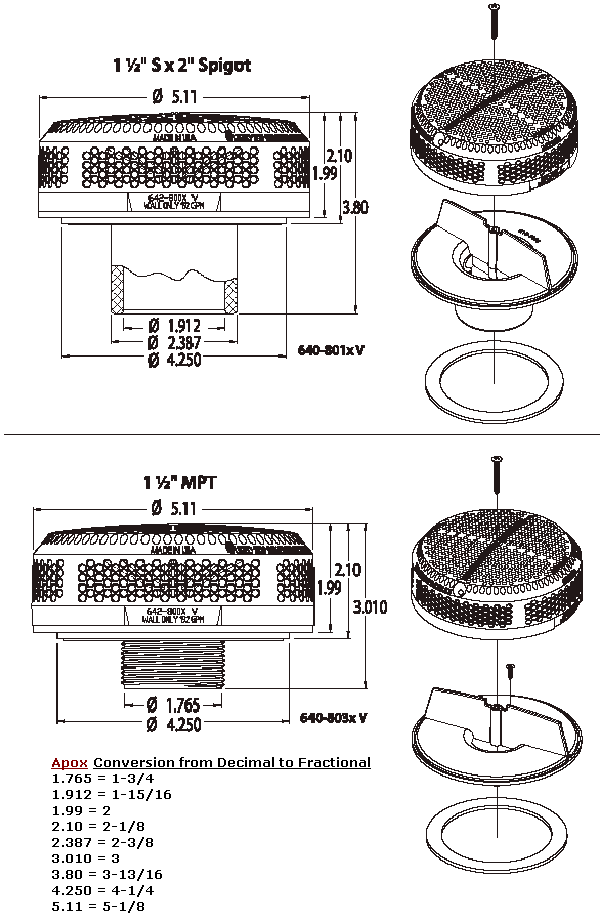

Detailed Spec Sheet: |
|
|
|
