Square
Suction Cover and Frame - AquaStar |
|
9" x 9" Square
Cover and Frame
VGB 2008 Compliant
*Fits: AquaStar (p/n 9xxx, pre-VGB “flat”);
Pentair (#1 selling) with 3/4" deep
existing frames and four screw hole
pattern
*
Notice of Recall *
Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.
please visit
Manufacturer's Recall Information
for further information.
|
|

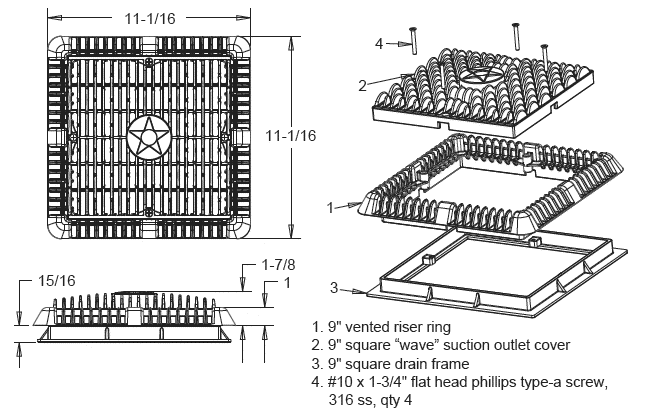

9" x 9" Square “Wave” Suction Cover and Frame
|
|
Anti-Entrapment
Flow Rates
Single:
Floor/wall: 224 GPM at 1.6 fps
(Floor/wall: 207 GPM at 1.5 fps)
44.2 square inch opening
|
|
H2O # |
Manf. # |
Description |
|
4472304 |
WAV9101 |
NO LONGER SOLD
9" x 9" Square, Suction Outlet Cover and Frame, white |
|
Additional color choices
are available by special order |
|
REPLACEMENT SOLUTION:
Use - R914xxx
('xxx' ?) |
View OLD Product Sheet
View OLD Installation Instructions
|
|
12" x 12" Square
Cover and Frame
VGB 2008 Compliant
*Fits: AquaStar (p/n 12xxx, pre-VGB "flat");
Pentair (#1 selling) with 3/4"deep
existing
frames and 4 screw hole pattern
*
Notice of Recall *
Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.
please visit
Manufacturer's Recall Information
for further information.
|
|

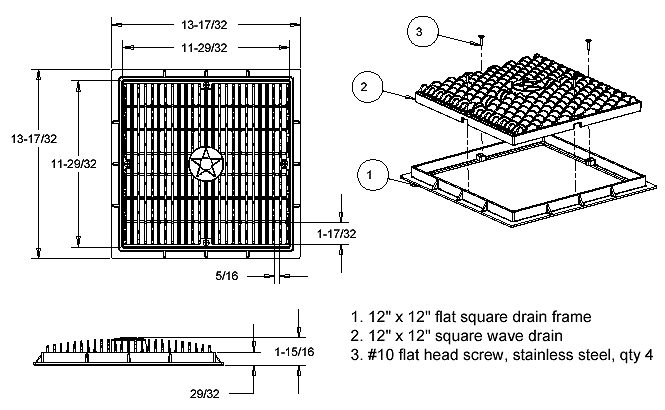

12" x 12" Square “Wave” Suction Cover and Frame |
|
Anti-Entrapment
Flow Rates
Single:
Floor/wall: 361 GPM at 1.3 fps
(Floor/wall: 400 GPM at 1.5 fps)
85.2 square inch opening
|
|
H2O # |
Manf. # |
Description |
|
4472306 |
WAV12101 |
Requires additional riser
ring
12" x 12" Square,
Suction Outlet Cover and Frame, white |
|
Additional color choices
are available by special order |
|
RETROFIT SOLUTION:
Add an additional vented riser ring - 12RRxxx
('xxx' ?)
 |
View
OLD Product Sheet
View
OLD Installation Instructions
|
|

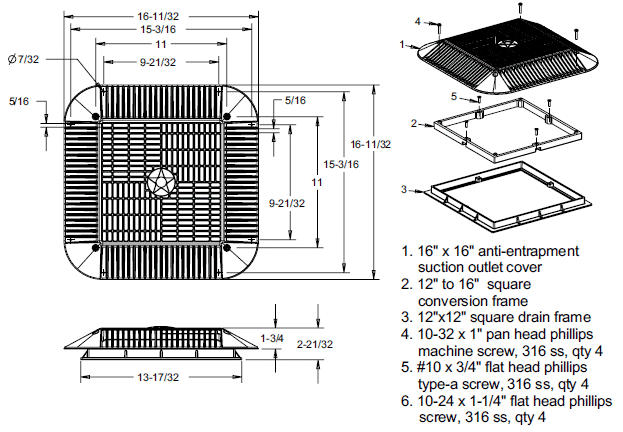

16" x 16" Retrofit Suction Outlet Cover
and
12" x 12" Square Frame.
16" x 16" Cover on 12" x 12" Frame
Also included is a 12" x 12"
adapter for retrofit installations.
Can either be used for new
installations or as a retrofit.
VGB 2008 Compliant
|
|
16" x 16" Square Suction Cover on top a 12" x 12" Frame
( Also
can be used as a retrofit to existing 12" x 12" frame ) |
|
Anti-Entrapment Flow
Rates Single:
Floor/wall 460 GPM at 1.43 fps
101 square inch opening
|
|
|
H2O # |
Manf. # |
Description |
|
4472360 |
1216101 |
16" x 16" Retrofit Suction Outlet Cover adapted to a
12" x 12" Frame,
white |
|
Additional color choices
are available by special order |
View Product Sheet
View Installation Instructions
|
|
18" x 18" Square Frame
with Four 9" x 9"Covers
VGB 2008 Compliant
*Grates fit:
AquaStar (p/n 18xxx, pre-VGB "flat");
Pentair (#1 selling) with 3/4" deep existing window grid frame and 4x4 screw
hole pattern
*
Notice of Recall *
Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.
please visit
Manufacturer's Recall Information
for further information.
|
|

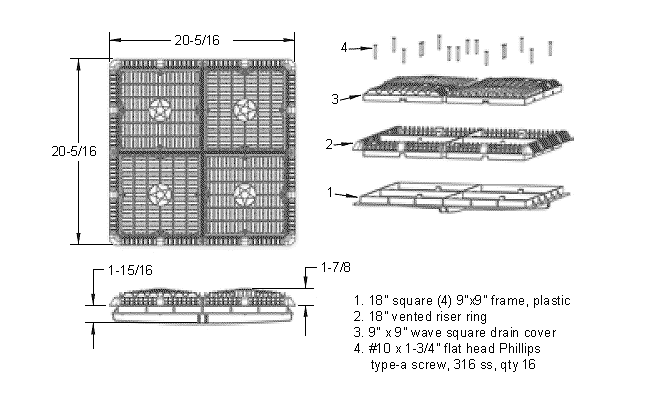

18" x 18" Square Frame with Four 9" x 9"Covers
|
|
Anti-Entrapment Flow Rates
Single:
Floor/wall: 896 GPM at 1.6 fps
(Floor/wall: 828 GPM at 1.5 fps)
176.8 square inch opening
|
|
H2O # |
Manf. # |
Description |
|
4472320 |
WAV18101 |
Requires additional riser
ring
18" x 18" Square,
Suction Outlet Cover and Frame, white |
|
Additional color choices
are available by special order |
|
RETROFIT SOLUTION:
Add an additional vented riser ring -
18RRxxx ('xxx' ?)
( 4 - 9" squares )
 |
View
OLD Product Sheet
View
OLD Installation Instructions
|
|
