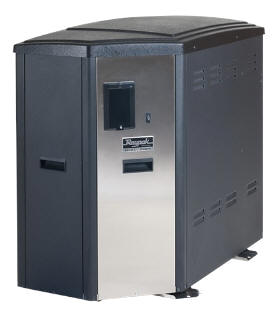

The Legacy™ line of heaters are replacement for Jandy's Lite2™ heaters. All Heaters Are Special
Order
LRZE (Electronic)
Backlit
Digital Control of pool and spa set-points.
Self diagnostics and communication
to Jandy AquaLink® RS Systems
LRZM (Millivolt)
Easy on/off temperature switch control.
Mechanical thermostat allows users to easily
set pool or spa
temperatures
Polymer headers with CPVC 2 / 2.5" universal union connections. High Flow Rates with
automatic bypass, up to 125 gallons per minute. Heater is shipped with water connections on the right side,
but can be modified in the field to provide left-side water connections.
Electronic LRZE
Legacy Natural Gas Heaters
H2O #
Manf. #
Description
2260490
LRZ125ENH
125,000 BTU, Electronic, Natural, Polymer Headers
2260495
LRZ175ENH
175,000 BTU, Electronic, Natural, Polymer Headers
2260500
LRZ250ENH
250,000 BTU, Electronic, Natural, Polymer Headers
2260505
LRZ325ENH
325,000 BTU, Electronic, Natural, Polymer Headers
2260510
LRZ400ENH
399,000 BTU, Electronic, Natural, Polymer Headers
Note ASME and Propane
heaters are also available.
Millivolt
LRZM Legacy Natural Gas Heaters
H2O #
Manf. #
Description
2260515
LRZ125MNH
125,000 BTU, Millivolt, Natural, Polymer Headers
2260520
LRZ175MNH
175,000 BTU, Millivolt, Natural, Polymer Headers
2260525
LRZ250MNH
250,000 BTU, Millivolt, Natural, Polymer Headers
2260530
LRZ325MNH
325,000 BTU, Millivolt,
Natural, Polymer Headers
2260535
LRZ400MNH
399,000 BTU, Millivolt, Natural, Polymer Headers
Note ASME and Propane
heaters are available.
Specifications:
Model
BTU
Height*
Width Base + Header =
total
Depth
Vent Size
125
125,000
41"
15-1/8" +
7-5/8" = 22-3/4"
26-3/8"
6"
175
175,000
41"
18-1/8" +
7-5/8" = 25-3/4"
26-3/8"
6"
250
250,000
41"
22-3/4" +
7-5/8" = 30-3/8"
26-3/8"
7"
325
325,000
41"
26-7/8" +
7-5/8" = 34-1/2"
26-3/8"
8"
400
399,000
41"
32-3/8" +
7-5/8" = 40"
26-3/8"
9"
*
height with low profile top, add stack
height if stack kit is needed
