Misc -
Elements |
|
*Note* Pictures represent style of heater element, actual
element may vary in appearance due to different lengths.
|
|
 |
 |
|
|
|
H2O # |
Manf. # |
Description |
|
7424420 |
001801F |

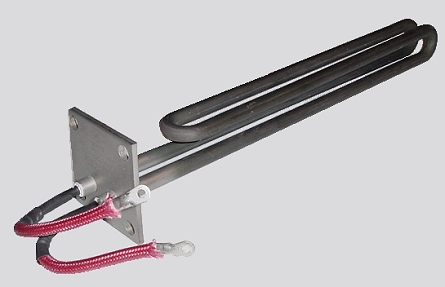

5.5 Kw, 240 V. 3"
X 3" bolt flange
Immersion Length 10-3/4"
**, (
includes gasket )
Used on Raypak
Model ELS 552-2 |
|
7424435 |
001802F |
11 Kw, 240 V. 3"
X 3" bolt flange
Immersion Length
15-3/8" **, ( includes gasket )
Used on Raypak
Model ELS 1102-2 |
|
**
Check Immersion length, maybe too long for some models |
|
|
|
|
H2O # |
Manf. # |
Description |
|
7424375 |
6-3.5-0 |

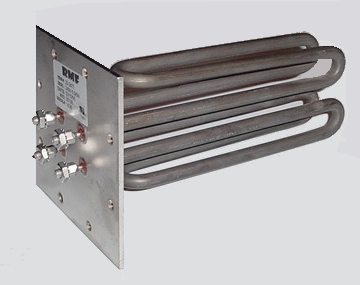

6 Kw, 240 V. Dual
elements each @ 3 Kw
4" X 4" bolt flange, Baker Hydro
Immersion Length 7", ( includes gasket ) |
|
Older original style elements
may have measured longer @ 11-1/2" |
|
|
 |
|
|
|
|
H2O # |
Manf. # |
Description |
|

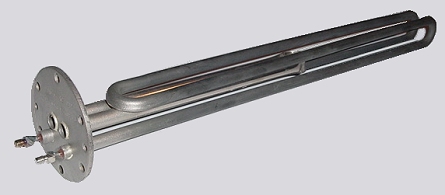

7424270 |
6-2.75-2 |
6 Kw 240 V. 2
Drywells, bolt flange
Immersion Length
15-1/2",
(
includes gasket, bolts and nuts ) |
|
|
