For Residential Use Only
( Not ADA-Compliant )

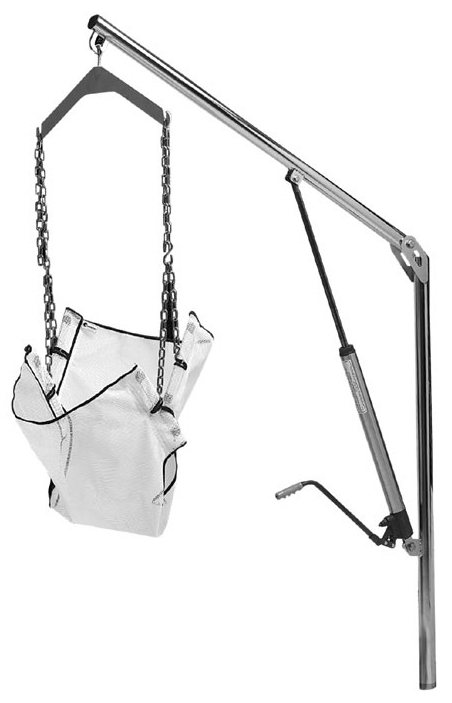

Click Picture To Enlarge
Installation Guide
|
|
The Handy Lift manual hydraulic
lifter is portable and removes from its anchor socket easily without
tools.
The Handy Lift can be used in multiple locations on a single pool with
the proper anchor socket.
The frame is made completely of 1.90” x .145” stainless steel to reduce
corrosion.
Full 360-degree rotation; 55-1/2 inch vertical lifting and lowering
range, with a 400-pound capability.
Comes complete with stainless steel anchor with a UHMW rotation sleeve.
A stainless steel cover cap is provided for a flush covering of anchor
when lift is removed.
A heavy duty mesh sling is included for easy transfer to
and from the pool.
Depending upon installation design and local codes, this model is
suitable for use on institutional and residential pools and spa’s.
|
|
|
|
H2O # |
Manf. # |
Description |
|
6254103 |
HDYL-100 |
Handy Lift, manual handicap lift,
max 400-pound capability.
Includes
stainless steel anchor with a UHMW rotation sleeve. |
|
6255176 |
27-101 |
Additional Anchor assembly
with UHMW rotation sleeve. *** |
|
***
Special Order |
More Information:
The mast and boom assemblies are constructed of 1.90” O.D. x .145”
wall (48.25mm x 3.68), type 304 polished stainless steel, and is electro
polished for protection. The hinge support bracket and the actuator support
are both made from stainless steel plate and are also electro polished.
The hanger bar, chain, and hook are all made from 316 series
stainless steel and the hanger bar is electro polished.
The Handy Manual Lift hydraulic actuator has a 19” (482.6mm) stroke
and has a nitrite coating for endurance. The easy cranking handle has a
rubber grip for a comfortable grasp.
This single post anchor assembly is specially designed to prevent
wear and allow for easy rotation. The assembly consists of a housing
constructed of stainless steel with a UHMW replaceable liner. The anchor
comes with a stainless steel grounding screw for bonding. A stainless steel
cap is provided to mount flush on the deck when the platform is removed and
an Anchor Tool is provided for cap removal.
The Chair Sling is made of heavy-duty polyester with a 1/4" mesh,
canvas-type material to provide for water drainage. It is secured to the
boom assembly with a 316 series stainless steel chain.
|
