 3/8" Barb Manifolds - WaterWay




4062796


4062810






 4062806


 4062814


3/8" barb, PVC manifolds. The Fits 3/8" I.D. tubing.

3/8" Barb Manifolds
H2O # Manf. # Description
4062796 672-0550

3 barb manifold, 1/2" Slip x 1/2" Slip with 3, 3/8" barbs
( will accommodate plug 4062822 )
4062810 672-4340

8 barb manifold, 1" Slip x 1" Spigot with 8, 3/8" barbs
( will accommodate plug 4062822 )
4062806 425-4000

6 barb manifold, 1-1/2" Slip x 1-1/2" Spigot with 6, 3/8" barbs
( will accommodate Plug  4062822 or Cap 4062830 )
4062814 672-4660

10 barb manifold, 1-1/2" Slip x 1-1/2" Spigot with 10, 3/8" barbs
( will accommodate plug 4062822 )


Plug and Cap
H2O # Manf. # Description
4062822 715-9870

Barb Plug, 3/8", use to plug unused 3/8" barb ports
Plug will work on all of the above manifolds.
4062830 715-9770

Barb Cap, 3/8", use to cap unused 3/8" barb ports
Cap will only work on manifolds 4062806 and 4062804
4062820 715-9850

3/8" Hose Plug, used to plug 3/8" hose tubing





 3/4" Barb Manifolds - WaterWay




 4062862
( 1-1/2" )


 4062850
( 1-1/2" )


4062865
( 2" )


4062874
( 2" )




 4062859
( 2" )


4062860
( 2" )


4062868
( 2" )



4062877
( 2" )

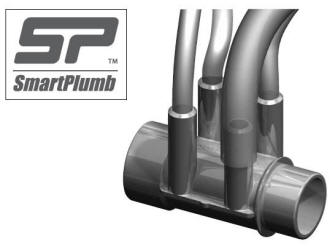

WaterWay 'SmartPlumb' 3/4" barb, PVC manifolds. Fits 3/4" I.D. tubing or 3/8" O.D tubing.

3/4" PVC Barb Manifolds
H2O # Manf. # Description
4062862 672-4490

2 barb manifold, 1-1/2 Slip x 1-1/2" Slip with 2, 3/4" barbs
4062850 672-4680

10 barb manifold, 1-1/2" Slip x 1-1/2" Spigot with 10, 3/4" barbs
4062865 672-4910

2 barb manifold, 2" Slip x 2" Spigot with 2, 3/4" barbs
4062874 672-7920

2 barb manifold, 2" Slip x 2" Slip with 2, 3/4" barbs
4062859 672-4160

4 barb manifold, 2" Slip x 2" Spigot with 4, 3/4" barbs
4062860 672-4170

4 barb manifold, 2" Slip x 2" Slip with 4, 3/4" barbs
4062868 672-4940

6 barb manifold, 2" Slip x 2" Spigot with 6, 3/4" barbs
4062877 672-7930

6 barb manifold, 2" Slip x 2" Slip with 6, 3/4" barbs
Need Tubing ? Go  HERE


Plug
H2O # Manf. # Description
4062821 715-0040

Smart Plumb Barb Plug, 3/4", use to plug unused 3/4" barb ports
