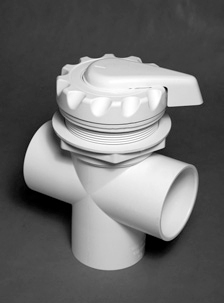

Diverter, Top Access
- WaterWay |
|
|
|
This two way Diverter mounts thru top lip of spa and is serviceable from the
top.
|
|
Diverter, Top Access |
|
H2O # |
Manf. # |
Description |
|
4816532 |
600-3057 |
Gray, 2" Top Access Dirvertor,
2" Slip Inlet ( bottom ) X 2" Slip Outlets ( sides )
|
|
Replacement Part |
|
H2O # |
Manf. # |
Description |
|
4816536 |
662-2077 |
Replacement Handle for 1" diverter valve ( not shown ) -
color Gray |
|
4816540 |
602-3527 |
Replacement Handle for 2" diverter valve ( not shown ) -
color Gray |
 |
|
Thru-Wall Thermo Wells |
|
4062902
7417827 |
|
These Thermo Wells install thru the spa shell wall.
|
|
Thermo Wells |
|
H2O # |
Manf. # |
Description |
|
4062902 |
400-4420 |
Waterway Well,
white, requires 1" hole,
probe does not
contact water
|
|
4062154 |
916-0040 |
Optional Chrome Escutcheon for above WaterWay thermo well ( not shown ) |
|
7417827 |
30388 |
Balboa,
Clear Well for
mounting temperature
sensor, requires 7/8" hole,
probe
contacts water
|
|
|
Jet
Tools |
|
|
 |
|
|
|
H2O # |
Manf. # |
Description |
|
4020069 |
SP1434T |
Hayward Spanner tool Jet Air
III jets |
|
4033921 |
30-7825 |
Hydro Air Wrench for Slimline,
Micro, Standard fittings |
|
4062914 |
218-1770A |
Waterway Poly-jet wrench
combination test plug, use for pressure testing poly jets and removing
standard internals |
|
4062910 |
218-1040 |
Waterway Mini jet tool,
escutcheon pry bar, helps remove mini fronts |
|
4062918 |
218-3000 |
WaterWay Mini Jet Installation Wrench
Tool
Installs mini jet and
removes or installs older style adjustable nozzles |
|
4062912 |
218-1500 |
WaterWay Mini Jet Installation Wrench
Tool
Installs mini jet and removes or installs newer style adjustable nozzles |
 |
 |
4062918
Tool installs mini jet and
removes or
installs older style nozzles |
4062912
Tool installs mini jet and
removes or
installs newer style
hex nozzles
Includes Hex Bar |
|
|
