 Square Suction Cover and Frame - WaterWay

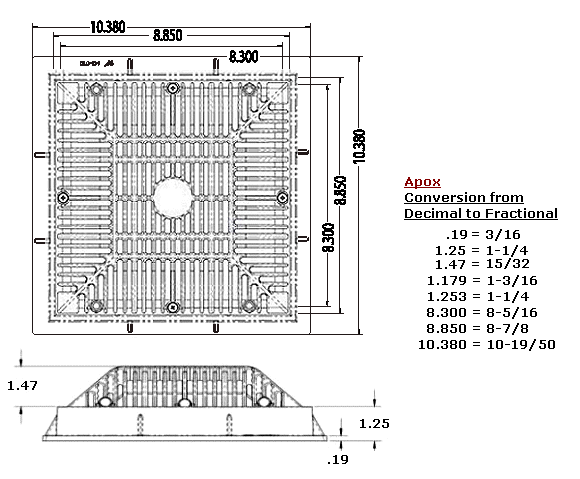

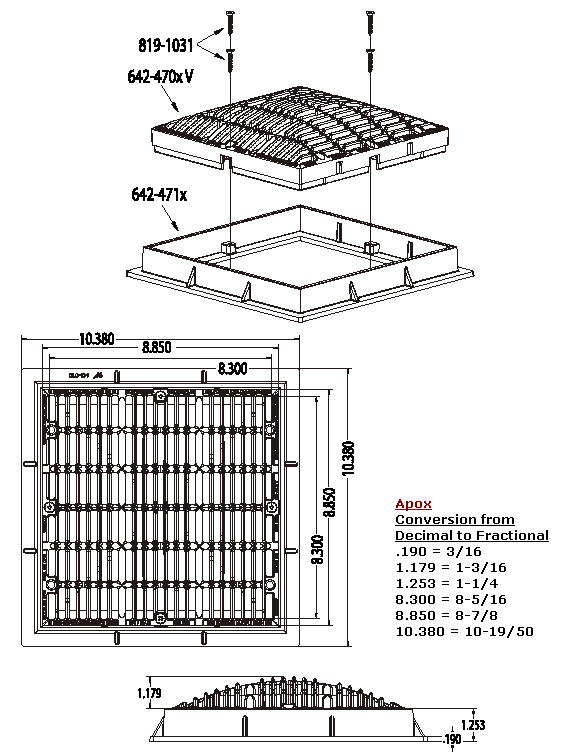

9" x 9" Square Cover and Frame

VGB 2008 Compliant




    9" x 9" Square Suction Cover and Frame

Features:

Total Open Area: 43.6 sq. in.
  Frame Size: 10.375" x 10.375"

Floor Flow Rate: 289 GPM @ 2.33 ft/sec

Wall Flow Rate: 208 GPM @ 1.59 ft/sec

Flow Rate @ 1.5 ft/sec: 203 GPM


H2O # Manf. # Description
4472290 640-4790 V

9" x 9" Anti-Entrapment Square Suction Outlet Cover and Frame, WHITE

Additional color choices are available by special order.
 Detailed Spec Sheet:

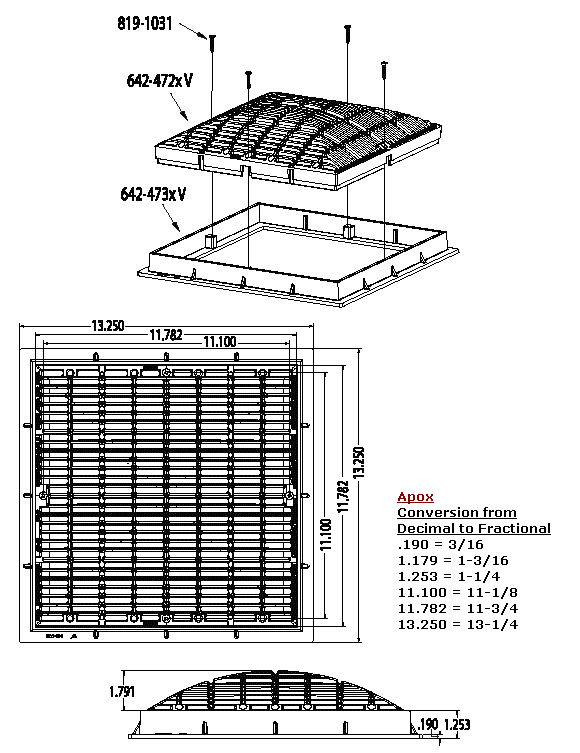

12" x 12" Square Cover and Frame

VGB 2008 Compliant



    12" x 12" Square Suction Cover and Frame

Features:

Total Open Area: 62.4 sq. in.
  Frame Size: 13.250" x 13.250"

Floor Flow Rate: 356 GPM @ 1.83 ft/sec

Wall Flow Rate: 280 GPM @ 1.44 ft/sec

Flow Rate @ 1.5 ft/sec: 292 GPM


H2O # Manf. # Description
4472296 640-4720 V

12" x 12" WHITE, Square Suction Outlet Cover and Frame

4472297 640-4729-DKG V

12" x 12" DARK GRAY, Square Suction Outlet Cover and Frame

4472299 640-4727 V

12" x 12" ( Lighter ) GRAY,  Square Suction Outlet Cover and Frame

4472298 640-4721 V

12" x 12" BLACK, Square Suction Outlet Cover and Frame

Additional color choices are available by special order.

View Product Sheet

 Directions:

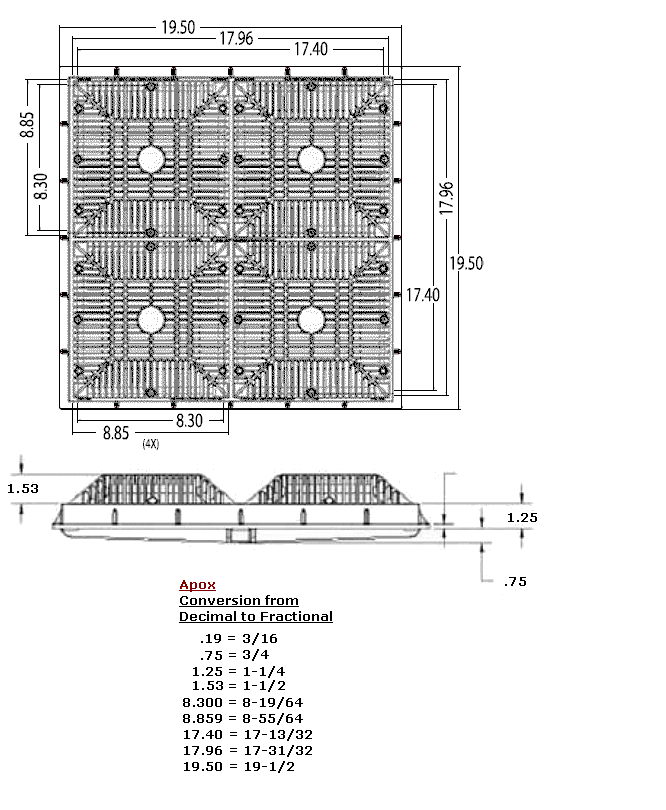

18" x 18" Square Frame
with Four 9" x 9"Covers


VGB 2008 Compliant











    18" x 18" Square Suction Cover and Frame

Features:

Total Open Area: 174.4 sq. in.
  Frame Size: 19.5" x 19.5"

Floor Flow Rate: 788 GPM @ 1.09 ft/sec

Wall Flow Rate: N/A

Flow Rate @ 1.5 ft/sec: 812 GPM


H2O # Manf. # Description
4472300 640-4770 V

18" x 18" WHITE, Anti-Entrapment Square Suction Outlet
Cover and Frame - Special Order

4472302 640-4771 V

18" x 18" BLACK, Anti-Entrapment Square Suction Outlet
Cover and Frame

4472315 640-4779DRK V

18" x 18" DARK GRAY, Anti-Entrapment Square Suction Outlet
Cover and Frame - Special Order

Additional color choices are available by special order.
 Directions:
