Tech Sheet
? 'Pitot'
|
|

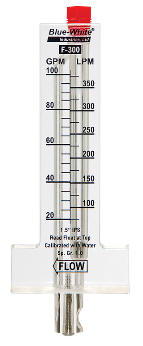

Pitot Acrylic Flow Meters are precision milled and tested to ensure accuracy
for years of dependable service.
Flow meters are Clamp-On - Insertion Mount and include clamps and
gasket.
|
|
Horizontal Schedule 40 Pipe |
|
H2O # |
Manf. # |
Description |
|
4880180 |
F-30100PR |
2-10 GPM flow 1" IPS, low flow |
|
4880201 |
F-30150P |
10-70 GPM 1-1/2" IPS |
|
4880217 |
F-30200P |
20-120 GPM 2" IPS |
|
4880225 |
F-30200PR |
15-70 GPM 2" IPS, low flow |
|
4880241 |
F-30250P |
29-150 GPM 2-1/2" IPS |
|
4880257 |
F-30300P |
45-240 GPM 3" IPS |
|
4880265 |
F-30400P |
75-420 GPM 4" IPS |
|
4880401 |
F-3003 |
Replacement gasket seal, fits
sizes thru 2-1/2" O.D. pipe size |
|
Flow meters for pipe sizes above 4" are special order items and are
available in 6" and 8" |
|
Horizontal Copper Pipe |
|
H2O # |
Manf. # |
Description |
|
4880209 |
F-30150T |
20-100 GPM 1-1/2" copper |
|
4880233 |
F-30200T |
40-150 GPM 2" copper |
|
4880249 |
F-30250T |
60-240 GPM 2-1/2" copper |
|
4880401 |
F-3003 |
Replacement gasket seal, fits sizes thru 2-1/2" O.D. pipe size |
|
Flow meters for pipe sizes
above 4" are special order items and are available in 6" and 8" |
|
Vertical Schedule 40 Pipe |
|
H2O # |
Manf. # |
Description |
|
4880280 |
D-30200P |
40-150 GPM 2" - Flow Direction = DOWN |
|
4880401 |
F-3003 |
Replacement gasket seal, fits sizes thru 2-1/2" O.D. pipe size |
|
Please note direction of flow |
click on image to enlarge illustration of typical
horizontal install
|
