 Channel Drain Suction Cover and Sump - AquaStar

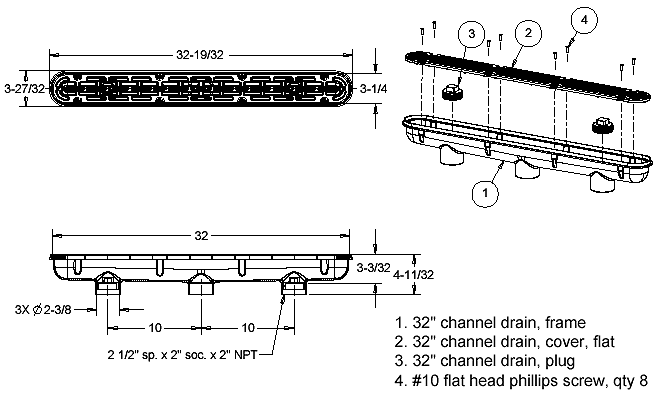

32" Channel Drain Flat Grate
Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump

VGB 2008 Compliant







   32" Channel Drain ( Flat Grate ) Suction Outlet Cover
and Three-Port Manufactured Sump



Three ports: bottom 2-1/2" OD,
2.0" ID S/S;
inside 2.0" threaded FPT;
two 2" threaded plugs included


Anti-Entrapment Flow Rates Single:
Floor: 316 GPM at 3.9 fps
Wall: 208 GPM at 2.6 fps
 25.9 square inch opening


Anti-Entrapment Flow Rates Dual:
Floor: 632 GPM at 3.9 fps
Wall: 416 GPM at 2.6 fps
Floor/wall: 242 GPM at 1.5 fps


H2O # Manf. # Description
4472301 32CDFL101

32" Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump, WHITE

4472307 32CDFL103

32" Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump, LIGHT GRAY

4472309 32CDFL105

32" Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump, DARK GRAY

Additional color choices are available by special order

View Product Sheet
View Installation Instructions

 Detailed Spec Sheet:

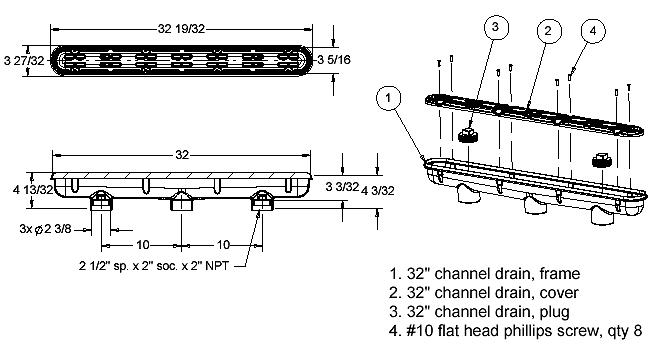

32" Channel Drain Anti-Vortex
Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump

VGB 2008 Compliant






   32" Channel Drain Anti-Entrapment (Anti-Vortex) Suction Outlet Cover
and Three-Port Manufactured Sump



Three ports: bottom 2-1/2" OD,
2.0" ID S/S;
inside 2.0" threaded FPT;
two 2" threaded plugs included


Anti-Entrapment Flow Rates Single:
Floor: 236 GPM at 3.4 fps
Wall: 136 GPM at 1.9 fps
 22.6 square inch opening


Anti-Entrapment Flow Rates Dual:
Floor: 472 GPM at 3.4 fps
Wall: 272 GPM at 1.9 fps
Floor/wall: 211 GPM at 1.5 fps


H2O # Manf. # Description
4472303 32CDAV101

32" Channel Drain Anti-Vortex Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump, white

Additional color choices are available by special order

View Product Sheet
View Installation Instructions

 Directions:



 Channel Drain Suction Cover and Sump -  Vinyl / Fiberglass  - AquaStar

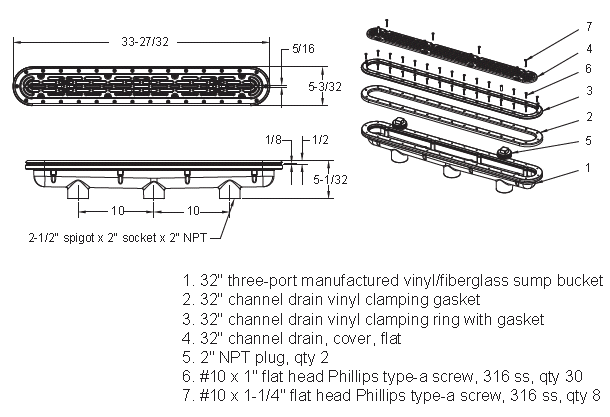

32" Channel Drain Flat Grate
Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump
for
Vinyl & Fiberglass

VGB 2008 Compliant






   32" Channel Drain Anti-Entrapment (Anti-Vortex) Suction Outlet Cover
and Three-Port Manufactured Sump
for Vinyl & Fiberglass



Three ports: bottom 2-1/2" OD,
2.0" ID S/S;
inside 2.0" threaded FPT;
two 2" threaded plugs included


Anti-Entrapment Flow Rates Single:
Floor: 316 GPM at 3.9 fps
Wall: 208 GPM at 2.6 fps
 25.9 square inch opening



Permanently attached gasket
reduces gasket alignment problems.

H2O # Manf. # Description
4472312 32CDFLV101

32" Channel Drain Flat Grate Anti-Entrapment Suction Outlet Cover and Three-Port Manufactured Sump, white

Additional color choices are available by special order

View Product Sheet
View Installation Instructions

 Directions:
