Slide Series
Includes Spaside Control
and Adapter Plate for Retrofits
Hydroquip's
revolutionary Smart Cords
light up when energized, indicating when components such as pumps, blowers,
ozonators, etc. have power.
|
|
This Standard Control System is HydroQuip's most popular control system
and features a
mid-size control box and the unique Slide Series Heater feature. Another
great feature is the
Visual Diagnostics, “VDS”. VDS is a user friendly system to aid in
the diagnosis of equipment
related issues. Indicator lights inform you of wiring or equipment
problems which make it easy
enough for anyone to troubleshoot.

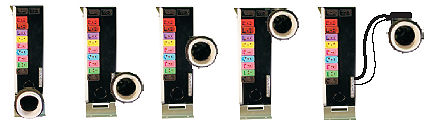

The heater can be moved from the bottom to the top edge of the box or
can be removed entirely
and run detached from the spa control box. Control can be run on 120 or
240 volts.
Heater is 1.325 kW on 120V or 5.5 kW on 240V.
Unit can operate:
|
|
 Circuit 1 - One 2-speed
Pump ( 120V / 240V )
Circuit 2 - One 1-speed
Pump ( 120V / 240V )
Circuit 3 - One Blower ( 120V / 240V )
Ozone Circuit ( 120V / 240V
)
Circ/Aux Circuit ( 120V / 240V
)
12v Light Circuit |
Standard Control System |
|
H2O # |
Manf. # |
Description |
|
2532015 |
CS6239-US |
Slide Series Standard Control
System, 120V / 240V, 1.325 / 5.5 kW |
|
Box
Contents: |
Control w/ heater - Spaside
panel - Spaside Adapter Plate - Thru-wall Thermowell
Equipment Cords with
lighted plugs ( Smart Cords ) - Operation & Instruction Manual |
|
