 SuperFlo Pumps - Pentair






Data Sheet
Owner's Manual
View Parts Breakdown

Link to Pentair Pool Product's Website





Efficient, quiet, rugged and versatile
The SuperFlo® pumps are specifically designed to be the best choice for a variety of inground pools and features thick walled body parts, a heavy-duty 56 square flange motor, and highly engineered hydraulics. SuperFlo's silent running capability and small footprint allow it to easily drop into a compact equipment pad.

Features:

SuperFlo by Pentair Pool Products® is a direct replacement for the Hayward® Super Pump®
Extremely quiet operation
Unionized fittings ( 1.5 in. internal slip and 2 in. external slip - also called 2" Spigot  or  1-1/2" Slip )
Cam and Ramp™ Lid
Heavy-duty, high service factor 56 square flange motor
Integral volute and pot reduce hydraulic noise


1 Speed,  SuperFlo

H2O # Manf. # HP Voltage Description
0850390 340036

1/2

115 / 230 v

1/2 HP, 1 speed

0850395 340037

3/4

115 / 230 v

3/4 HP, 1 speed

0850400 340038

1

115 / 230 v

1 HP, 1 speed

0850405 340039

1-1/2

115 / 230 v

1-1/2 HP, 1 speed

0850410 340040

2

115 / 230 v

2 HP, 1 speed

0850415 340041

2-1/2

230 v

2-1/2 HP, 1 speed ***

   *** Special Order



2 Speed,  SuperFlo

H2O # Manf. # HP Voltage Description
0860420 340042 1 230 v

1 HP, 2 speed ***

0860425 340043 1-1/2 230 v

1-1/2 HP, 2 speed ***

0860430 340044 2 230 v

2 HP, 2 speed ***

  *** Special Order




Specifications:  1 Speed,  SuperFlo
 H2O # Manf. # Speeds  HP SF SFHP Voltage  Amps Length

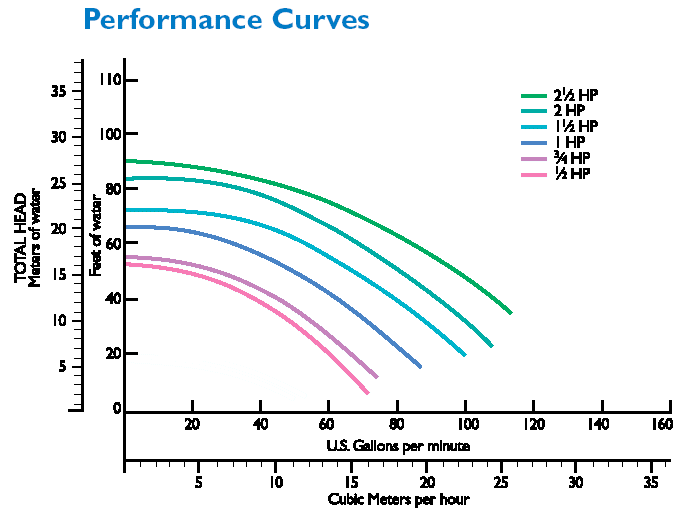

Pump Curve

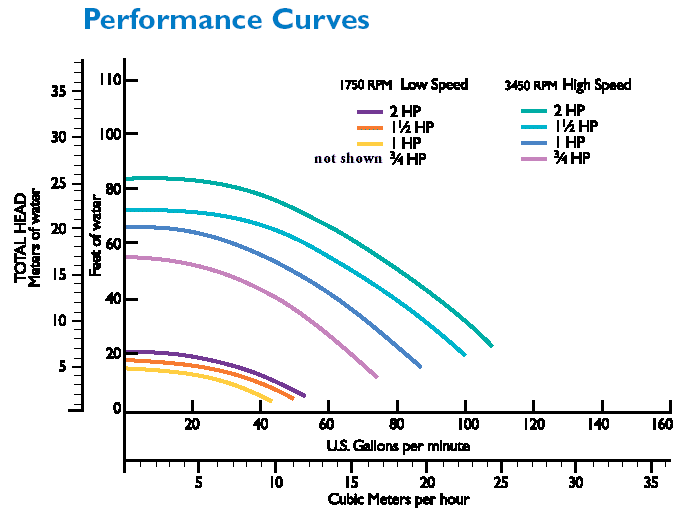

Flow Chart for dual speed pumps
Click to Enlarge

0850390 340036 1

1/2

1.95 .95

115 / 230 v

10.8 / 5.4 no data
0850395 340037 1

3/4

1.25 .95

115 / 230 v

10.8 / 5.4 no data
0850400 340038 1

1

1.25 1.25

115 / 230 v

14.2 / 7.1 23-3/4"
0850405 340039 1

1-1/2

1.10 1.65

115 / 230 v

16.0 / 8.0 no data
0850410 340040 1

2

1.10 2.20

115 / 230 v

22.4 / 11.2 no data
0850415 340041 1

2-1/2

1.04 2.60

230 v

11.5 no data
-


Specifications:
2 Speed,  SuperFlo
 H2O # Manf. # Speeds  HP SF SFHP Voltage  Amps Length Pump CurveFlow Chart for dual speed pumps
Click to Enlarge
0860420 340042 2 1 1.25 1.25 230 6.0 / 2.3 no data
0860425 340043 2 1-1/2 1.10 1.65 230 7.8 / 3.0 no data
0860430 340044 2 2 1.10 2.20 230 10.0 / 3.5 no data

-






 SuperMax Pumps - Sta-Rite by Pentair






Data Sheet
Owner's Manual





Efficient, quiet, rugged and versatile

The SuperMax® pump from Sta--Rite features a commercial grade, 56 square flange motor for top performance in residential swimming pools. SuperMax is a superior drop-in replacement for Super Pump. The advantage for consumers is its quiet operation and economical performance. The benefit to pool professionals is its ease of installation ( union fittings are included and the pump easily drops in place ).


Features:

SuperMax by Sta-Rite® is a direct replacement for the Hayward® Super Pump®
Single and two-speed models ranging from 1/2 to 2-1/2 Hp
Unionized fittings ( 1.5 in. internal slip and 2 in. external slip - also called 2" Spigot  or  1-1/2" Slip )
Cam and Ramp™ Lid
Exterior thermoplastic resin withstands temperature extremes and delivers long life


2 Speed,  SuperMax

H2O # Manf. # HP Voltage Description
0860450 PHK2RAY6G-104L 2 230 v

2 HP, 2 speed

We currently are stocking this pump in only one model. All other models are non-stocking special order.
Call for information on other models. The SuperMax is the basically the same pump as the SuperFlo listed above,
but in black.


Specifications:  2 Speed,  SuperMax

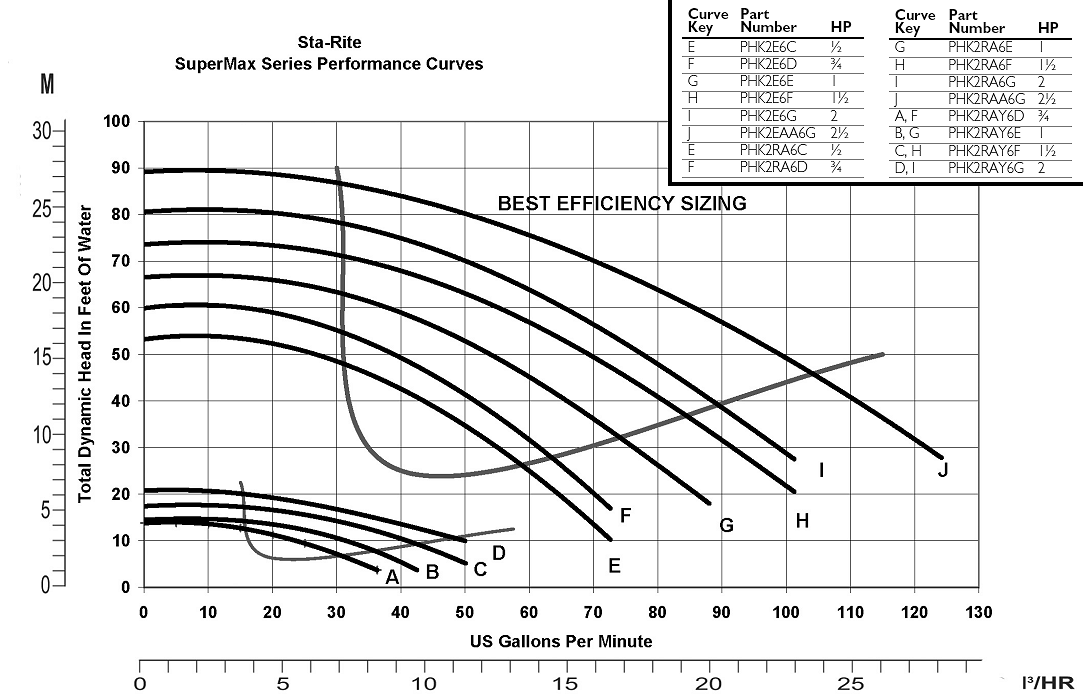

 H2O # Manf. # Speeds  HP SF SFHP Voltage  Amps Length Pump CurveFlow Chart for dual speed pumps
Click to Enlarge
0860450 PHK2RAY6G-104L 2 2 1.10 2.20 230 10.0 / 3.5 no data
