Value Control System
Quick reference card

Initial Start-up
Your spa control has been specifically designed so that by simply connecting the spa
to its properly grounded source, the spa will function properly and safely at a set
temperature of 100°F.

Temperature Adjustment (Range: 40°F-104

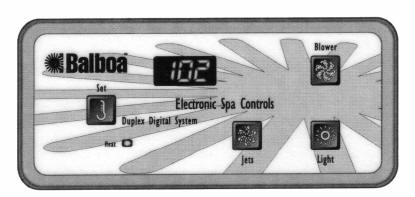

To display the set temperature, press the    pad once.

To change the set temperature, press the pad a second time before the LCD stops
flashing.
Each press of the   pad will continue to either raise or lower the set temperature.

( While decreasing the temperature in Standard mode, the display will show the decreasing
temperature by 1 ° until 80°F is reached; at that time the display will show the decreasing
temperature by 5° until it reaches, 40°E )


If the opposite direction is desired, release the pad and let the display revert to the
actual water temperature. Press the pad to display the set temperature, and again to
make the temperature change in the desired direction.

After three seconds, the LCD will automatically display the current spa temperature.

Jets
Press the pad to turn on the low speed of the pump. Press the pad again to
turn on the high speed of the pump. Press the pad a third time to turn off the pump.
If left on, the low speed will turn off after 4 hours; the high speed will turn off after
30 minutes.

Blower
Press the pad to turn the blower on and off.  If left on, the blower will
automatically turn off after 30 minutes.

Light
Press the pad to turn the spa light on and off.  If left on, the light will
automatically turn off after 4 hours.

Preset Filter Cycles
Your spa will automatically filter itself twice a day. The first filter cycle will start one
minute after the spa is powered up. The second filter cycle will begin twelve hours
later. Filter cycle duration settings are 2, 4, 6, 8 or 12 hours.
The default filter cycle duration is 2 hours. Press then to program.
Press to adjust.  Press to exit programming.

The low speed of the pump and the ozone generator will run for the duration of
the cycle. The blower will run briefly at the start of the first cycle to clean out the
air channel.

Freeze Protection
If the high-limit sensor detects 40°F at the heater, then the pump automatically
activates to provide freeze protection. The equipment stays on until the sensor detects
45 °F at the heater. Freeze protection is enabled regardless of the spa status. In
colder climates, an optional additional freeze sensor is used to protect against freeze
conditions. See your dealer for details.


Display Messages

   Overheat Protection (Spa is shut down)

DO NOT ENTER THE WATER. Overheating may occur if the filter cycle is
set too long. If the spa water has reached 112 °F, remove the spa cover to
cool the water. When the water cools to 110°F, the spa should reset itself.
If the high-limit sensor detects a temperature of 118 °F at the heater, the spa
will shut down. If this occurs, you must wait for the water to cool to 110°F,
then press any button to reset the spa. If the spa will not reset, shut off the
power to the spa and call your dealer or service organization.


    Flow Switch Detection

A pressure switch is not working. Call your dealer or service organization.

 Flow (Spa is shut down)

The high-limit sensor or water temperature sensor is not working. Call your
dealer or service organization.



Warning! Shock Hazard! No User Serviceable Parts.
Do not attempt service of this control system. Contact your dealer or service organization for assistance. Follow all owner's manual power connection instructions. Installation must be
performed by a licensed electrician and all grounding connections must be properly installed.



 OCR and picture enhancement by: www.h2oco.com


P/N DCVALUErevI 08/06/02
