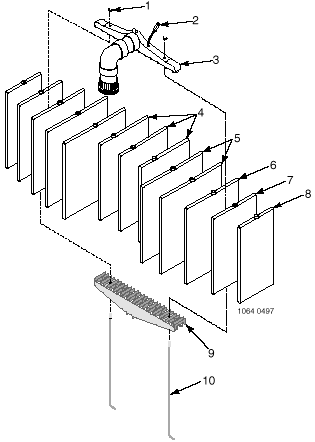

S8D110 Filter Element Assembly Sta-rite System:3 D.E. |
|||||
|
Description |
Qty |
H2O # |
Vender # |
Unicel # |
Key No. |
| Wing Nut | 2 | 9874583 | 35402-0074 | - |
1 |
| Air Bleed Assembly | 1 | 9874943 | 24800-0120 | - |
2 |
| Manifold | 1 | 9874960 | 24800-0101 | - |
3 |
|
Grid 16 1/2" x 18" offset port |
3 | 1849242 | 23900-1172 | FG-3916 |
4 |
|
Grid 19 5/16" x 18" center port |
4 | 1849250 | 23900-0144 | FG-3019 |
5 |
|
Grid 16 1/2" x 18" center port |
2 | 1849238 | 23900-0033 | FG-3016 |
6 |
|
Grid 15 3/16" x 18" center port |
2 | 1849234 | 23900-1174 | FG-3015 |
7 |
|
Grid 11" x 18" center port |
2 | 1849210 | 23900-0032 | FG-3011 |
8 |
| Element Grid Support | 1 | 9874961 | 23901-0350 | - |
9 |
| Rod | 2 | 9874275 | 23900-0039 | - |
10 |
