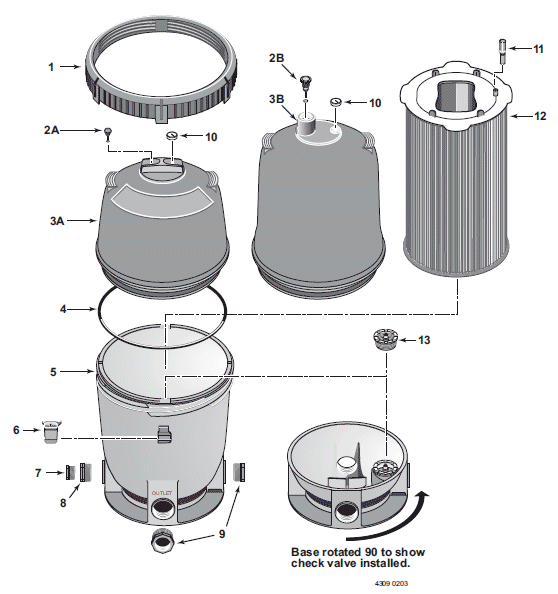

No.
|
Manf #
|
H2O #
|
Description
|
|
1 |
27001-0054 |
-------- |
Posi-Lok™ ring |
|
2A |
25010-0200 |
9874506 |
Air release valve assembly |
|
2B |
24206-0103S |
-------- |
Air release valve assembly
(PLM300) |
|
3A |
27001-0020S |
-------- |
Tank shell upper half |
|
3B |
27001-0030S |
-------- |
Tank shell upper half
(PLM300) |
|
4 |
27001-0061S |
9094401 |
Tank O-ring -
Non-O.E.M Substitute - O-484 Aladdin |
|
5 |
27001-0009S |
-------- |
Tank shell lower half |
|
6 |
27001-0051 |
-------- |
Safety latch for ring |
|
7 |
27001-0022S |
-------- |
1-1/2” NPT plug w/O-ring |
|
8 |
24900-0510 |
-------- |
Adapter fitting |
|
9 |
U78-820P |
5042680 |
2” Threaded x 1-1/2” Threaded Pipe
Reducer
-
2 required
- not O.E.M |
|
10 |
15060-0000T |
7481135 |
Pressure gauge
7481135 back mount or 7481210 bottom mount |
|
11 |
24800-0121 |
-------- |
Air bleed assembly |
|
12 |
27002-0100S |
1450635 |
Filter module (PLM100) |
|
12 |
27002-0125S |
1450637 |
Filter module (PLM125) |
|
12 |
27002-0150S |
1450639 |
Filter module (PLM150) |
|
12 |
27002-0175S |
1450641 |
Filter module (PLM175) |
|
12 |
27002-0200S |
1450643 |
Filter module (PLM200) |
|
12 |
27002-0300S |
1450645 |
Filter module (PLM300) |
|
13 |
27001-0130S |
-------- |
Spring check valve |
|
|
|
For information on decals / labels, see
owners manual. |
|
last update - November, 2011
|
