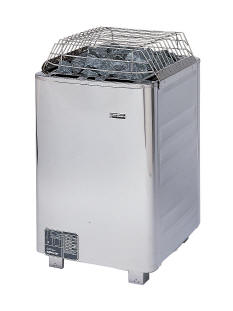

Floor model heater. Size: 17"w x 20"d x 26"h. Uses wall control and
contactor.
Long lasting stainless steel elements.
Deluxe polished chrome
stainless steel interior and exterior.
Welded unibody casing with
compressed metal design.
Available in 9, 10.5, 12, and 15 KW sizes.
H2O #
Manf. #
Description
7245177
FLC-90
FLC Sauna heater 9 KW 230 volts, no controls
7245184
FLC-105
FLC Sauna heater 10.5 KW 230 volts, no
controls
7245191
FLC-120
FLC Sauna heater 12 KW 230 volts, no controls
7245198
FLC-150
FLC Sauna heater 15 KW 230 volts, no controls
Specifications - FLB Heater
Heater
Model
Min-Max Cu.
Ft. Room
Watts
Amps
Voltage
Phase
Control
Model
Contactor
Model
FLC90
300-525
9,000
37.5
230
1
F2T
FL404
FLC105
390-600
10,500
43.8
230
1
F2T
FL404
FLC120
440-750
12,000
50
230
1
F2T
FL404
FLC150
560-1050
15,000
62.5
230
1
F2T
FL404
Sauna Controls
- Finlandia
7245302
Finlandia Exterior Wall Mounted Controls, F-1T and F-2T controls
include: thermostat, 60 min. timer, light switch, and indicator light.
Made in U.S.A. For use with FIN or FLC heaters.
F-1T measures 3-3/4" Wide
x 9-1/4" Height x 3-1/2" Deep F-2T measures 3-3/4" Wide x 9-1/4" Height x 2-1/2" Deep
H2O #
Manf. #
Description
7245302
F-1T
F-1T Sauna control with timer
7245306
F-2T
F-2T control, no timer
Sauna
Contactors - Finlandia
Finlandia Contactors, Relay required for heaters 8 KW and over when
wall control is used. Made in U.S.A.
FL-402
measures 6" Wide x 8" Height x 4" Deep FL-404 measures 8" Wide x 12" Height x 4" Deep
