3/4"
Inlet X 3/4"
Outlet, Natural Gas, Millivolt
Used on Pentair Mini-Max
9892260
Laars
R0096400
3/4"
Inlet X
3/4"
Outlet, Natural Gas,
Millivolt, KIT
Used on Jandy, Teledyne Laars
Kit includes: coiled pilot tubing and valve
mounting bracket
Propane Gas, Millivolt, Honeywell
H2O #
Manf. #
Description
9764751
Pentair
072119
3/4"
Inlet X 3/4"
Outlet, Propane Gas, Millivolt
Used on Pentair Mini-Max
Millivolt
Robertshaw
Natural Gas, Millivolt, Robertshaw
H2O #
Manf. #
Description
9764121
Pentair
471436
1/2"
Inlet X 3/4"
Outlet, Natural Gas,
Millivolt
*Note* Valve
comes with reducing bushing to change outlet to 1/2"
which is used on the Pentair Mini-Max 100
9833349
Raypak
003898F
3/4"
Inlet X
3/4"
Outlet, Natural Gas,
Millivolt, KIT
Kit is used to convert from Honeywell gas
valve to Robertshaw gas valve on Raypak heaters.
Kit includes: 2 - 3/4" to 1/2" gas reducing bushing and coiled pilot
tubing and valve mounting bracket.
Millivolt
Robertshaw
Natural Gas, Millivolt, Robertshaw
H2O #
Manf. #
Description
9892168
Laars
R0027700
3/4"
Inlet X
3/4"
Outlet, Natural Gas,
Millivolt, KIT

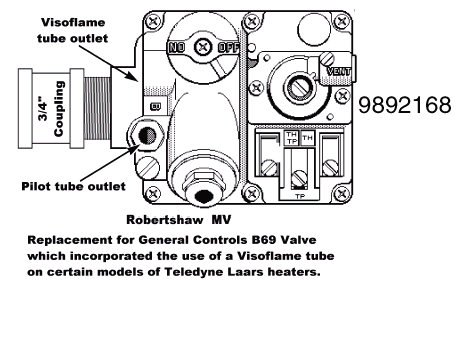

Replacement for General Controls B69 valve which incorporated the use of
a Visoflame tube on certain models of Teledyne Laars heaters. Valve
comes assembled with 3/4" coupling and pipe nipple installed along with
brass ferrules for pilot tube and Visoflame tube connection. (click
image for more info)
3/4"
Inlet X 90
Degree 3/4"
Outlet, Natural Gas,
24v IID
Used on Mini-Max NT, natural
24v IID
Honeywell
Natural Gas, 24v, IID, Honeywell
H2O #
Manf. #
Description
9764331
Pentair
073998
3/4"
Inlet X 3/4"
Outlet, Natural Gas,
24v IID
Used on Pentair Mini-Max
Used on Jandy, Teledyne Laars Heaters
9833346
Raypak
003900F
3/4"
Inlet X
3/4"
Outlet, Natural Gas,
24v IID, KIT
Kit is used to convert from Robertshaw gas
valve to Honeywell gas valve on Raypak heaters..
Kit includes: 2 - 3/4" to 1/2" gas reducing bushing and coiled pilot
tubing and valve mounting bracket.
9892263
Laars
R0317100
3/4"
Inlet X 3/4"
Outlet, Natural Gas,
24v IID,
Includes mounting bracket
Used on Pentair Mini-Max
Used on Jandy, Teledyne Laars Heaters
9892721
Laars
R0336800
3/4"
Inlet X 3/4"
Outlet, Natural Gas,
24v IID, KIT
Kit includes: 3/4" gas street Elbow
Used on Jandy, Teledyne Laars LX / LT heaters
PropaneGas, 24v, IID, Honeywell
H2O #
Manf. #
Description
9764338
Pentair
073999
3/4"
Inlet X 3/4"
Outlet, Propane Gas, 24v IID
Used on Pentair Mini-Max
24v DSI
Robertshaw
Natural Gas, 24v, DSI, Robertshaw
H2O #
Manf. #
Description
9764065
Pentair
471088
1/2"
Inlet X 1/2"
Outlet, Natural Gas,
24v, DSI ( direct spark ignition )
Used on Pentair Mini-Max 75 and 100, includes bracket
