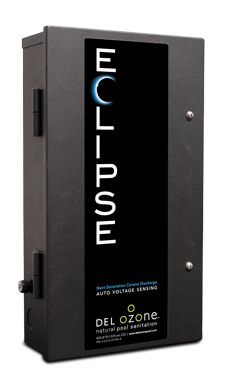

The Corona Discharge Eclipse™ series produces up to five times the concentration of ozone produced by a UV generator. The unit is connected to the main circulation system so each time the main pump turns on, ozone is automatically introduced into the water. Reducing chlorine use by 80-90%, the Eclipse™ not only saves time and money but it gives one the peace of mind that you're doing your part to reduce your environmental impact.


Eclipse 1 corona discharge generator for pools 7,000 to 25,000 gallons,
Auto Voltage Sensing,
0.25 grams per hourr ***

Eclipse 20 corona discharge generator for pools 15,000 to 50,000 gallons,
Auto Voltage Sensing,
0.5 grams per hourr ***

Eclipse 40 corona discharge generator for pools 25,000 to 100,000 gallons,
Auto Voltage Sensing,
1.0 grams per hour ***

Parts bag for the Eclipse 1, 2 & 4 ( designed for a single speed pump )
Includes:
Injector Manifold  Ozone tubing  Ozone Check Valve
Screws for mounting Eclipse to wall  Bubble Ball style ozone flow meter
Water Check Valve ( used for installations which are above pool waterline )

Adjustable bypass valve
for single speed applications.

The ultimate sanitation solution for in-ground pools. The TOTAL ECLIPSE generator is designed to recirculate pool water with its own pump and inject ozone 24 hours a day. The TOTAL ECLIPSE installs independent of pool equipment and will operate regardless of whether your pool system is on or off. Plumbs off the main circulation pipe after the filter and before the heater. Includes parts bag.


Total Eclipse corona discharge generator for pools up to 25,000 gallons.
 includes built in injector and circulation pump and parts bag.
115 volts, 0.5 grams per hour

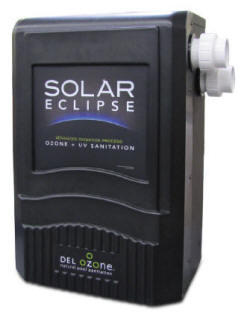

Solar Eclipse Advanced Oxidation Process (AOP) for Residential Pools

Application: Inground pools up to 50,000 gallons as primary sanitation. May be installed during construction or after installation integrated into other pool equipment using standard installation procedures.

Description: Combines on board Plasma Gap ozone generator (patent pending) plus germicidal UV light; delivers hydroxyl free radicals typical of AOP systems into return water through main circulation system; installation is the same as standard DEL Ozone ozone systems.

Wall or post mounted
2-inch inlet and outlet plumbing
High efficiency Plasma Gap ozone generator
Germicidal UV light module by Trident
220/240 volt system integrates with pump circuit
Hydroxyl free radical injection via variable-speed compatible Mazzei venturi injector
Operates under vacuum for effectiveness and safety
Mixing Degas Vessel available

Solar Eclipse Ozone + UV for pools up to 50,000 gallons.
Inlet and Outlet = 2" PVC Unions - 240 VAC, 60 HZ - 0.4 Amps
Rated for Outdoor Installations.

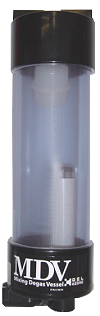

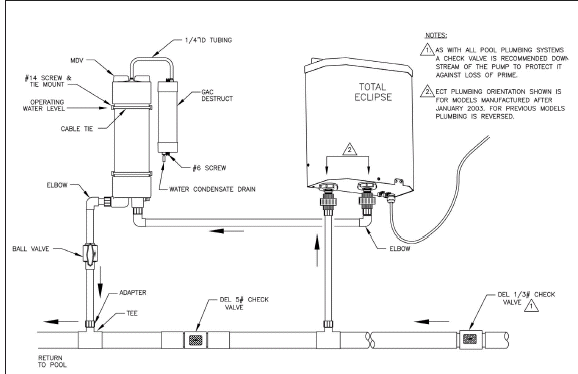

Use this Mixing DEGAS Vessel (MDV ) to eliminate ozone off-gassing in a swimming pools and spas. By eliminating ozone off-gas, the MDV prevents bubbles from disrupting the surface of the pool or from gathering under the pool cover. It also eliminates the potential of ozone reacting with the pool and spa components such as covers, fittings or pillows. With this method of injecting ozone into the system you can oversize the ozone so that you can achieve maximum chemical reduction.


Mixing DEGAS Vessel for Total Eclipse
( Total Eclipse ozone unit is sold separately )

Del Mazi 978 injector, 1" mip x 3/8 barb x 1" mip

Del Mini Injector, 3/4" mip x 1/4" barb x 3/4" mip

Del Injector, 1-1/2:" mip x 1/4" barb x 1-1/2:" mip
( Has a ozone check valve incorporated into the barb adapter )

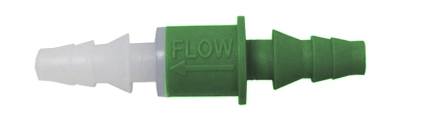

1/4" barbed ozone check valve, one piece, spring loaded,
for ozone supply

Tubing Flo Control Clamp, used to reduce ozone flow through tubing.

1/4" Plastic Hose Clamp

1/2" mip X 1/4" barb adapter - on units produced before 2004

3/4" fip X 1/4" barb adapter, does not include check valve
