Thera'ssage Spa Jet
- HydroAir by Balboa |
|
HydroAir
by
|
Thera’ssage Jet Assembly |
|
H2O # |
Manf. # |
Description |
|
4033255 |
16-5550WHT |
Thera’ssage white jet assembly,
stacked 1" air X 1-1/2" water,
requires 7-5/8" flat area for installation and a 5-7/8" hole
size |
|
4033256 |
16-5550GRY |
Thera’ssage gray jet assembly,
stacked 1" air X 1-1/2" water,
requires 7-5/8" flat area for installation and a 5-7/8" hole
size |
|

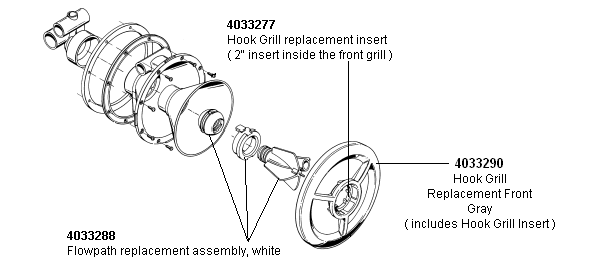

Replacement Parts
|
|
H2O # |
Manf. # |
Description |
|
4033277 |
56-5511T |
Hook Grill
replacement insert |
|
4033288 |
56-5560WHT |
Flowpath replacement
assembly, white |
 |
|
|
VSR Spa Jet
- HydroAir by Balboa |
|
|
VSR Jet |
|
H2O # |
Manf. # |
Description |
|
4033299 |
16-5775WHT |
White, variable speed with rotation
3/8" barb for air X 3/4", 90’ degree elbow for water, 3-3/8" hole size
|
|
4033300 |
16-5775GRY |
Gray, variable speed with rotation
3/8" barb for air X 3/4", 90’ degree elbow for water, 3-3/8" hole size
|
Replacement Parts |
|
H2O # |
Manf. # |
Description |
|
4033310 |
16-5713MSS |
Stainless Steel Trim Ring,
for old style VSR |
|
4033321 |
16-5715MSS |
Stainless Steel Escutcheon,
for old style VSR |
|
4033332 |
16-5720WHT |
White Rotating Set,
replacement nozzle only,
for old style VSR |
|
4033333 |
16-5720GRY |
Gray Rotating Set, replacement
nozzle only,
for old style VSR |
|
4033335 |
16-5773GRY |
Gray Rotating Set, replacement
face / nozzle assembly, for new style VSR |
|
4033339 |
16-5773WHT |
Gray Rotating Set, replacement
face / nozzle assembly, for new style VSR |
|
|
Butterfly
Diverter Spa Jet
- HydroAir by Balboa |
1" air X
1-1/2" ID or 2" OD water
Built in valve adjusts easily from face plate, diverts
water flow with pump on or off.
3-1/4" hole size
|
Butterfly Diverter Jet |
|
H2O # |
Manf. # |
Description |
|
4033343 |
10-5000WHT |
2-way, White
|
|
4033347 |
10-5000GRY |
2-way, Gray
|
|
4033354 |
10-5050WHT |
3-way, White
|
|
4033350 |
10-5050GRY |
3-way, Gray
|
|
4033365 |
10-5010MSS |
Optional Stainless Steel Escutcheon |
|
|
Whirlpool
/ Swim Spa Jet
- HydroAir by Balboa |
|
1-1/2" Water
X 1/2" Air
Max Output: 94 GPM, 13 psi
Uses hole saw size 3-3/8" |
Whirlpool / Swim Jet |
|
H2O # |
Manf. # |
Description |
|
4033377 |
16-5759WHT |
Whirlpool / Swim Jet, white, with 1" nozzle,
3-3/8" hole saw size, 94 GPM Max |
|
4033379 |
16-5759GRY |
Whirlpool / Swim Jet, gray, with 1" nozzle,
3-3/8" hole saw size, 94 GPM Max |
|
The previous version of this
jet used a 3-5/16" hole saw verses 3-3/8" and had a max GPM of 97 GPM
verses 94 GPM. |
Swim Jet Installation Instructions
|
|
