 Gunite Jet - Extended Venturi

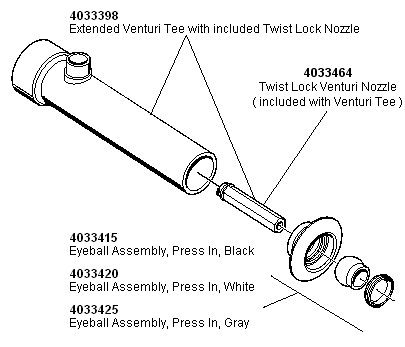

To make up a complete Jet Assembly,
order the individual components as
illustrated in the picture on the right.



1-1/2"  ID  or  2" OD for water
X
1/2"  ID or 3/4" OD for AIR

11" long

Output: 22-25 GPM, 18 psi


Nozzle must be within 1" of eyeball
for optimum performance






For a complete jet, order the Venturi Tee and your choice of Eyeball Assembly.


Parts Individually - Build A Jet
H2O # Manf. # Description
4033398 212-3330

Gunite Jet Extended Venturi Tee with Twist Lock Nozzle

4033415 50-3420BLK

Eyeball Assembly Only, Press In, Black

4033420 50-3420

Eyeball Assembly Only, Press In, White

4033425 50-3420GRY

Eyeball Assembly Only, Press In, Gray

4033464 30-4401T

Replacement Twist Lock Venturi Nozzle - ( comes with 4033398 Venturi Tee )

4033469 30-4312

Nozzle Extension Coupling, hex coupling, Lengthens gunite nozzle



4033469
Nozzle Extension Hex Coupling - ( Lengthens gunite nozzle if necessary )
Purchase an additional nozzle H2O# 4033464 then cut to length, glue and couple.





 Gunite Jet - FIS Gunite Micro’ssage - HydroAir by Balboa





To make up a complete Jet Assembly,
order the individual components as
illustrated in the picture on the right.

1-1/2"  ID  or  2" OD for water
X
1/2"  ID or 3/4" OD for AIR

11" long


Output: 22-25 GPM, 18 psi


Nozzle must be within 1" of eyeball
for optimum performance






4033469
Nozzle Extension Hex Coupling
( Lengthens gunite nozzle if necessary )
Purchase an additional nozzle H2O# 4033464 then cut to length, glue and couple.

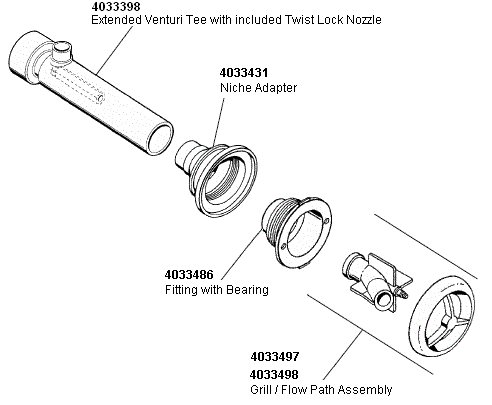

 FIS Gunite Micro’ssage -  Components

H2O # Manf. # Description
4033398 10-4320

Gunite Jet Extended Venturi Tee with Twist Lock Nozzle xxxx

4033431 10-4312

Niche Adapter xxxx

4033486 56-5215

Fitting with Bearing xxxx
Special Order

4033497 16-5230WHT

Grill / Flow Path Assembly, WHITE xxxx
Special Order

4033498 16-5230GRY

Grill / Flow Path Assembly, GRAY xxxx
Special Order

4033508 16-5255MSS

Optional Stainless Steel Escutcheon ( not pictured )

4033469 30-4312

Nozzle Extension Coupling, hex coupling, Lengthens gunite nozzle

xxxx One of four items required for complete jet assembly








 PVC Plaster Seal Rings - HydroAir by Balboa



PVC Plaster Seal Rings


Plaster seals provides larger flange area around pipes for superior plaster seal


H2O # Manf. # Description
4490201 30-4451

Plaster seal, fits 1-1/2" pipe

4490208 30-4452

Plaster seal, fits 2" pipe
