 Sta-Rite U-3 Vinyl Liner Pool Skimmer - Sta-Rite



U-3 skimmers are NSF Certified.
(  Note - Only skimmers used with
a float valve assembly are NSF Approved )

Link to Pentair Pool Products® and Sta-Rite® brands

Brochure

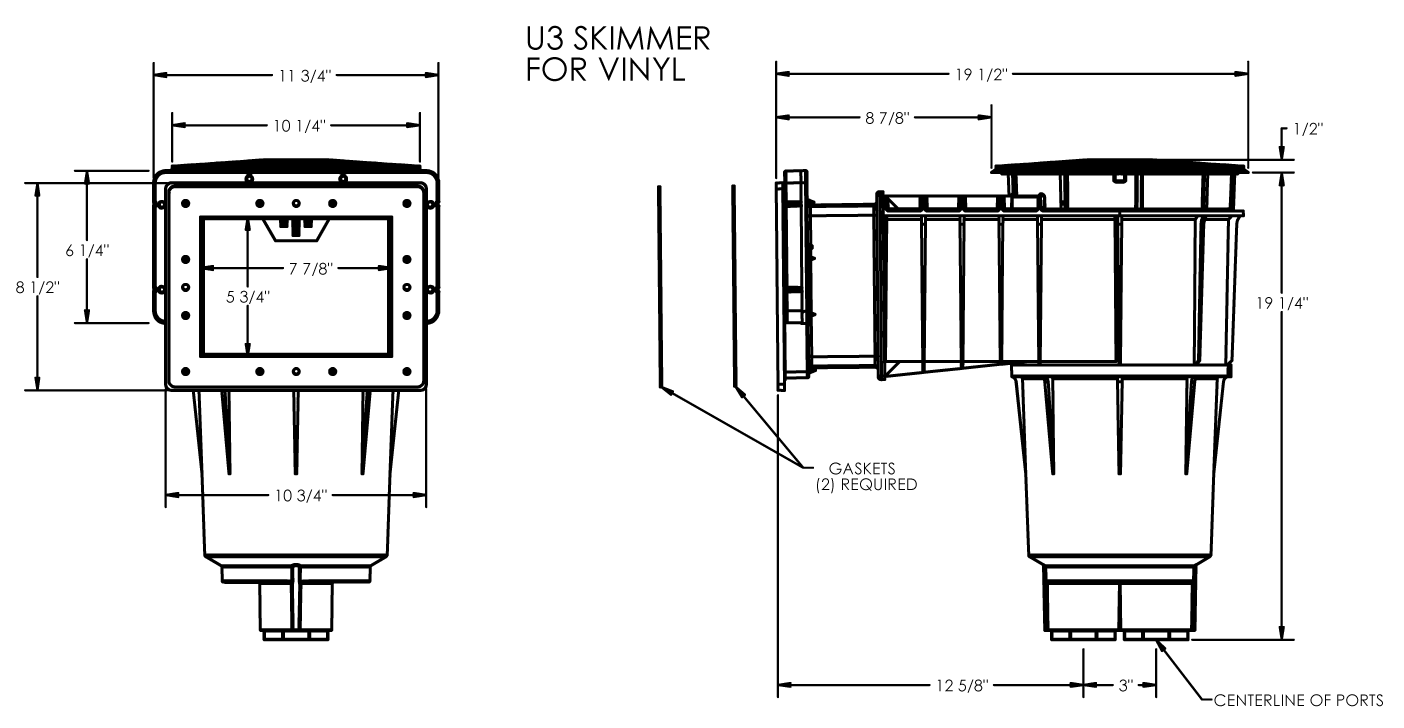

Measurements


This skimmer is designed for In-Ground Vinyl Liner installation.


U-3 Vinyl Skimmer
H2O # Manf. # Description
4450210 09655-1404

White Vinyl U-3 Skimmer, white lid and frame, 2" Slip with 1-1/2" reducers,
includes float valve and basket



Accessories

H2O # Manf. # Description
9878334 WC37-503P

Extension Collar, extends deck frame and lid to deck height

4450213 08655-0007

1-1/2" Spring Equalizer / Check Valve

4450219 08655-0017

2" Spring Equalizer / Check Valve

9878256 08650-0042

Vacuum Adapter Plate



Replacement Parts

H2O # Manf. # Description
9878295 08650-0079

Float Valve Assembly with Trimmer Plate and "O" ring

9962244 805-0256

Float Valve  "O" ring ( Sta-Rite part number 35505-1273 )

9878269 08650-0048

Trimmer Plate, fits on float assembly

9878230 08650-0007

Basket - O.E.M

9093009 B-9

Basket - Aladdin

9878243 08650-0022

Weir

9878282 08650-0058

Deck Lid, white

9878321 08650-0169

Frame and Deck Lid, white





 Vinyl Liner and Fiberglass In-Ground Skimmers - WaterWay



Waterway Renegade, Vinyl Liner / Fiberglass In-Ground Skimmer

Link to Waterway website


The Renegade is a large capacity auto skimmer for residential and commercial pools. Molded of rugged, non-corrosive ABS. The Renegade also fits all currently manufactured steel and polymer pool walls. High flow rate of 75 GPM. Lock-Down vacuum plate and an extension collar is included. Skimmer has an easy access spring-loaded weir door. Skimmer can be special ordered in gray.

Skimmer comes with two 2" Slip Socket  X  2-1/2" Spigot ports. Space between the two ports will allow one of the ports to be plumbed in 2-1/2" piping. An optional 1/2" socket for overflow hose is molded into skimmer.


Renegade Vinyl Liner and Fiberglass In-Ground Skimmer
H2O # Manf. # Description
4462302 540-8400

White Thru Wall Pool Skimmer with extension collar



Replacement Parts and Accessories

H2O # Manf. # Description
4462305 519-6560

White Extension Collar
Note - one extension collar is included with new skimmer

4462306 542-6200

Optional Float Valve ***

4462307 519-3240

Basket Replacement ***

4462308 550-9650

Weir Door Replacement ***

 *** Special Order





 Above Ground Pool Skimmers




Above Ground Pool Skimmers







Above Ground Pool Skimmers
H2O # Manf. # Description
0545110 1-4113-006

Lomart thru-wall skimmer with eyeball return for connection of filtration
system to above ground pools

4020901 SP1092

Hayward Front access, low profile skimmer for spas and above ground
pools, 1-1/2" FIP

0545100 560-C0C60S

Waterway thru-wall skimmer with eyeball return for connection of filtration
system to above ground pools


Waterway thru-wall Skimmer with Eyeball ReturnWaterway thru-wall Skimmer with Eyeball Return
                         0545100
Return fitting included with skimmer
