Features heavy duty, one piece PVC construction with sturdy external
ribbing for superior strength. Adjustable deck collar minimizes
distortion and permits precise alignment during concrete deck
installation.
Bermuda
Gunite Skimmer
H2O #
Manf. #
Description
4472101
506300
White Concrete Pool Skimmer,
2" Slip Ports
Note - float valve sold separately
Accessories and Parts
H2O #
Manf. #
Description
4472109
506160
Float Valve Assembly
with Trimmer Plate and "O" ring
4472110
516244
Float Valve "O" ring
4472111
506162
Trimmer Plate,
fits on float assembly
9766135
516112
Basket
9766165
516252
Weir, 8-1/2", O.E.M
Replacement
9092160
939
Weir, 8-1/2", Aladdin
Replacement
4472113
516253
Gunite Deck Collar, white
9766150
516215
Lid Replacement, white

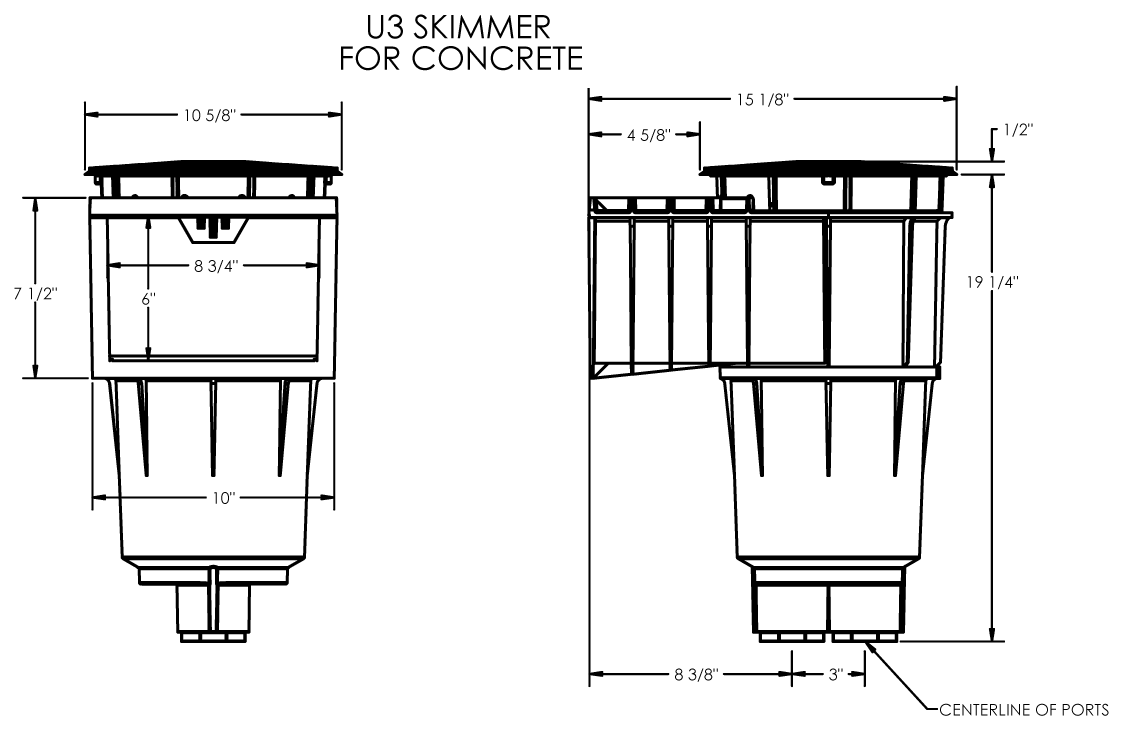

Sta-Rite U-3
Gunite / Concrete Pool Skimmer -
Sta-Rite
U-3 skimmers are NSF
Certified.
( Note - Only skimmers used with a float valve assembly are NSF Approved )
The industry standard, can operate efficiently as a single unit in pools
up to 600 square feet or in multiples to handle the largest commercial
pools. Commonly called a 'SwimQuip U-3 Skimmer'.
U-3 Gunite Skimmers
H2O #
Manf. #
Description
4450201
08650-1404
White U-3 Skimmer, white lid and frame,
2" Slip with 1-1/2" reducers,
includes float valve and basket
4450207
08650-2404
Tan U-3 Skimmer, tan
lid and frame,
2" Slip with 1-1/2" reducers,
includes float valve and basket
Accessories
H2O #
Manf. #
Description
9878334
WC37-503P
Extension
Collar, extends deck frame and lid to deck height
4450213
08655-0007
1-1/2" Spring
Equalizer / Check Valve
4450219
08655-0017
2" Spring
Equalizer / Check Valve
9878256
08650-0042
Vacuum Adapter
Plate
Replacement Parts
H2O #
Manf. #
Description
9878295
08650-0079
Float Valve Assembly
with Trimmer Plate and "O" ring
9962244
805-0256
Float Valve "O" ring
( Sta-Rite part number 35505-1273 )
