Retrofit
Round Suction Cover - Various Manufactures
Included with Cover
12pc. Stainless Steel 316 Grade Uni-Screw fasteners along with Security
tool.
DS 360
Retrofit Anti Entrapment Suction Outlet Type Cover
The DS 360 is certified at 123
gallons per minute @ 1.5 fps. (open surface
area:27 sq. inches).
The
Universal vertical or horizontal mounting design allows side wall
protection as well as floor protection to all suction fittings. An 8”
sump as well as a cut-off pipe can be protected. We do recommend
installing proper sumps during original construction as well as in
remodeling projects.
We recommend this unit be installed as one “layer of protection” and
backed up with an (SVRS) Safety Vacuum Release System certified to:
ANSI/ASME A112.19.17 Standard.
H2O #
Manf. #
Description
4440065
DS 360
Drain Safe DS360
Safety Drain Cover,
Includes 12pc.
Stainless
Steel 316 Grade Uni-Screw fasteners inc with Security tool - White
Additional color choices
are available by special order with choices of Black, Gray, Dark Gray or
Beige
4473005
- White
VGB Compliant
Also available in a model
designed for new installations.
( see catalog page H-11 )

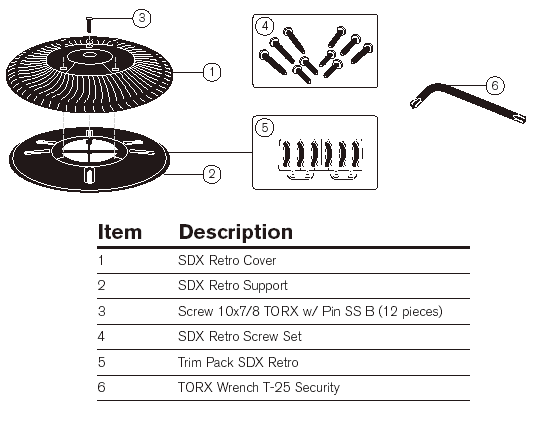

SDX Retrofit Anti-Vortex High Flow Suction Cover
FEATURES AND BENEFITS
NO SUMP REQUIRED
- No need to chisel out a sump to meet the 1.5 times the pipe diameter
sump depth requirement.
SDX has a 1.485 feet per second velocity at the opening at a maximum
listed 200 gpm.
Approved as a bulkhead fitting so the safety is in the cover and plate.
Patented “ribbed” design achieves high flow with sixty “mini” drains
Suction doesn’t transfer if one area is covered
Dome shape to prevent a seal by a swimmer
Anti-vortex shield blocks contact with direct suction
SDX retro can be installed as a single cover with an SVRS installed on
the line.
“Retro” version fits existing suction outlets up to 10” in diameter
Stainless steel security screws
Secondary support plate secured to protect the sump and fittings
"Equalizer" version eliminates chipping the interior surface
H2O #
Manf. #
Description
4473005
004-192-2212-01
Paramount SDX Retrofit Concrete Main Drain Cover - White
Additional color choices
are available by special order
Note:
Sta-Rite Main Drains require the
use of the Adapter / Mud Ring
-
Triodyne Safety Systems
The Anti-Hair Snare Plus™ with an anti-hair entanglement
design. Cover screw holes are pre-drilled to fit hole pattern of 7". The
cover can also accommodate various other hole patterns by drilling out
different counter sunk hole patterns in the covers. Hole patterns are:
6", 6-5/32, 6-5/8 & 7". View the PDF file below for
information on how the Anti-Hair Snare Plus works.
H2O #
Manf. #
Description
4440105
TSS-2000C
Anti Hair Snare Plus, Safety Drain Grate
Cover - White
includes 12 - S.S. Screws
4440109
ADP-2000
Drain Adapter / Mud Ring,
includes mounting screws
Both Cover and Adapter
are available by special order in color black and grey
NO SUMP REQUIRED
