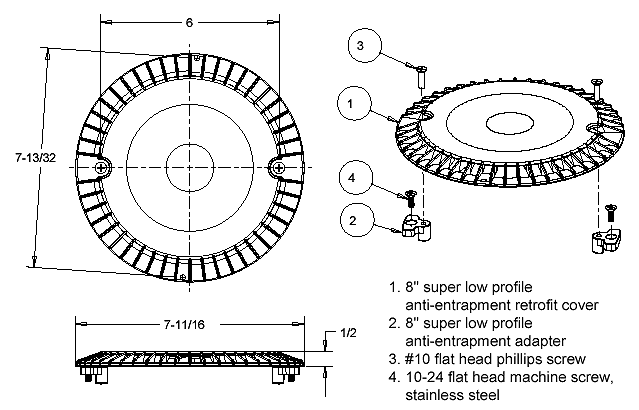

8" Low-Profile Suction Cover
with adapter
VGB 2008 Compliant
Fits: Alloy Brass Foundry (ABF), Afras,
Splash, Sta-Rite, Swimquip,
Caretaker / Polaris, Advanced (APP),
Hayward and certain Custom Molded (CMP)
*
Notice of Recall *
Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.
please visit
Manufacturer's Recall Information
for further information.
|
|
8" Low-Profile Anti-Entrapment Suction Outlet Cover and Adapter
|
| |
|
|
Anti-Entrapment
Flow Rates
Single
Floor: 96 GPM at 4.0 fps
Wall: 70 GPM at 2.9 fps
Floor/wall: 36 GPM at 1.5 fps
7.7 square inch opening
|
|
|
|
|
H2O # |
Manf. # |
Description |
|
4472340 |
RLP8AV101 |
NO LONGER SOLD
8" Low-Profile Anti-Entrapment Suction Outlet Cover and Adapter,
white |
|
Additional color choices
are available by special order |
|
REPLACEMENT SOLUTION:
Use R8HPXXX or A10RCFRRxxx
For new construction use A10RCFRxxx, 8HPxxx, 10AVRxxx or
A8Rxxx
('xxx' ?) |
View
OLD Product Sheet
View
OLD Installation Instructions
|
|

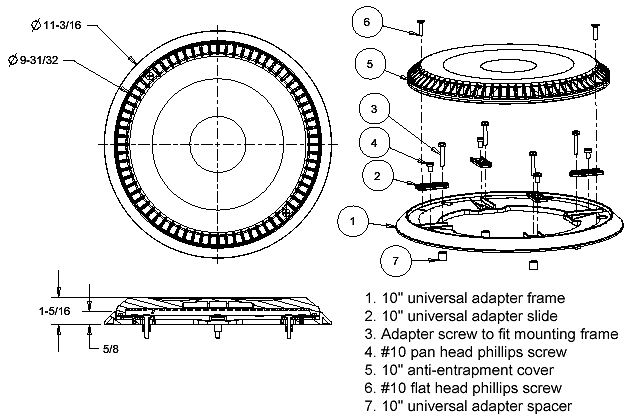

10"
Anti-Entrapment Suction Outlet Cover
with Universal 8" Conversion Frame Kit
VGB 2008 Compliant
Adapts safely
and securely to all brands: AquaStar, Swimquip, Sta-Rite, Caretaker/Polaris,
PacFab, Advanced (APP), Alloy Brass(ABF), Afras,
Splash, Custom Molded (CMP), Hayward, American, Pentair, Paramount (SDX),
Color Match, Waterway and Anthony/Sylvan
*
Notice of Recall *
Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.
please visit
Manufacturer's Recall Information
for further information.
|
|
10" Anti-Entrapment Suction Outlet Cover with 8" Conversion Frame Kit |
| |
|
|
Easily converts all
existing 8" sumps
or frames to a 10" anti-entrapment
cover with higher flow rates. |
Anti-Entrapment Flow Rates
Single
Floor: 206 gpm at 5.8 fps
Wall: 96 gpm at 2.8 fps
11.2 square inch opening
|
Anti-Entrapment Flow Rates
Dual
Floor: 206 gpm at 2.9 fps
Wall: 96 gpm at 1.4 fps |
|
|
H2O # |
Manf. # |
Description |
|
4472335 |
10AVRCFR101 |
NO LONGER SOLD
10" Anti-Entrapment Suction Outlet Cover
with Universal 8"Conversion
Frame Kit, white |
|
Additional color choices
are available by special order |
|
REPLACEMENT SOLUTION:
Use
A10RCFRRxxx
('xxx' ?) |
View
OLD Product Sheet
View
OLD Installation Instructions
|
|

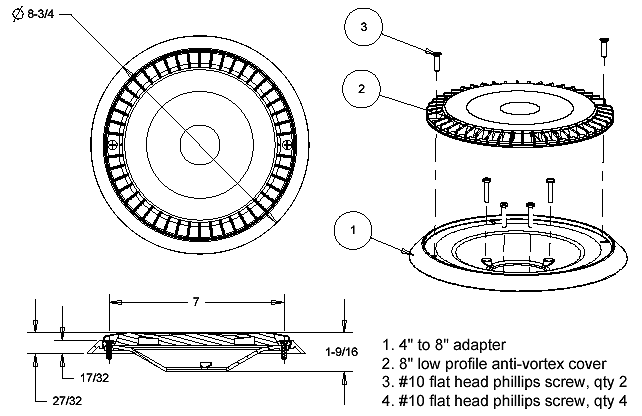

8" Low-Profile
Suction Outlet Cover and Skimmer Equalizer Retrofit Kit
VGB 2008 Compliant
Easily and safely retrofits to pre-VGB
AquaStar and Sta-Rite skimmer
equalizer / suction fittings
Replaces “hockey puck” four-screw style
( up to 70 GPM )
*
Notice of Recall *
Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.
please visit
Manufacturer's Recall Information
for further information.
|
|
8" Low-Profile Suction Outlet Cover and Skimmer Equalizer Retrofit Kit
|
| |
|
Anti-Entrapment
Flow Rates
Single
Wall: 70 GPM at 2.9 fps
7.7 square inch opening
|
Anti-Entrapment
Flow Rates
Dual
Wall: 70 GPM at 1.5 fps |
|
|
H2O # |
Manf. # |
Description |
|
4472345 |
LP8MH101 |
NO LONGER SOLD
8" Low-Profile
Suction Outlet Cover and Skimmer Equalizer
Retrofit Kit, white |
|
Additional color choices
are available by special order |
View
OLD Product Sheet
View
OLD Installation Instructions
|
