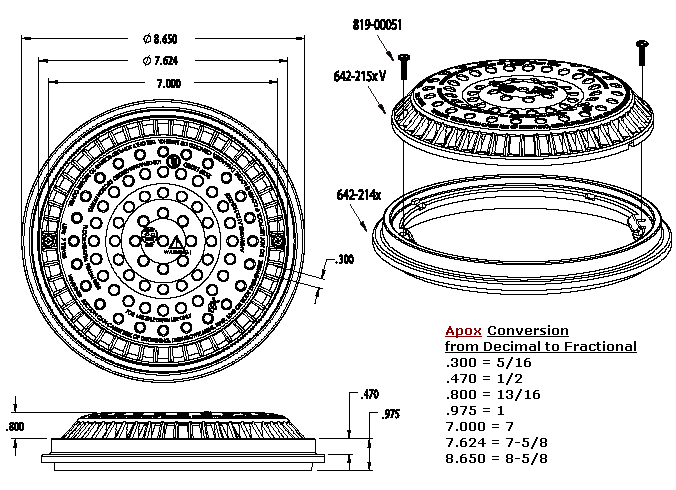

8" Anti-Entrapment Suction Outlet Cover and Frame

Anti-Entrapment Flow Rates Single:
Flow Rate: 55 GPM at 1.5 fps
Floor: 100 GPM at 2.27 fps
Wall: 64 GPM at 1.73 fps
 11.83 square inch opening


8" Anti-Entrapment Suction Outlet Cover and Frame, white

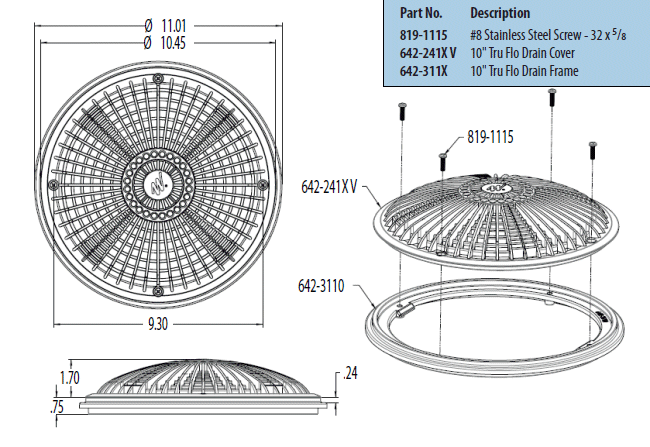

    10" Round Tru Flo Drain and Frame

Anti-Entrapment Flow Rates Single:
Flow Rate: 143 GPM at 1.5 fps
Floor: 200 GPM
Wall: 136 GPM
 30.9 square inch opening


10" Round Tru Flo Drain and Frame, white

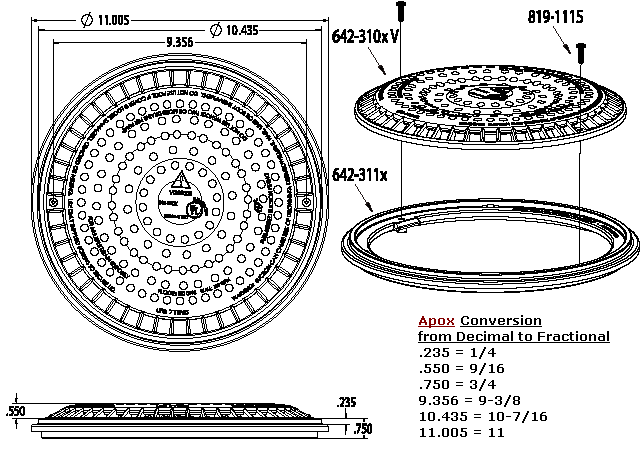

    10" Anti-Entrapment Suction Outlet Cover and Frame

Anti-Entrapment Flow Rates Single:
Flow Rate: 67 GPM at 1.5 fps
Floor: 180 GPM at 4.04 fps
Wall: 100 GPM at 2.24 fps
 14.34 square inch opening


 NO LONGER SOLD  10" Anti-Entrapment Suction Outlet Cover and Frame, white

  SDX Anti-Vortex High Flow Suction Cover and Frame

SDX is a high flow suction outlet suitable for use as a wall fitting and also as a floor drain when debris removal is not a concern. A “Retro” version is available to bring existing suction outlet covers into compliance with the new law. SDX Retro ( see catalog page H-13 ) fits existing plaster rings up to 10” in diameter. SDX boasts a flow rating of 200 gpm on the floor and 192 gpm on the wall making it compatible with most residential pumps up to 3 hp.
( view the PDF files for more information )

FEATURES AND BENEFITS
NO SUMP REQUIRED
 - No need to chisel out a sump to meet the 1.5 times the pipe diameter sump depth requirement.
SDX has a 1.485 feet per second velocity at the opening at a maximum listed 200 gpm.
Approved as a bulkhead fitting so the safety is in the cover and plate.
Patented “ribbed” design achieves high flow with sixty “mini” drains
Suction doesn’t transfer if one area is covered
Dome shape to prevent a seal by a swimmer
“Retro” version fits existing suction outlets up to 10” in diameter
Stainless steel security screws


Paramount SDX Concrete Main Drain Cover and Frame - White

Paramount SDX Concrete Main Drain Cover and Frame - Black
