8" Suction Cover and Frame
VGB 2008 Compliant
*
Notice of Recall *
Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.
please visit
Manufacturer's Recall Information
for further information.
|
|

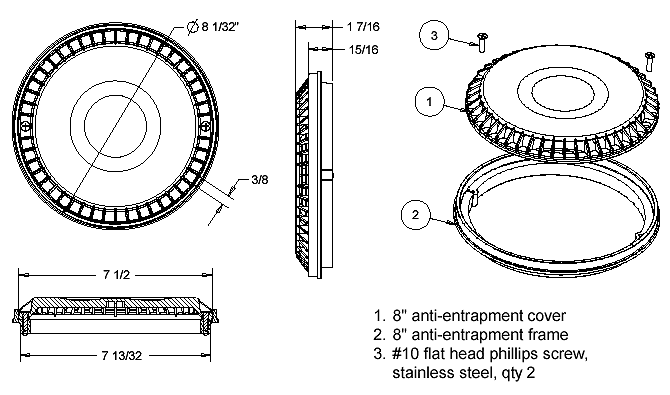

8" Anti-Entrapment Suction Outlet Cover and Frame
|
|
|
|
Anti-Entrapment
Flow Rates
Single
Floor: 88 GPM at 3.2 fps
Wall: 70 GPM at 2.6 fps
8.8 square inch opening
|
Anti-Entrapment
Flow Rates
Dual
Floor: 88 GPM at 1.6 fps
Wall: 70 GPM at 1.3 fps |
Anti-Entrapment
Flow Rates
Triple system
Floor: 176 GPM at 2.1 fps
Wall: 140 GPM at 1.7 fps
Floor/wall: 123 GPM at 1.5 fps
|
|
|
H2O # |
Manf. # |
Description |
|
4472330 |
8AV101 |
Requires additional riser
ring
8" Anti-Entrapment Suction Outlet Cover and Frame, white |
|
Additional color choices
are available by special order |
|
RETROFIT SOLUTION:
Add an additional vented riser ring - 8RRxxx
('xxx' ?)
 |
View
OLD Product Sheet
View OLD Installation Instructions
|
|
10" Suction Cover and Frame
VGB 2008 Compliant
*
Notice of Recall *
Unit may or may not
need to be replaced or retrofitted
depending on the type of installation.
please visit
Manufacturer's Recall Information
for further information.
|
|

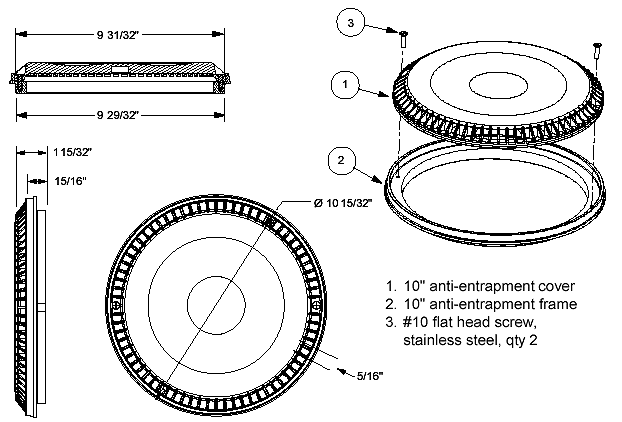

10" Anti-Entrapment Suction Outlet Cover and Frame |
| |
|
|
Anti-Entrapment Flow Rates
Single
Floor: 206 GPM at 5.8 fps
Wall: 96 GPM at 2.8 fps
11.2 square inch opening
|
Anti-Entrapment
Flow Rates
Dual
Floor: 206 GPM at 2.9 fps
Wall: 96 GPM at 1.4 fps |
Anti-Entrapment
Flow Rates
Triple system
Floor: 412 GPM at 3.9 fps
Wall: 288 GPM at 2.7 fps
Floor/wall: 157 GPM at 1.5 fps |
|
|
H2O # |
Manf. # |
Description |
|
4472325 |
10AV101 |
Requires additional riser
ring
10" Anti-Entrapment
Suction Outlet Cover and Frame, white |
|
Additional color choices
are available by special order |
|
RETROFIT SOLUTION:
Add an additional vented riser ring - 10RRxxx
('xxx' ?)
 |
View OLD Product Sheet
View OLD Installation Instructions
|
