 Balboa VS Series Retrofit Kits


Packaged as a kit, the Balboa VS Series is the perfect solution for retrofitting older spa systems.
These units come complete with almost everything you'll will need for the retrofit.


Choose a unit from the selections
below which best fits your needs.









Units Contain or Feature:


Features and Benefits:

Topside Control Panel
Adapter plate for covering previous larger topside panels
Convertible power supply that can be wired 120 volts or 240 volts
5.5kw Heater ( when power supply is wired for 240 volts )
2" Union connections on stainless steel flow thru heater
Plastic enclosure to eliminate water intrusion
M7 sensor technology which eliminates the need for a pressure switch
Can be plumbed to either suction or pressure side of pump
Contains all necessary cords for installation
12v light harness which includes bulb, *Note - w/o lens
Temperature range can be set from 80 degrees F to 104 degrees F
Additional components on some units




 VS500Z - One 2-Speed  Pump + Ozone + Light





Topside Panel Included
 ( panel color may vary )
6.32" x 2.25"


Black textured adapter panel included
8.5" x 3.5"







Unit can control:

One 2-speed Pump ( 120V / 240V )
Ozone Unit ( 120V / 240V )
Spa Light ( 12V / 12W )

Additional Information or Components:

Unit contains Lite Duplex Topside Control Panel  - P/N 54105
Adapter Plate for covering previous larger topside panels is 8.5" x 3.5"


VS500Z - One 2-Speed Pump + Ozone + Light
H2O # Manf. # Description
2500283 54216-Z

Balboa VS500Z Retrofit System Kit






 VS501Z  - One 2-Speed Pump + Ozone + Light + Blower or 1 Speed Pump





Topside Panel Included
 ( panel color may vary )
6.32" x 2.25"
includes 2 topside panel overlays
( jets , jets, temp, light )
or
( blower, jets, temp, light )


Black textured adapter panel included
8.5" x 3.5"








Unit can control:

One 2-speed Pump ( 120V / 240V )
One single-speed Pump ( 120V / 240V ) or Blower ( 120V / 240V )
Ozone Unit ( 120V / 240V )
Spa Light ( 12V / 12W )

Additional Information or Components:

Unit contains Lite Duplex Topside Control Panel P/N 51676
Includes 2 topside panel overlays for different button topside labeling
Adapter Plate for covering previous larger topside panels, 8.5" x 3.5"


VS501Z - One 2-Speed Pump + Ozone + Light + Blower or 1 Speed Pump
H2O # Manf. # Description
2500288 54217-Z

Balboa VS501Z Retrofit System Kit






 VS510SZ  - One 2-Speed Pump + One 1-Speed Pump + Ozone + Light + Blower





Topside Panel Included
 ( panel color may vary )
7.35" x 3.26"
includes 2 topside panel overlays
( with and without blower button )


Black textured adapter panel included







Unit can control:

One 2-speed Pump ( 120V / 240V )
One single-speed Pump ( 240V )
Blower ( 120V / 240V )
Ozone Unit ( 120V / 240V )
Spa Light ( 12V / 12W )

Additional Information or Components:

Serial Standard Topside Control Panel P/N 53189
Includes 2 topside panel overlays for different button topside labeling
Adapter Plate for covering previous topside panels


 VS510SZ - One 2-Speed Pump + One 1-Speed Pump + Ozone + Light + Blower
H2O # Manf. # Description
2500290 54218-Z

Balboa VS510SZ Retrofit System Kit






More Information on VS Series Retrofit Kits


View VS Control Reference Card
( opens in new window )

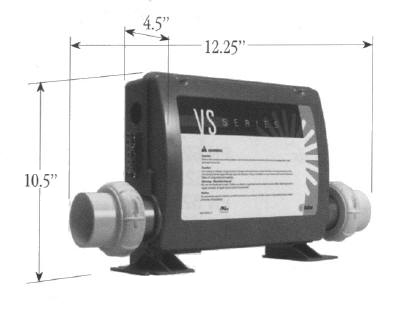

Measurements ( all units )
