The QHE-35 is a tube-in-shell, liquid-to-liquid heat exchanger
constructed entirely of 304 stainless steel.

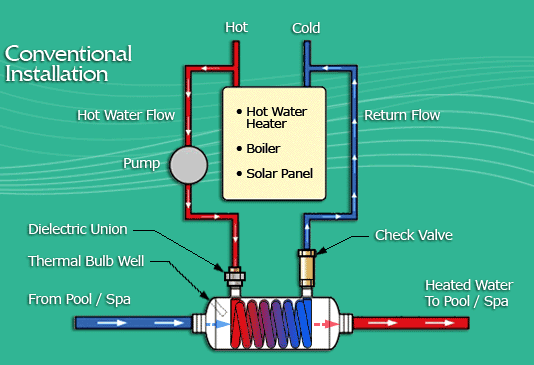

As hot water is circulated through the coiled tube in the tank, baffles
force the flow of cooler water over the coiled tube, creating an
exchange of heat. It measures only 7 inches x 14-3/4 inches and weighs
about 7 pounds. It can fit almost anywhere, even under a spa skirt.
Performs best with a heat source temperature between 140°F and 200°F. At
190° at optimal flow rates, a single unit will output 150,000 BTU.
Multiple units can be used in parallel to achieve greater BTU
performance with no additional friction loss. Controls are not included.
|
