WhisperFlo Pumps - Full
Rated - Pentair |
|
Owner's
Manual
 |
|
40% glass-filled thermoplastic with the Cam & Ramp "see thru" lid design.
Self priming, high flow with patented Funnel-Flo™
diffusers. 2 inch threaded suction
and discharge ports.
Standard and energy-efficient, full rate square flange motors.
|
|
1 speed, Full Rated,
WhisperFlo |
|
H2O # |
Manf. # |
Model. # |
HP |
Voltage |
Description |
|
0850301 |
011511 |
WFE-2 |
1/2 |
208-230 / 115 v |
1/2 HP, 1 speed, Full Rated |
|
0850304 |
011512 |
WFE-3 |
3/4 |
208-230 / 115 v |
3/4 HP, 1 speed, Full Rated |
|
0850307 |
011513 |
WFE-4 |
1 |
208-230 / 115 v |
1
HP, 1 speed, Full Rated |
|
0850310 |
011514 |
WFE-6 |
1-1/2 |
208-230 v |
1-1/2
HP, 1 speed, Full Rated |
|
0850313 |
011515 |
WFE-8 |
2 |
208-230 v |
2
HP, 1 speed, Full Rated |
|
0850316 |
011516 |
WFE-12 |
3 |
208-230 v |
3
HP, 1 speed, Full Rated |
|
Note - all 1 speed pump motors
are energy-efficient
models |
|
2 speed, Full Rated, WhisperFlo |
|
H2O # |
Manf. # |
Model # |
HP |
Voltage |
Description |
|
0860296 |
012530 |
WFDS-3 |
3/4 |
115 v |
3/4 HP, 2 speed, Full Rated * |
|
0860299 |
011486 |
WFDS-4 |
1 |
230 v |
1 HP, 2 speed, Full Rated |
|
0860302 |
011522 |
WFDS-6 |
1-1/2 |
230 v |
1-1/2
HP, 2 speed, Full Rated |
|
0860305 |
011523 |
WFDS-8 |
2 |
230 v |
2
HP, 2 speed, Full Rated |
Note - all 2 speed pump motors
are standard efficient models
*
3/4 HP 2 speed is not UL Listed |
|
|
Specifications:
1 Speed - WhisperFlo -
Full Rated Pumps |
|
H2O # |
Manf. # |
Model # |
Speeds |
HP |
SF |
Voltage |
Amps |
Length |
Pump Curve |
|
0850301 |
011511 |
WFE-2 |
1 |
1/2 |
1.90 |
208-230 / 115 v |
11.2 / 6.0-5.6 |
24.469" |
Click to Enlarge |
|
0850304 |
011512 |
WFE-3 |
1 |
3/4 |
1.67 |
208-230 / 115 v |
11.2 / 6.0-5.6 |
24.469" |
|
0850307 |
011513 |
WFE-4 |
1 |
1 |
1.65 |
208-230 / 115 v |
14.8 / 7.8-7.4 |
24.72" |
|
0850310 |
011514 |
WFE-6 |
1 |
1-1/2 |
1.47 |
208-230 v |
9.6 / 8.8 |
25.22" |
|
0850313 |
011515 |
WFE-8 |
1 |
2 |
1.30 |
208-230 v |
11.0 / 10.2 |
25.72" |
|
0850316 |
011516 |
WFE-12 |
1 |
3 |
1.15 |
208-230 v |
15.0 / 13.6 |
25.72" |
|
Width = 10-7/8"
Height = 12-3/4 |
Specifications: 2 Speed -
WhisperFlo - Full Rated Pumps |
|
H2O # |
Manf. # |
Model # |
Speeds |
HP |
SF |
Voltage |
Amps |
Length |
Pump Curve |
|
0860296 |
012530 |
WFDS-3 |
2 |
3/4 |
1.67 |
115 v |
14.6 / 4.7 |
24.469" |
Click to Enlarge |
|
0860299 |
011486 |
WFDS-4 |
2 |
1 |
1.65 |
230v |
7.8 / 3.0 |
24.72" |
|
0860302 |
011522 |
WFDS-6 |
2 |
1-1/2 |
1.47 |
230 v |
10.0 / 3.5 |
25.22" |
|
0860305 |
011523 |
WFDS-8 |
2 |
2 |
1.30 |
230 v |
11.0 / 4.0 |
25.72" |
|
Width = 10-7/8"
Height = 12-3/4" High speed = 3450 RPM
Low Speed = 1725 RPM |
|
|
WhisperFlo 3-Phase High
Performance Pumps - Pentair |
|
3-Phase
|
|
1 speed, 3-Phase, WhisperFlo |
|
H2O # |
Manf. # |
Model. # |
HP |
Voltage |
Description |
|
0850320 |
011568 |
WFK-4 |
1 |
208 / 230 / 460 v |
1
HP, 1 speed, 3 Phase |
|
0850324 |
011570 |
WFK-8 |
2 |
208 / 230 / 460 v |
2 HP, 1 speed, 3 Phase |
|
|
Specifications:
1 Speed - 3-Phase,
WhisperFlo |
|
H2O # |
Manf. # |
Model # |
Speeds |
HP |
SF |
Voltage |
Amps |
Length |
Pump Curve |
|
0850320 |
011568 |
WFK-4 |
1 |
1 |
1.65 |
208 / 230 / 460 v |
5.0 / 4.6 / 2.3 |
24.75" |
Click to Enlarge |
|
0850324 |
011570 |
WFK-8 |
1 |
2 |
1.30 |
208 / 230 / 460 v |
7.1 / 6.8 / 3.4 |
25.75" |
 |
|
Width = 10-7/8" Height =
12-3/4" |

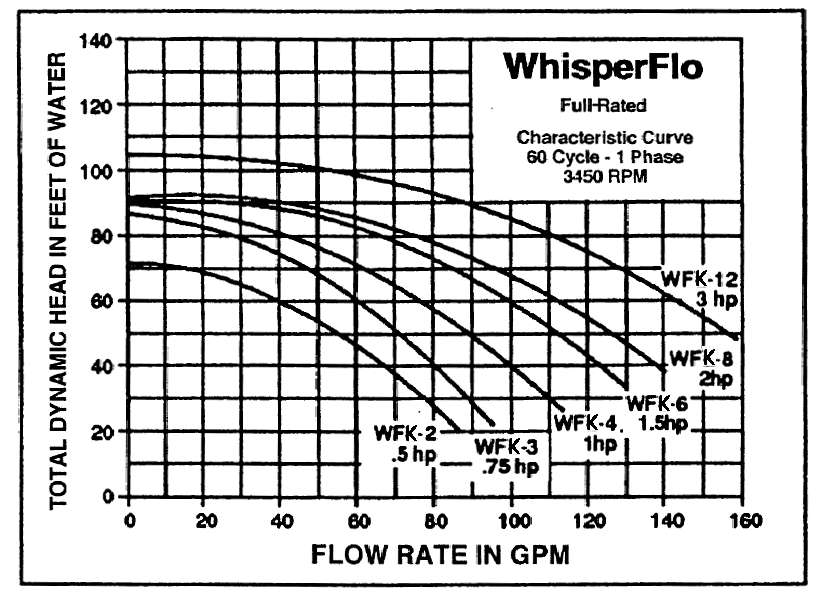

No Flow Chart Available, use this chart as reference.
|
|
