48Y Square Flange 1 Speed Motors - A.O.
Smith |
|
Single Speed
48Y
Square Flange
Single Phase
style without run capacitor
style with run capacitor |
|
|
|
1 Speed, Square Flange,
48Y, Single Phase |
|
H2O # |
Manf. # |
Description |
|
1010231 |
USQ1052 |
1/2 HP - SF 1.3, 115 / 230 v,
48Y, 1 speed |
|
1010234 |
USQ1072 |
3/4 HP - SF 1.27, 115 / 230 v,
48Y, 1 speed |
|
1010237 |
USQ1102 |
1 HP - SF 1.25, 115 / 230 v,
48Y, 1 speed |
|
1010240 |
USQ1152 |
1-1/2 HP - SF 1.1, 115/230 v,
48Y, 1 speed |
|
1010252 |
USQ1202 |
2 HP - SF 1.1, 230 v,
48Y - Energy Efficient, 1 speed |
|
1010255 |
USQ1252 |
2-1/2 HP - SF 1.0, 230 v,
48Y - Energy Efficient, 1 speed |
|
1010258 |
SQ1302 |
3 HP - SF 1.15, 230
v, 56Y - Energy Efficient, 1 speed |
Specifications: 1
Speed, Square Flange, 48Y, Single Phase |
|
H2O # |
Manf. # |
Speeds |
HP |
SF |
Voltage |
Amps |
Length
less shaft |
Start*
Capacitor |
Run*
Capacitor |
|
1010231 |
USQ1052 |
1 |
1/2 |
1.3 |
115 / 230 |
8.2 / 4.1 |
11-1/8" |
no data |
No |
|
1010234 |
USQ1072 |
1 |
3/4 |
1.27 |
115 / 230 |
11.8 / 5.9 |
11-1/2" |
1080113 |
No |
|
1010237 |
USQ1102 |
1 |
1 |
1.25 |
115 / 230 |
14.8 / 7.4 |
12-1/8" |
Yes |
No |
|
1010240 |
USQ1152 |
1 |
1-1/2 |
1.1 |
115 / 230 |
19.2 / 9.6 |
13-5/16" |
1080120 |
No |
|
1010252 |
USQ1202 |
1 |
2 |
1.1 |
230 |
10.4 |
13-1/4" |
1080085 |
Yes |
|
1010255 |
USQ1252 |
1 |
2-1/2 |
1.0 |
230 |
11.2 |
13-7/8" |
Yes |
Yes |
|
1010258 |
SQ1302 |
1 |
3 |
1.15 |
230 |
15.4 |
14-11/32" |
Yes |
Yes |
* Note - Data under
Capacitors refer to H2O catalog part numbers for capacitor replacement ( if
numbers are present )
Capacitors are
listed on catalog page A-33 |
also known as MagneTec or
Century
|
|
56Y Square Flange 1
Speed
Centurion Motors - A.O.
Smith |
|
Single Speed
56Y
Square Flange
Single Phase
56Y frames are bigger around
than 48Y frames
also known as MagneTec or
Century
|
|
|
|
1 Speed, Square Flange,
56Y, Single Phase |
|
H2O # |
Manf. # |
Description |
|
1035103 |
B845 |
1/2 HP - SF 1.9, 208-230
/ 115 v, 56Y - Energy Efficient, 1 speed |
|
1035106 |
B2661 |
3/4 HP - SF 1.67,
208-230 / 115 v, 56Y - Energy Efficient, 1 speed |
|
1035109 |
B841 |
1 HP - SF 1.65, 208-230
/ 115 v, 56Y - Energy Efficient, 1 speed |
|
1035112 |
B2842 |
1-1/2 HP - SF 1.47,
208-230 v, 56Y - Energy Efficient, 1 speed |
|
1035115 |
B2843 |
2 HP - SF 1.30,
208-230 v, 56Y - Energy Efficient, 1 speed |
|
1035118 |
B844 |
3 HP - SF 1.15,
208-230 v, 56Y - Energy Efficient, 1 speed |
|
1010258 |
SQ1302 |
3 HP - SF 1.15, 230
v, 56Y - Energy Efficient, 1 speed |
|
All motors above

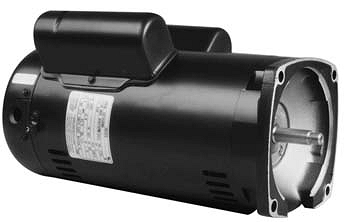

resemble the picture on the left except for motor SQ1302.
View SQ1302 Image |
Specifications: 1 Speed, Square Flange,
56Y, Single Phase |
|
H2O # |
Manf. # |
Speeds |
HP |
SF |
Voltage |
Amps |
Length
less shaft |
Start*
Capacitor |
Run*
Capacitor |
|
1035103 |
B845 |
1 |
1/2 |
1.9 |
208-230 / 115 |
4.4-4.5 / 8.8 |
11-19/32" |
no data |
no data |
|
1035106 |
B2661 |
1 |
3/4 |
1.67 |
208-230 / 115 |
6.0-5.6 / 11.2 |
12-1/4" |
No |
1080175 |
|
1035109 |
B841 |
1 |
1 |
1.65 |
208-230 / 115 |
7.8-7.4 / 14.8 |
12-19/32" |
No |
1080175 |
|
1035112 |
B2842 |
1 |
1-1/2 |
1.47 |
208-230 |
9.6-8.8 |
13-3/32" |
no data |
no data |
|
1035115 |
B2843 |
1 |
2 |
1.30 |
208-230 |
11.0-10.0 |
13-19/32" |
no data |
no data |
|
1035118 |
B844 |
1 |
3 |
1.15 |
208-230 |
15.0-13.6 |
13-19/32" |
no data |
no data |
|
1010258 |
SQ1302 |
1 |
3 |
1.15 |
230 |
15.4 |
14-11/32" |
no data |
no data |
*
Note - Data under Capacitors refer to H2O catalog part numbers for
capacitor replacement ( if numbers are present )
Capacitors are
listed on catalog page A-33 |
|
|
3 Phase Square Flange Motors - A.O.
Smith |
|
3 Phase
Square Flange
Single Speed 48Y and 56Y
48Y Frame
56Y Frame |
|
|
|
3 Phase, Square Flange,
1 Speed |
|
H2O # |
Manf. # |
Description |
|
1010291 |
Q3102 |
1 HP - SF 1.65, 230 / 460 v,
48Y, 1 speed, 3 phase |
|
1010294 |
Q3152 |
1-1/2 HP - SF 1.47, 230 / 460
v, 48Y, 1 speed, 3 phase |
|
1010297 |
Q3202 |
2 HP - SF 1.3, 230 / 460 v,
48Y, 1 speed, 3 phase |
|
1010300 |
Q3302 |
3 HP - SF 1.15, 230 / 460
v, 48Y, 1 speed, 3 phase |
Specifications: 3 Phase,
Square Flange, 1 Speed |
|
H2O # |
Manf. # |
HP |
SF |
Voltage |
Amps |
Frame |
Length less shaft |
|
1010291 |
Q3102 |
1 |
1.65 |
208-230 / 460 |
4.7 / 2.35 |
48Y |
10-7/8" |
|
1010294 |
Q3152 |
1-1/2 |
1.47 |
208-230 / 460 |
6.8 / 3.4 |
48Y |
11-7/8" |
|
1010297 |
Q3202 |
2 |
1.3 |
208-230 / 460 |
8.5 / 4.25 |
48Y |
12-5/8" |
|
1010300 |
Q3302 |
3 |
1.15 |
208-230 / 460 |
9.7 / 4.9 |
56Y |
12-7/32" |
also known as MagneTec or
Century
|
|
