 Executive - 56 Frame - WaterWay


Link to Waterway Plastic's Website


* Note
 Union half fitting are not included.




Need a replacement barbed fitting?

 This 1/4" MIP  X  3/8" barbed fitting is
often added to the pump and is screwed
into one of the drain plugs. It is a add-on
by the spa manufacturer and is not part
of the wet end itself.
H2O# 4062832


Features of WaterWay's Executive Spa Pump:

56 Frame thru-bolt motor for added strength, cooler operating
Large 6-1/2" diameter wet end for higher head pressure
Split capacitor, (start and run) for less energy consumption
Thermally protected to extend life expectancy of motor
Highly versatile wet end can be rotated every 90°
Equipped with the highest quality Viton seals
Unionized Suction and Unionized Discharge


WaterWay "Executive" Pumps

H2O # Manf. # Horsepower Voltage Description
0815160 3720821-1D 2 230 v

2 HP, 2 speed, 230 v
2" Suction  X  2" Discharge

0815165 3721221-1D 3 230 v

3 HP, 2 speed, 230 v
2" Suction  X  2" Discharge

0815170 3721621-1D 4 230 v

4 HP, 2 speed, 230 v
2" Suction  X  2" Discharge

0815180 3721621-13 4 230 v

4 HP, 2 speed, 230 v
2-1/2" Suction  X  2" Discharge

0815182 3722021-13 5 230 v

5 HP, 2 speed, 230 v
2-1/2" Suction  X  2" Discharge

Make sure to choose correct suction size when selecting pump.
WaterWay Executive Wet Ends and parts are on Catalog Page A-24


Instructions


Specifications: WaterWay "Executive" Pumps
 H2O # Manf. # Speeds  Horsepower  Suction  Discharge Voltage  Amps Pump Curve

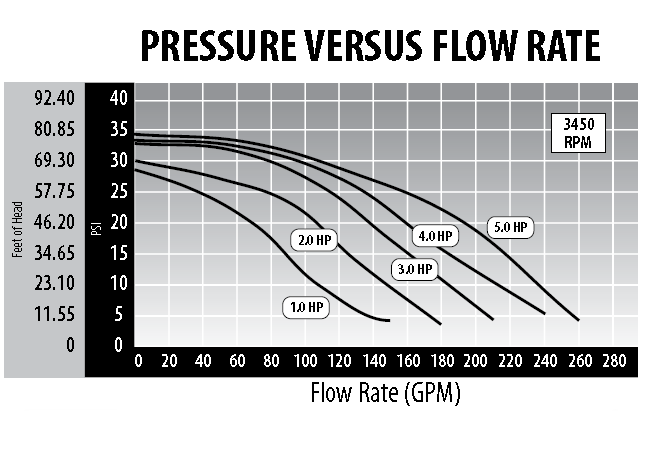

Flow Chart for dual speed pumps
Click to Enlarge
0815160 3720821-1D 2 2 2" 2" 230 v 8.0/ 3.0
0815165 3721221-1D 2 3 2" 2" 230 v 10.0/ 3.4
0815170 3721621-1D 2 4 2" 2" 230 v 12.0 / 4.4
0815180 3721621-13 2 4 2-1/2" 2" 230 v 12.0 / 4.4
0815182 3722021-13 2 5 2-1/2" 2" 230 v 16.4 / 4.8





 EX2  - 48 Frame - WaterWay


Link to Waterway Plastic's Website


* Note
 Union half fitting are not included.


2" Unionized Suction

2" Unionized Discharge


Features of WaterWay's Ex2 Spa Pump:

48 Frame thru-bolt motor
2" Unionized Suction  X  2" Unionized Discharge
Same physical size as Aqua-Flo XP2, XP2e ( fits within the same volume envelope )
Can be used as substitute or retrofit to Aqua-Flo model XP2 or XP2e pumps
and similar pumps and wet ends offered by other domestic and foreign suppliers
Made in USA from highest quality materials with UL and CUL certifications
Equipped with the highest quality Viton seals
Equipped with high efficiency electrical motors, custom designed for spa applications


WaterWay "EX2" Pumps

H2O # Manf. # Horsepower Voltage Description
0815145 3420610-1U 1-1/2 115 v

1-1/2 HP, 2 speed, 115 v - 2" X 2"

------------ 3421021-1U 2 230 v

2 HP, 2 speed, 230 v - 2" X 2"**

------------ 3421020-1U 2-1/2 230 v

2-1/2 HP, 2 speed, 230 v - 2" X 2"**

------------ 3421821-1U 3 230 v

3 HP, 2 speed, 230 v - 2" X 2"**

 **  Special order

Data Sheet



Specifications: WaterWay "EX2" Pumps
 H2O # Manf. # Speeds  Horsepower  Suction Discharge Voltage  Amps Pump Curve

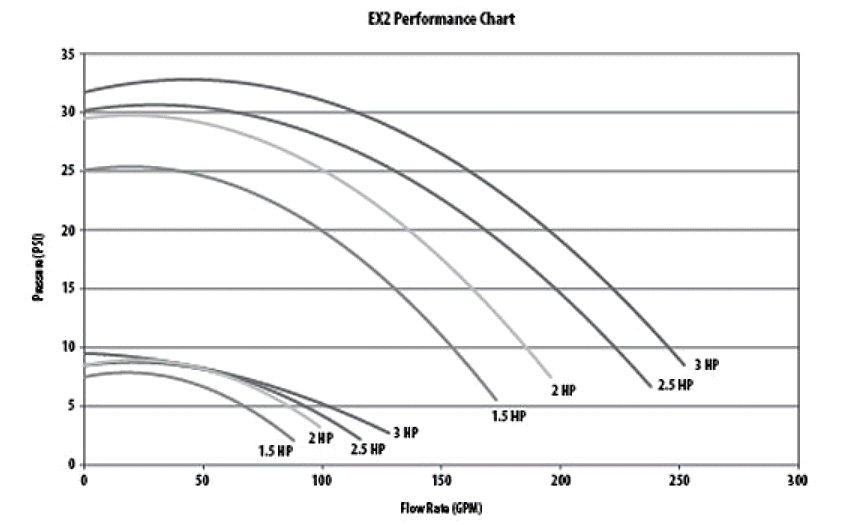

Flow Chart for dual speed pumps
Click to Enlarge
0815145 3420610-1U 2 1-1/2 2" 2" 115 v 16.4 / 4.4
------------ 3421021-1U 2 2 2" 2" 230 v 9.0 / 2.8
------------ 3421020-1U 2 2-1/2 2" 2" 230 v 11.0 / 3.3
------------ 3421821-1U 2 3 2" 2" 230 v 12.0 / 3.5
