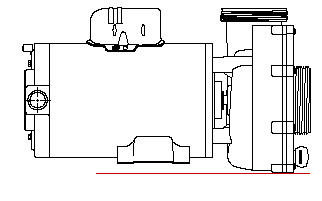

Flo-Master "FMHP" Side
Discharge Pumps -
Aqua-flo |
|
center discharge
Owner's Manual
|
|
Aqua-Flo Flo-Master "FMHP" pumps are designed with a unique, high-performance
impeller.
The offset, "Side" discharge design, provides higher
flow rates than the center discharge model.
1-1/2 inch inlet and outlet with quick release compression
unions
allow for easy installation or maintenance.
The wet end can be rotated 90
degrees left or right.
1-1/2" unions are included.
Available in single or two
speed model.
|
|
1 Speed - Flo-Master "FMHP"
Pumps |
|
H2O # |
Manf. # |
Horsepower |
Voltage |
Description |
|
0825102 |
02007000-1010 |
3/4 |
115 v |
3/4
HP, 1 speed, 115 v |
|
0825105 |
02010000-1010 |
1 |
115 v |
1
HP, 1 speed, 115 v |
|
0825115 |
02015000-1010 |
1-1/2 |
115 or 230 v |
1-1/2 HP, 1 speed, 115/230 v |
|
0825130 |
02020000-1010 |
2 |
115 or 230 v |
2
HP, 1 speed, 115/230 v |
|
2
Speed - Flo-Master "FMHP" Pumps
|
|
H2O # |
Manf. # |
Horsepower |
Voltage |
Description |
|
0827041 |
02107000-1010 |
3/4 |
115 v |
3/4
HP, 2 speed, 115 v |
|
0827045 |
02110000-1010 |
1 |
115 v |
1
HP, 2 speed, 115 v |
|
0827055 |
02115000-1010 |
1-1/2 |
115 v |
1-1/2 HP, 2 speed, 115 v |
|
0827060 |
02115005-1010 |
1-1/2 |
230 v |
1-1/2 HP, 2 speed, 230 v |
|
0827065 |
02120000-1010 |
2 |
230 v |
2
HP, 2 speed, 230 v |
|
Specifications: Flo-Master "FMHP" 1 Speed Pump |
|
H2O # |
Manf. # |
Speeds |
Horsepower |
Voltage |
Amps |
Length |

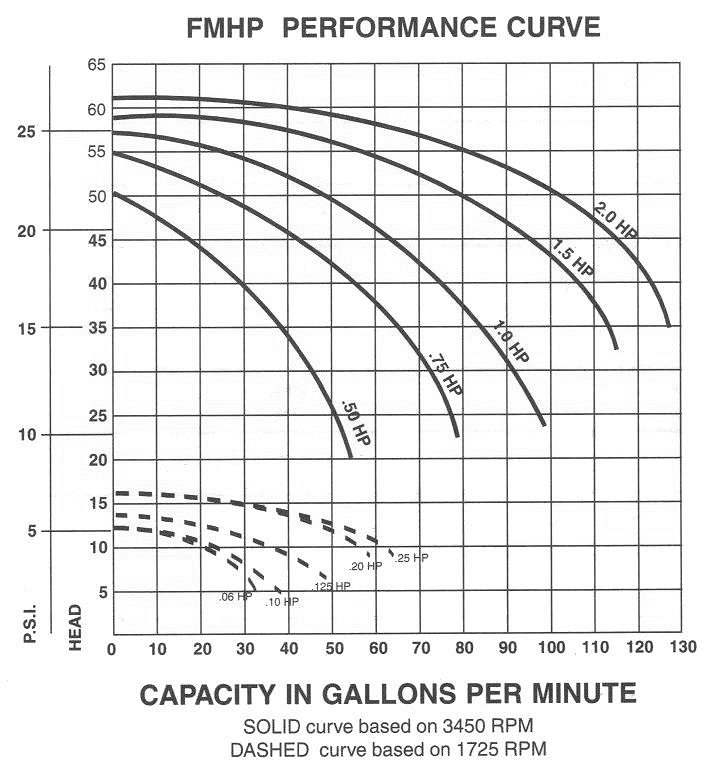

Pump Curve |
|
0825102 |
02007000-1010 |
1 |
3/4 |
115 v |
9.0 |
15" |
Click to Enlarge |
|
0825105 |
02010000-1010 |
1 |
1 |
115 v |
12.0 |
15-1/8" |
|
0825115 |
02015000-1010 |
1 |
1-1/2 |
115 or 230 v |
16.0 / 8.0 |
15-1/2" |
|
0825130 |
02020000-1010 |
1 |
2 |
115 or 230 v |
20.0 / 10.0 |
17-1/4" |
Specifications:
Flo-Master "FMHP" 2 Speed Pump |
|
H2O # |
Manf. # |
Speeds |
Horsepower |
Voltage |
Amps |
Length |
Pump Curve |
|
0827041 |
02107000-1010 |
2 |
3/4 |
115 v |
8.8/2.6 |
15" |
Click to Enlarge |
|
0827045 |
02110000-1010 |
2 |
1 |
115 v |
11.0/2.9 |
15" |
|
0827055 |
02115000-1010 |
2 |
1-1/2 |
115 v |
13.8/3.8 |
16" |
|
0827060 |
02115005-1010 |
2 |
1-1/2 |
230 v |
8.0/2.6 |
16" |
|
0827065 |
02120000-1010 |
2 |
2 |
230 v |
8.5/2.8 |
16-1/4" |
|
|
Replacement Wet Ends for Flo-Master "FMHP"
-
Aqua-flo |
|
|
|
Aqua-Flo Flo-Master "FMHP" wet end with offset "Side" discharge. Fits 48
frame, single or two speed thru bolt motors. 1-1/2" FIP or union
connection. Replacement wet ends do not include the unions.
|
|
Replacement Wet Ends for Flo-Master "FMHP"
Pumps |
|
H2O # |
Manf. # |
Description |
|
0830105 |
91040690-000 |
3/4 HP, side discharge |
|
0830106 |
91040700-000 |
1 HP, side discharge |
|
0830116 |
91040720-000 |
1-1/2 HP, side discharge |
|
0830126 |
91040730-000 |
2 HP, side discharge |
|
|
