"SHPF" and "SHPM" Pumps -
Jandy |
|
Owner's Manual
|
|
Jandy "SHPF" and "SHPM" Series pumps incorporates Stealth “Quiet Technology” for
super quiet operation. Largest basket capacity available with 1/4 turn
cam lock lid. Pumps are high head with capacitor start capacitor run, energy efficient
motors. Comes complete with full flow unions. Single speed pumps are full
rated and the 2 speed pumps are max (up) rated.
|
|
1 Speed - Stealth "SHPF"
Full Rated Pumps |
|
H2O # |
Manf. # |
Horsepower |
Voltage |
Description |
|
0850702 |
SHPF.75 |
3/4 |
208-230 / 115 v |
3/4 HP, 1 speed, 208-230 / 115 v |
|
0850705 |
SHPF1.0 |
1 |
208-230 / 115 v |
1 HP, 1 speed, 208-230 / 115 v |
|
0850710 |
SHPF1.5 |
1.5 |
208-230 v |
1.5
HP, 1 speed, 208-230 v |
|
0850715 |
SHPF2.0 |
2 |
208-230 v |
2
HP, 1 speed, 208-230 v |
|
0850720 |
SHPF3.0 |
3 |
208-230 v |
3
HP, 1 speed, 208-230 v |
|
2
Speed - Stealth "SHPM" Max (Up) Rated Pumps |
|
H2O # |
Manf. # |
Horsepower |
Voltage |
Description |
|
0860718 |
SHPM2.0-2 |
2 |
208-230 v |
2
HP, 2 speed, 208-230 v |
|
0860728 |
SHPM2.5-2 |
2.5 |
208-230 v |
2.5 HP, 2 speed, 208-230 v |
|
|
Specifications:
1 Speed - Stealth "SHPF"
Full Rated Pumps |
|
H2O # |
Manf. # |
Speeds |
Horsepower |
Voltage |
Amps |

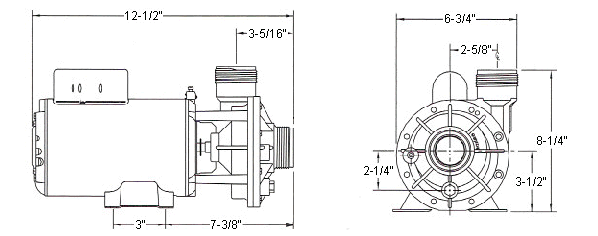

Length |
Unions |

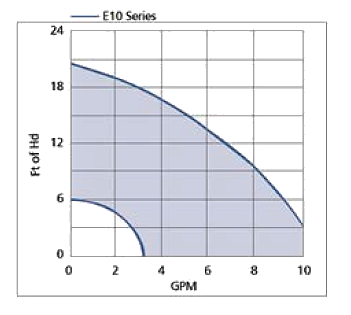

Pump Curve |
|
0850702 |
SHPF.75 |
1 |
3/4 |
208-230 / 115 v |
6.0-5.6 / 11.2 |
31-7/8" |
2" X 2-1/2" |
Click to Enlarge |
|
0850705 |
SHPF1.0 |
1 |
1 |
208-230 / 115 v |
7.8-7.4 / 14.8 |
32-1/4" |
2" X 2-1/2" |
|
0850710 |
SHPF1.5 |
1 |
1.5 |
208-230 v |
9.6-8.8 |
32-5/8" |
2" X 2-1/2" |
|
0850715 |
SHPF2.0 |
1 |
2 |
208-230 v |
11.0-10.00 |
33-1/8" |
2" X 2-1/2" |
|
0850720 |
SHPF3.0 |
1 |
3 |
208-230 v |
15.0-13.6 |
33-1/8" |
2-1/2" X 3" |
Specifications:
2
Speed - Stealth "SHPM" Max (Up) Rated Pumps |
|
H2O # |
Manf. # |
Speeds |
Horsepower |
Voltage |
Amps |
Length |
Unions |
Pump Curve |
|
0860718 |
SHPM2.0-2 |
2 |
2 |
208-230 v |
9.6-8.8 |
32-5/8" |
2" X 2-1/2" |
Click to Enlarge |
|
0860728 |
SHPM2.5-2 |
2 |
2-5 |
208-230 v |
11.0-10.0 |
33-1/8" |
2" X 2-1/2" |
|
|
|
|
