 "SHPF" and "SHPM" Pumps - Jandy

Link to Jandy's Website

Owner's Manual
View Parts Breakdown




Jandy "SHPF" and "SHPM" Series pumps incorporates Stealth “Quiet Technology” for super quiet operation. Largest basket capacity available with 1/4 turn cam lock lid. Pumps are high head with capacitor start capacitor run, energy efficient motors. Comes complete with full flow unions. Single speed pumps are full rated and the 2 speed pumps are max (up) rated. All Jandy pumps are special order.


1 Speed - Stealth "SHPF" Full Rated Pumps
H2O # Manf. # Horsepower Voltage Description
0850702 SHPF.75 3/4 208-230 / 115 v

3/4 HP, 1 speed, 208-230 / 115 v ***
0850705 SHPF1.0 1 208-230 / 115 v

1 HP, 1 speed, 208-230 / 115 v ***
0850710 SHPF1.5 1.5 208-230 v

1.5 HP, 1 speed, 208-230 v ***
0850715 SHPF2.0 2 208-230 v

2 HP, 1 speed, 208-230 v ***
0850720 SHPF3.0 3 208-230 v

3 HP, 1 speed, 208-230 v ***
*** Special Order



2 Speed - Stealth "SHPM" Max (Up) Rated Pumps
H2O # Manf. # Horsepower Voltage Description
0860718 SHPM2.0-2 2 208-230 v

2 HP, 2 speed, 208-230 v ***
0860728 SHPM2.5-2 2.5 208-230 v

2.5 HP, 2 speed, 208-230 v ***
*** Special Order



Specifications:  1 Speed - Stealth "SHPF" Full Rated Pumps
 H2O # Manf. # Speeds  Horsepower Voltage  Amps Length Unions Pump Curve

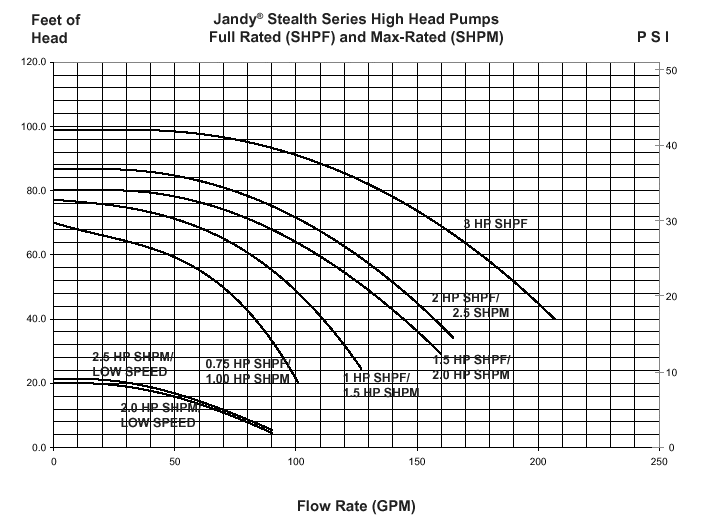

 Flow Chart for both single and dual speed pumps
Click to Enlarge
0850702 SHPF.75 1 3/4 208-230 / 115 v 6.0-5.6 / 11.2 31-7/8" 2"  X  2-1/2"
0850705 SHPF1.0 1 1 208-230 / 115 v 7.8-7.4 / 14.8 32-1/4" 2"  X  2-1/2"
0850710 SHPF1.5 1 1.5 208-230 v 9.6-8.8 32-5/8" 2"  X  2-1/2"
0850715 SHPF2.0 1 2 208-230 v 11.0-10.00 33-1/8" 2"  X  2-1/2"
0850720 SHPF3.0 1 3 208-230 v 15.0-13.6 33-1/8" 2-1/2"  X  3"


Specifications:  2 Speed - Stealth "SHPM" Max (Up) Rated Pumps
 H2O # Manf. # Speeds  Horsepower Voltage  Amps Length Unions Pump Curve
 Flow Chart for both single and dual speed pumps
Click to Enlarge
0860718 SHPM2.0-2 2 2 208-230 v 9.6-8.8 32-5/8" 2"  X  2-1/2"
0860728 SHPM2.5-2 2 2-5 208-230 v 11.0-10.0 33-1/8" 2"  X  2-1/2"
