Challenger High Pressure Pumps
- Pentair |
|
Data Sheet
Owner's
Manual
View Parts Breakdown
|
|
The Challenger single speed High Pressure pump is designed for installations that
require high pressure, such as spa jets or long runs. Pump comes with 2"
threaded Suction and Discharge ports.
|
|
1 Speed, Up-Rated,
Challenger High Pressure Pump |
|
H2O # |
Manf. # |
Model. # |
HP |
Voltage |
Description |
|
0850360 |
346203 |
CHII-NI-3/4A |
3/4 |
115 / 230 v |
3/4 HP, 1 speed, Up-Rated ** |
|
0850363 |
346204 |
CHII-NI-1A |
1 |
115 / 230 v |
1 HP, 1 speed, Up-Rated ** |
|
0850366 |
346206 |
CHII-NI-1-1/2A |
1.5 |
115 / 230 v |
1.5
HP, 1 speed, Up-Rated ** |
|
0850369 |
346201 |
CHII-NI-2A |
2 |
115 / 230 v |
2
HP, 1 speed, Up-Rated ** |
|
0850372 |
346249 |
CHII-NI-2-1/2A |
2.5 |
230 v |
2.5
HP, 1 speed, Up-Rated ** |
|
** Special Order Item |
|
1 Speed, 3HP, Full-Rated, Challenger High Pressure
Pump |
|
H2O # |
Manf. # |
Model # |
HP |
Voltage |
Description |
|
0850375 |
345209 |
CHII-NI-3FE |
3 |
208-230 v |
3
HP, 1 speed, Full-Rated ** |
** Special Order Item
3 HP model comes with a Energy
Efficient motor |
|
|
Specifications:
1
Speed, Up-Rated,
Challenger High Pressure Pump |
|
H2O # |
Manf. # |
Model # |
Speeds |
HP |
SF |
Voltage |
Amps |
Length |

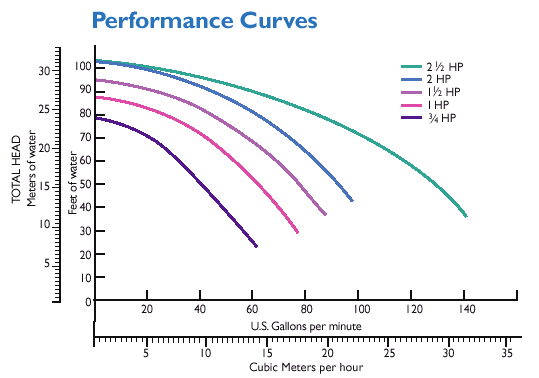

Pump Curve
Click to Enlarge |
|
0850360 |
346203 |
CHII-NI-3/4A |
1 |
3/4 |
1.27 |
115 / 230 v |
10.8 / 5.4 |
23" |
|
0850363 |
346204 |
CHII-NI-1A |
1 |
1 |
1.25 |
115 / 230 v |
14.2 / 7.1 |
23" |
|
0850366 |
346206 |
CHII-NI-1-1/2A |
1 |
1.5 |
1.10 |
115 / 230 v |
16.0 / 8.0 |
23" |
|
0850369 |
346201 |
CHII-NI-2A |
1 |
2 |
1.10 |
115 / 230 v |
22.4 / 11.2 |
23" |
|
0850372 |
346249 |
CHII-NI-2-1/2A |
1 |
2.5 |
1.04 |
230 v |
11.5 |
23" |
|
All pumps above have
2" Threaded Suction and Discharge |
Specifications:
1 Speed,
3HP, Full-Rated, Challenger High Pressure Pump |
|
H2O # |
Manf. # |
Model # |
Speeds |
HP |
SF |
Voltage |
Amps |
Length |

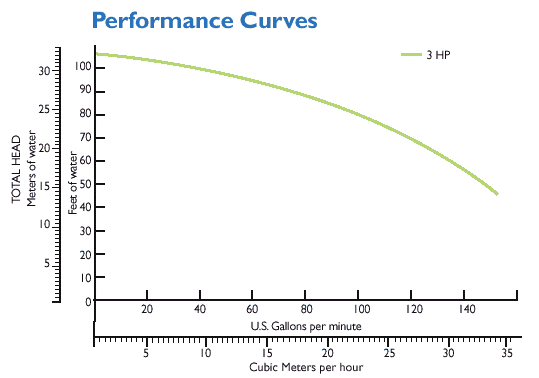

Pump Curve
Click to Enlarge |
|
0850375 |
345209 |
CHII-NI-3FE |
1 |
3 |
1.15 |
208-230 v |
15.0 / 13.6 |
23" |
3 HP model comes with a Energy Efficient motor,
2" Threaded Suction and Discharge |
|
|
