Have you been around long
enough to remember the 'MOONBEAM' Hot Tub
Heater?

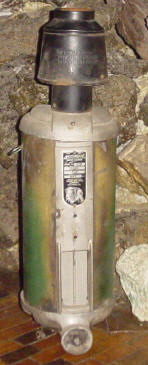

Introduced in the
late 1970's, the 'Moonbeam' was
manufactured by the 'Indian Spa Manufacturing
Company' and was the brainstorm of Doug Scher,
one of Indian's founders.
The 'Moonbeam'
was a gas fueled Wood Hot Tub heater which
required no pumps to operate and worked off the
simple principle that heat rises. Hot Tub users
could enjoy their hot tub experience without the
intrusion of pump motors.

3/4" pipes were
installed through the side of the wood tub and
as the cooler water below was heated by a burner
in the Moonbeam, the warmer water would flow
through the top of the heater back into the tub
by means of convection.
To control the
temperature in the tub a thermostat probe was
installed through the wall of the tub and
fastened to the inside wall. The thermostat
itself was actually designed and incorporated
within the gas valve itself. The gas valve was
located on the front of the heater. Gas
consumption was so low on the Moonbeam that in
most cases one needed to simply tap into the
nearest gas line instead of running a gas line
all the way to the meter.
Wood tubs
utilizing a Moonbeam were accompanied by a
separate pump, filter and timer which were independent
of the Moonbeam heater. The filtration system
kept the hot tub filtered while the Moonbeam
kept the tub ready for use without the pump
running. Ah, what a joy, soaking in silence.
 |
