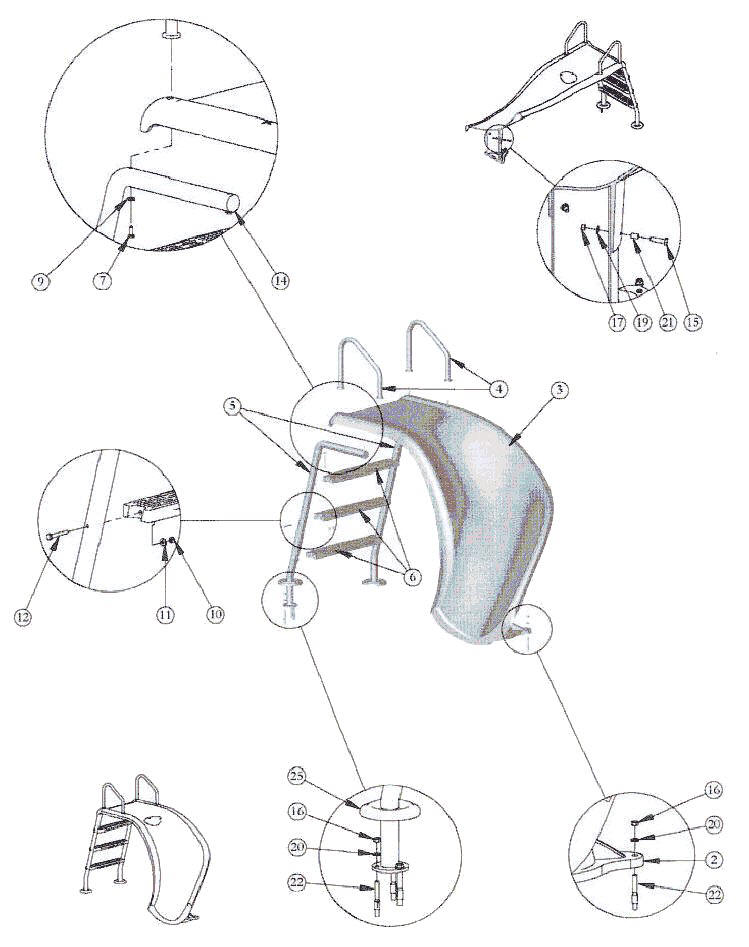

All Quantities (Qty) indicate number of
total components which were shipped with complete slide.
Some component parts can be ordered as a complete kit.
|
|
No.
|
Component |
Qty |
Description |
Included in Kit # |
|
1 |
ZM-HK |
1 |
Zoomerang Hose Kit |
- |
|
2 |
ZM-B |
1 |
Flume Support Base |
- |
|
3 |
ZM-R |
1 |
Zoomerang Runway |
- |
|
4 |
ZM-HR
|
2 |
Zoomerang Handrails |
- |
|
5 |
n/a |
2 |
Rails for Zoomerang Ladder |
- |
|
6 |
ZM-T |
3 |
Zoomerang Ladder Tread |
- |
|
7 |
3/8-16 X 3 GR2 TAP BOLT ZINC |
8 |
Ladder & Handrail Hardware |
ZM-H1 |
|
8 |
3/8-16 FIN HEX NUT ZINC |
4 |
Ladder & Handrail Hardware |
ZM-H1 |
|
9 |
3/8 USS FLAT WASHER ZINC |
12 |
Ladder & Handrail Hardware |
ZM-H1 |
|
10 |
5/16-18 S.S. FIN HEX NUT 18.8 |
6 |
Ladder & Handrail Hardware |
ZM-H1 |
|
11 |
5/16 S,S, FLAT WASHER 18.8 |
6 |
Ladder & Handrail Hardware |
ZM-H1 |
|
12
|
5/16-18 X 2-3/4 18-8 SS RAIL BOLT
|
6 |
Ladder & Handrail Hardware |
ZM-H1 |
|
13
|
3/8 X 3-1/2 DRIVE PIN
ANCHOR YLW ZINC |
4 |
Ladder & Handrail Hardware |
ZM-H1 |
|
14
|
1-5/8 VINYL CAP WHITE
|
2 |
Ladder & Handrail Hardware |
ZM-H1 |
|
15 |
1/4-20 X 1-1/4 GR2 HEX
BOLT ZINC |
3 |
Base Hardware |
ZM-H2 |
|
16 |
3/8-16 X 3 GR2 TAP BOLT ZINC |
3 |
Base Hardware |
ZM-H2 |
|
17
|
1/4-20 FIN HEX NUT ZINC |
3 |
Base Hardware |
ZM-H2 |
|
18
|
3/8-16 FIN HEX NUT ZINC
|
3 |
Base Hardware |
ZM-H2 |
|
19
|
1/4 USS FLAT WASHER ZINC
|
6 |
Base Hardware |
ZM-H2 |
|
20 |
3/8 USS FLAT WASHER ZINC |
6 |
Base Hardware |
ZM-H2 |
|
21 |
WHITE NYLON BUSHING |
3 |
Base Hardware |
ZM-H2 |
|
22 |
3/8 X 3-1/2 DRIVE PIN ANCHOR YLW ZINC |
3 |
Base Hardware |
ZM-H2 |
|
23 |
.463 X .310 VINYL CAP GRAY |
3 |
Base Hardware |
ZM-H2 |
|
24 |
.562 X .390 VINYL CAP GRAY |
3 |
Base Hardware |
ZM-H2 |
|
|
