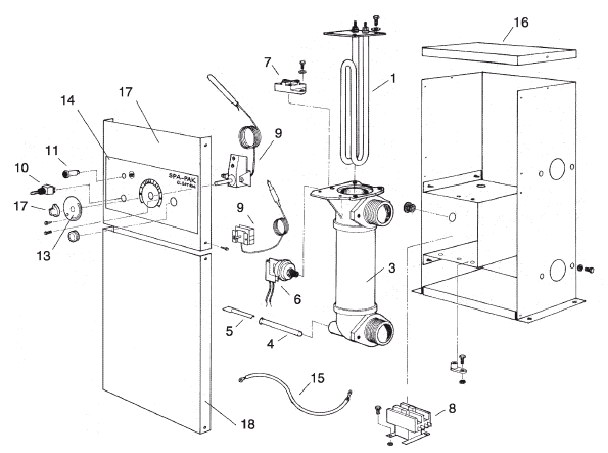

Electric Spa-Pak Heater by Raypak


Models

 ELS 552-2   ---- 5.5 kw
ELS 1102-2  --- 11 kw

( older models where colored dark brown )







No.
Manf #
H2O #
Description

1

001801F

7424420

tooltipELEMENT - 5.5 kw  - ( Model ELS 552-2 ) - includes gasket

1

001802F

7424435

tooltipELEMENT - 11 kw - ( Model ELS 1102-2 ) - includes gasket

2

800164

--------

ELEMENT GASKET (not shown)

3
001805F
9833153

ELEMENT TUBE ASSY.  - ( Model 5.5 kw ELS 552-2 )

3
001808F
9833167

ELEMENT TUBE ASSY.  - ( Model 11 kw ELS 1102-2 )

4
004087F
--------

SENSOR WELL, THREADED OR ROLLED

5

300203

--------

WELL RETAINING CLIP

6

062237B

7408225

tooltipPRESSURE SWITCH

7 001811F

7412240

tooltipHIGH LIMIT - 140 Degrees

8 001813F --------

CONTACTOR / Wire Kit - ( 40 FLA, 50 amps res ) 240 volt coil w / lug terminals

9 003346F 7416315

THERMOSTAT - ( replaces all previous versions )

10 650595 7464195

TOGGLE SWITCH - switch has been replaced with a newer style RayPak #650761 ( we do not stock this ) - the old style switch listed works fine )

11 001812F --------

INDICATOR LIGHT

12 006885F 7417205

KNOB

13 006886F --------

KNOBSTOP

14 900615 --------

DIAL PLATE

15 N/A --------

WIRE KIT (complete)

16 N/A --------

JACKET TOP

17 N/A --------

UPPER FRONT PANEL

18 N/A --------

LOWER FRONT PANEL
