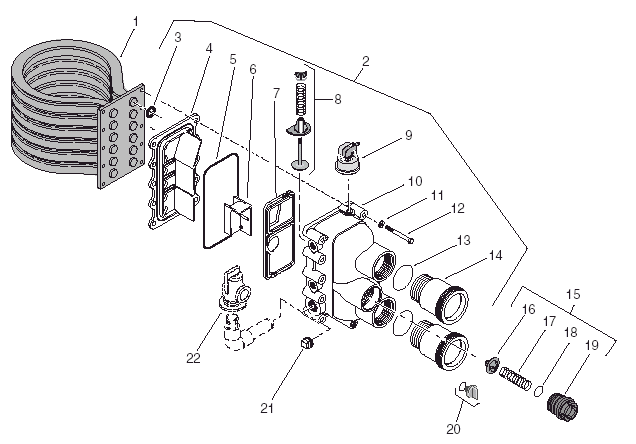

No.
|
Manf #
|
H2O # |
Description
|
|
1 |
Comment |
-------- |
Parts
for 'HD' models are not listed in this parts breakdown |
|
1 |
77707-0232 |
9875045 |
Tube Sheet Coil
Assembly for 175NA, 175LP, 200NA, 200LP models -
prior to 1/12/2009
Includes
No. 3 ( O-Ring Kit ) plus Igniter, Insulation & Blower/Flameholder
Gaskets. |
|
1 |
474058 |
9875046 |
Tube Sheet Coil
Assembly for 175NA, 175LP, 200NA, 200LP models -
after 1/12/2009
Includes
No. 3 ( O-Ring Kit ) plus Igniter, Insulation, Blower/Flameholder
Gaskets and
Combustion Chamber O-ring which was used on models after 1/12/2009 |
|
1 |
460747 |
9875050 |
Tube Sheet Coil
Assembly for 250NA, 250LP models -
prior to 1/12/2009
Includes
No. 3 ( O-Ring Kit ) plus Igniter, Insulation & Blower/Flameholder
Gaskets. |
|
1 |
474059 |
9875051 |
Tube Sheet Coil
Assembly for 250NA, 250LP models -
after 1/12/2009
Includes
No. 3 ( O-Ring Kit ) plus Igniter, Insulation, Blower/Flameholder
Gaskets and
Combustion Chamber O-ring which was used on models after 1/12/2009 |
|
1 |
77707-0233 |
9875055 |
Tube Sheet Coil
Assembly for 300NA, 300LP models -
prior to 1/12/2009
Includes
No. 3 ( O-Ring Kit ) plus Igniter, Insulation & Blower/Flameholder
Gaskets. |
|
1 |
474060 |
9875056 |
Tube Sheet Coil
Assembly for 300NA, 300LP models -
after 1/12/2009
Includes
No. 3 ( O-Ring Kit ) plus Igniter, Insulation, Blower/Flameholder
Gaskets and
Combustion Chamber O-ring which was used on models after 1/12/2009 |
|
1 |
77707-0234 |
9875060 |
Tube Sheet Coil
Assembly for 400NA, 400LP models -
prior to 1/12/2009
Includes
No. 3 ( O-Ring Kit ) plus Igniter, Insulation & Blower/Flameholder
Gaskets. |
|
1 |
474061 |
9875061 |
Tube Sheet Coil
Assembly for 400NA, 400LP models -
after 1/12/2009
Includes
No. 3 ( O-Ring Kit ) plus Igniter, Insulation, Blower/Flameholder
Gaskets and
Combustion Chamber O-ring which was used on models after 1/12/2009 |
|
Inside
2 |
474200 |
9875067 |
Basic Manifold Kit see No. 10 |
|
2 |
77707-0014 |
9875070 |
Complete Manifold Kit for
175NA, 175LP, 200NA, 200LP models -
Includes No. 3 thru 14 and
No.21
Also includes ( see Electrical Parts Breakdown ) No. 5, 6 and 7
( AGS , High Limit and Thermistor Switch ) |
|
2 |
460748 |
9875075 |
Complete Manifold Kit for
250NA, 250LP models -
Includes No. 3 thru 14 and
No.21
Also includes ( see Electrical Parts Breakdown ) No. 5, 6 and 7
( AGS , High Limit and Thermistor Switch ) |
|
2 |
77707-0015 |
9875080 |
Complete Manifold Kit for
300NA, 300LP models -
Includes No. 3 thru 14 and
No.21
Also includes ( see Electrical Parts Breakdown ) No. 5, 6 and 7
( AGS , High Limit and Thermistor Switch ) |
|
2 |
77707-0016 |
9875085 |
Complete Manifold Kit for
400NA, 400LP models -
Includes No. 3 thru 14 and
No.21
Also includes ( see Electrical Parts Breakdown ) No. 5, 6 and 7
( AGS , High Limit and Thermistor Switch ) |
|
3 |
77707-0117 |
order
9875065 |
O-Ring Kit - kit
is made up of 6 O-rings - 175NA, 175LP, 200NA, 200LP
models
This kit is included when you order Tube Sheet Coil Assembly No. 1 |
|
3 |
460749 |
order
9875065 |
O-Ring Kit - kit
is made up of 8 O-rings - 250NA, 250LP models
This kit is included when you order Tube Sheet
Coil Assembly No. 1 |
|
3 |
77707-0118 |
order
9875065 |
O-Ring Kit - kit
is made up of 10 O-rings - 300NA, 300LP models
This kit is included when you order Tube Sheet
Coil Assembly No. 1 |
|
3 |
77707-0119 |
9875065 |
O-Ring Kit - kit
is made up of 12 O-rings - 400NA, 400LP models
This kit is included when you order Tube Sheet
Coil Assembly No. 1 |
|
3
|
O-398
|
9095327 |
O-Rings - sold by
the each - ( Aladdin Replacement ) - order
quantity required |
|
8 |
77707-0001 |
9875023 |
Manifold Bypass
Valve Package - ( Standard ) |
|
8 |
460923 |
9875024 |
Bypass Valve Kit -
( ASME ) - NOT SHOWN - ASME valve appears
different than pictured.
ASME model heaters have a brass Manifold and have a bypass plug (
472648Z ) for accessing bypass. |
|
9 |
42001-0060S |
9875017 |
Water Pressure
Switch - ( Standard ) |
|
9 |
473716Z |
-------- |
Water Pressure
Switch - ( ASME ) |
|
10 |
474200 |
9875067 |
Basic Manifold Kit for
200,000 thru 400,000 BTU models
Includes No. 3, No. 5 and No.10 thru No.14 |
|
13 |
O-49 |
9094149 |
O-Ring Only for
Connector Tube - ( Aladdin Replacement )
-
order quantity needed
|
|
14 |
77707-0017 |
-------- |
Connector Tube Kit
-
Includes 1 Connector Tube and 1
O-Ring ( No.13 )
-
order quantity
needed |
|
15 |
77707-0010 |
9875034 |
Thermal
Regulator
Assembly -
Includes No. 16 thru No. 19 and
Spring Clip which holds Spring to Regulator |
|
16 |
38000-0007S |
9875035 |
Thermal
Regulator
Only -
Includes Spring Clip which
holds Spring to Regulator -
( DOES NOT INCLUDE SPRING) |
|
18 |
35505-1313 |
9095119 |
O-Ring for Thermal
Regulator Cap - O-Ring Only - ( Aladdin Replacement O-Ring # O-122 ) |
| 20 |
U178-920P |
9871682 |
1/4” NPT Drain
Plug - ( includes O-Ring ) |
| 20 |
U9-359 |
9094189 |
Replacement Drain
Plug O-Ring Only - ( does not include Plug ) |
| 21 |
U78-60ZPS |
-------- |
3/4" Zinc Pipe
Plug |
| 22 |
473715Z |
9764802 |
Pressure Relief
Valve Kit |
|
|
|
 Box
A
Pentair # Pkg 188
- H2O# 7433155
2" Slip Half Union Kit
Both bagged or boxed Includes 2 each
of:
U11-200P Union Collar
U9-362 O-Ring ( H2O# 9874748)
U11-196P 2" Slip adapter |
NOTE:
Exchanger replacements on ASME models require that you order the
exchanger and the manifold assemble all as one unit.
ASME Chamber/Heat Exchangers Kits DO NOT INCLUDE Igniter and Gaskets
like NON-ASME replacements.
Please contact purchasing for
information on special ordering these replacements.
|
|
 The
proper part name for a heat
exchanger in a MasterTemp is called,
Tube Sheet Coil Assembly. |
These parts are included with the Tube
Sheet Coil Assembly ( Exchanger )
|
