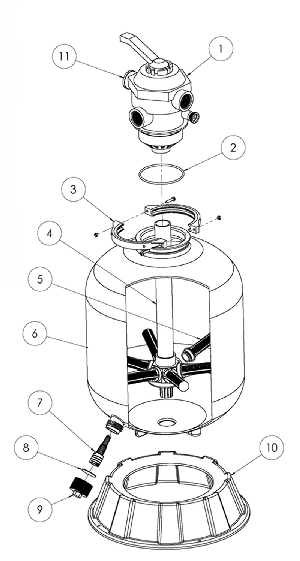

No.
|
Manf #
|
H2O # |
Description
|
|
1 |
262506 |
1630214 |
Multiport Valve,
1-1/2", 6 Way |
|
2 |
272541 |
9763156 |
O-Ring, Valve Body |
|
3
|
152165
|
-------- |
Clamp Assembly |
|
4
|
152229
|
-------- |
Pipe Assembly 16"
Tank |
|
4
|
152228
|
-------- |
Pipe Assembly 19"
Tank |
|
4
|
152227
|
-------- |
Pipe Assembly 22"
Tank |
|
4
|
152000
|
-------- |
Pipe Assembly 24"
Tank |
|
4
|
152226
|
-------- |
Pipe Assembly 26"
Tank |
|
5 |
150084 |
-------- |
Lateral 16" & 19"
Tanks |
|
5 |
150085 |
-------- |
Lateral 22", 24" &
26" Tanks |
|
6 |
145364 |
-------- |
Tank w/Drain 16"
Tank |
|
6 |
145365 |
-------- |
Tank w/Drain 19"
Tank |
|
6 |
145366 |
-------- |
Tank w/Drain 22"
Tank |
|
6 |
145369 |
-------- |
Tank w/Drain 24"
Tank |
|
6 |
145370 |
-------- |
Tank w/Drain 26"
Tank |
| 7 |
154711 |
-------- |
Sand Drain |
| 8 |
154715 |
-------- |
Gasket ( Sand
Drain ) |
| 9 |
154712 |
-------- |
Drain Cap |
| 10 |
154926 |
-------- |
Base 16" Tank |
| 10 |
154520 |
-------- |
Base 19", 22", 24"
and 26" Tanks |
| 11 |
190059 |
7481135 |
Pressure Gauge |
|
Not Shown |
| - |
155151 |
-------- |
Kit, Flex Hose, 6
foot |
| - |
155005 |
-------- |
Kit, Flex Hose, 12
foot |
|
|
|
|
|
