1

154689

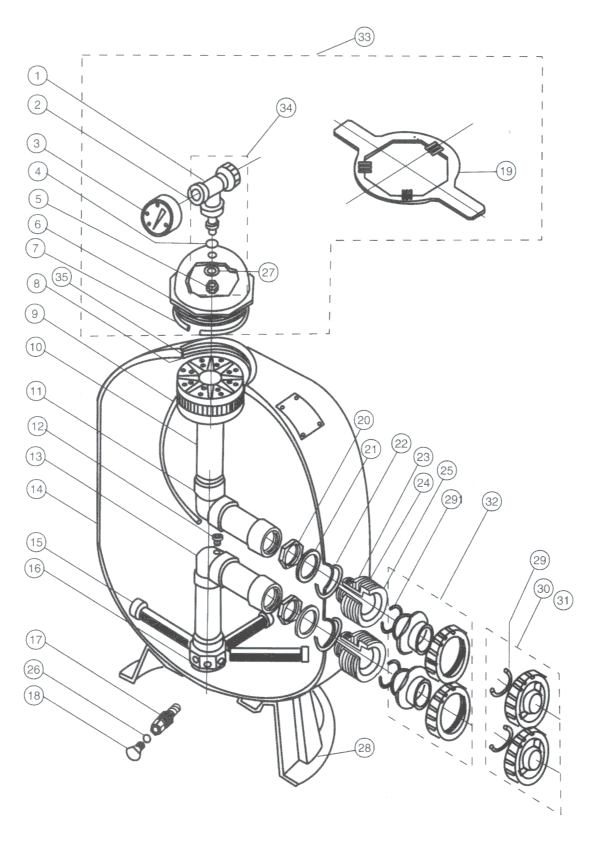

Air bleeder/tee assy.

2

154700

Adapter - brass air bleeder

3

190059

Gauge rear mount pressure - O.E.M - ( old Pentair No. before 190059 was 155050 )

3

190059

Gauge rear mount pressure - Non-O.E.M

4

92200060

O-ring - air bleeder adapter - ( old Pentair number 154661 )

5

154664

Nut - 3/8 in. - 16 s/s

6

154570

Closure - 6 in. btr. thread  ( see Detail A below )

6

154559

Closure - 6 in. "V" thd. blk ( see Detail B below )

7

154493

O-ring closure, white

8

154578

Strainer air relief            ( manufactured before 11-1-99 )

8

150035

Strainer air relief            ( manufactured after 11-1-99 )

9

154435

Tube air relief TR40        ( manufactured before 11-1-99 )

Tube air relief TR40        ( manufactured after 11-1-99 )

9

154436

Tube air relief TR50/60   ( manufactured before 11-1-99 )

Tube air relief TR50/60   ( manufactured after 11-1-99 )

9

154437

Tube air relief TR100      ( manufactured before 11-1-99 )

9

150041

Tube air relief TR100      ( manufactured after 11-1-99 )

9

154438

Tube air relief TR140      ( manufactured before 11-1-99 )

Tube air relief TR140      ( manufactured after 11-1-99 )

Diffuser assy. TR40/50

10

154599

Diffuser assy. TR60

10

154462

Diffuser assy. TR100

10

154906

Diffuser assy. TR140

11

154803

Piping assy. upper TR40

11

156814

Piping assy. upper TR50

11

154533

Piping assy. upper TR60

11

154426

Piping assy. upper TR100

11

154500

Piping assy. upper TR140

12

154440

Connector air relief tube ( manufactured before 2-89 )

12

154421

Connector air relief tube ( manufactured after 2-89 and before 11-1-99 )

12

150036

Connector air relief tube ( manufactured after 11-1-99 )

13

154801

Piping assy. lower TR40

13

156816

Piping assy. lower TR50

13

155284

Piping assy. lower TR60 ( manufactured after 11-1-2007 ) ( old Pentair No, 154805 )

13

154807

Piping assy. lower TR/PF100

13

154489

Piping assy. lower TR140

14

154636

Tank & ft. assy. TR40-6 in. btr. thd.   ( see Detail A below )

14

154637

Tank & ft. assy. TR50-6 in. btr. thd.   ( see Detail A below )

14

154638

Tank & ft. assy. TR60-6 in. btr. thd.   ( see Detail A below )

14

154639

Tank & ft. assy. TR100-6 in. btr. thd. ( see Detail A below )

14

154640

Tank & ft. assy. TR140-6 in. btr. thd. ( see Detail A below )

14

156224

Tank & ft. assy. TR100D btr. thd. blk-hvy. duty

15

152290

Lateral - 6-11/16 in. L TR40/50/60, 8 req.

15

152202

Lateral - 9-1/8 in. L TR100, 8 req. ( manufactured after 5-85 )

15

154543

Lateral - 6-1/2 in. L TR100, 8 req ( manufactured before 5-85 )

15

154540

Lateral 12 in. L TR140, 8 req.

16

154763

Hub lateral TR40/50/60

16

154453

Hub lateral TR100/140

17

152220Z

Sand drain 2 in. - complete with o-ring and 1-1/2" cap - does not need # 26 or # 18
Replacement o-ring only use H2O # 9761085 - Pentair # 154495

17

154698

Spigot 3/4 in. npt sand drain ( manufactured after 3-83 thru 3-96 )

17

154685

Spigot 1/2 in. npt sand drain ( manufactured before 3-83 )

18

154871

Cap thd. 1-1/2 in.

18

154699

Plug 1/4 in. npt drain ( manufactured after 3-83 thru 3-96 )

18

154480

Plug 1/4 in. npt drain, see 154481 ( manufactured before 3-83 )

18

154481

Plug 1/4 in. drain plug black

19

154512

Wrench 6 in. closure

19

154510

Wrench closure aluminum

20

154412

Locknut 2 in. internal, 2 req.

21

154416

Spacer 2 in. internal, 2 req.

22

154492

O-ring 2 in. bulkhead, 2 req.

23

154408

Spacer 2 in. external, 2 req.

24

154538

Gasket 2 in. bulkhead, 2 req.

25

154714

Bulkhead 2 in., 2 req. ( old Pentair No, 154405 )

26

154492

O-ring 3/16 in. x 2-5/8 in. i.d., used on # 17 H2O# 9761042 Pentair # 152220

26

192115

O-ring drain plug ( manufactured after 3-83 thru 3-96 )

27

154418

Washer 3/8 in. s/s

28

154926

Ft. 16 in. dia., TR40/50 ( manufactured after 2-89 ) ( requires the use of foot mounting tape )

28

154520

Ft. 19 in.dia.,TR60 ( manufactured after 2-89 ) ( requires the use of foot mounting tape )

28

154596

Ft. 24 in. dia., TR100/140 ( manufactured after 2-89) (requires the use of foot mounting tape )

29

274494

O-ring valve adptr., 2 req.

30

271092

2 in. thd. adptr. kit ( Pair ) ( For installations w/out Valve )

31

271094

1-1/2 in. thd. adptr. kit ( Pair ) ( For installations w/out Valve )

32

271096

1-1/2 in. & 2 in. slip adptr. kit ( Pair ) ( For installations w/out Valve )

33

154641

Kit closure, 6 in. btr. thd., blk ( see Detail A below )

33

154697

Kit closure, 6 in. "V" btr. thd., tan ( see Detail B below )

33

154856

Kit closure, 8-1/2 in. btr. thd., blk. ( all TR100 & 140 filters manufactured after 10 1-01 )

34

154687

Fitting package complete ( Fitting package includes items 1, 2, 4, 5, and 27 )

35

154611

Spacer air vent strainer 3-3/4 in. TR40

35

154612

Spacer air vent strainer 4-1/2 in. TR50/60

35

154613

Spacer air vent strainer 5-1/2 in. TR100

35

154614

Spacer air vent strainer 5 in. TR140

154402

Tape ft. mounting TR40/50/60, 3 req.

154407

Tape ft. mounting TR100/140, 3 req.

151602

Bulkhead wrench 2 in.

154714

Bulkhead kit, ( includes items 20-25 )

Not all items shown are available for sale individually, but may be purchased as part of a kit.
