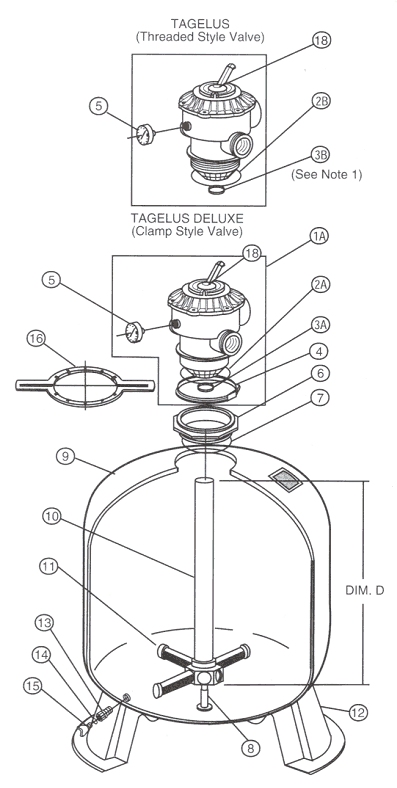

No.
|
Manf #
|
H2O #
|
Description
|
|
1A |
262506 |
1630214 |
Valve 1-1/2 in.
6-way clamp style TA30, TA35D, TA40D,
TA50D, TA60D |
|
1A |
261185 |
1630218 |
Valve 2 in. 6-way
clamp style TA100D |
|
1B |
261130 |
-------- |
Valve 1-1/2 in.
6-way btr. thread TA (note 5)
This valve has been replaced with Pentair # 262504 listed next |
|
1B |
262504 |
1630210 |
Valve 1-1/2 in.
6-way btr. thread or clamp style. (note 5)
Adapts from clamp to butress.
This valve can either be used as a Clamp
style or Buttress Style valve but not 'V' Thread |
|
1B |
261124 |
1630206 |
Valve 1-1/2 in.
6-way "V" thread-TA (note 6) |
|
2A |
272541 |
9763156 |
O-ring valve bdy.
3/16 in. x 4-3/4 in. i.d. TA30D, TA35D, TA40D,
TA50D, TA60D |
|
2A |
275333 |
9761200 |
O-ring valve bdy.
3/16 in. x 6-1/2 in. i.d. TA100D |
|
2B |
154493 |
9761089 |
O-ring valve bdy.
.157 in. x 5.75 in. i.d. TA30, TA35, TA40,
TA50, TA60 |
|
3A |
355330 |
9760382 |
O-ring stndp. 1/8
in. x 2-3/8 in. i.d. TA100D
(note 1) |
|
3B |
155064 |
-------- |
O-ring stndp. 1/8
in. x 1-7/8 in. i.d. TA30, TA35, TA40, TA50,
TA60 (note 1) |
|
4 |
152165 |
-------- |
Clamp 6-1/2 in. dia.
TA30D, TA35D, TA40D, TA50D, TA60D s/s, plastic |
|
4 |
152130
|
-------- |
Clamp 8.35 in. dia.
TA100D |
|
5
|
190059
|
7481220 |
Gauge back
mount pressure - O.E.M -
( old Pentair No. before 190059 was
155050 ) |
|
5
|
190059
|
7481135 |
Gauge back
mount pressure - Non-O.E.M |
|
6 |
154555
|
-------- |
Adapter 6 in. btr.
thd. TA30D, TA35D, TA40D, TA50D, TA60D
(notes 4 & 7) |
|
6
|
155225
|
-------- |
Adapter 6 in. "V" thd.
TA30D, TA40D, TA50D, TA60D
(notes 4 & 8) |
|
6
|
154521
|
-------- |
Adapter 8-1/2 in.
btr. thd. TA100D (note 4) |
|
7 |
154494 |
9094173 |
O-ring valve adptr.,
.157 in. x 5.75 in. i.d. TA30D, TA35D, TA40D,
TA50D, TA60D |
|
7 |
355619 |
-------- |
O-ring valve adptr.,
1/8 in. x 8-1/4 in. i.d. TA100D |
|
8
|
155002
|
-------- |
Stabilizer, center
pipe |
|
9 |
155276 |
-------- |
Tank & ft. assy. w/
valve adptr. TA40D (notes 2, 7 & 8) |
|
9 |
155279 |
-------- |
Tank & ft. assy. w/
valve adptr. TA50D (notes 2, 7 & 8) |
|
9 |
155269 |
-------- |
Tank & ft. assy. w/
valve adptr. TA60D (notes 2, 7 & 8) |
|
9 |
155324 |
-------- |
Tank & ft. assy. w/
valve adptr. TA100 & TA100D (notes 2, 7 & 8) |
|
9 |
155342 |
-------- |
Tank & ft. assy.
btr. thread style TA40
(notes 5 & 6) |
|
9 |
155343 |
-------- |
Tank & ft. assy.
btr. thread style
TA50 (notes 5 & 6)
|
|
9 |
155358 |
-------- |
Tank & ft. assy.
btr. thread style TA60
(notes 5 & 6) |
|
10 |
155060 |
-------- |
Piping assy. ( dim. D = 12-7/8 in.) -
TA30 & TA30D |
|
10 |
153455 |
-------- |
Piping assy. ( dim.
D = 14-7/8 in.) -
TA35 & TA35D |
|
10 |
155061 |
-------- |
Piping assy. (
dim. D = 17-3/4 in.) -
TA40 & TA40D |
|
10 |
155062 |
-------- |
Piping assy. ( dim. D = 19-7/8 in.)
-
TA50 & TA50D |
|
10 |
155063 |
-------- |
Piping assy.
( dim. D = 22-5/8 in.) -
TA60 & TA60D |
|
10 |
155340 |
-------- |
Piping assy. - less
hub^ ( dim. D = 27-1/4 in.) -
TA100 & TA100D |
|
10 |
155323 |
-------- |
Piping assy. - w/
hub^ ( dim. D = 27-1/4 in.) -
TA100 & TA100D |
|
10 |
155299 |
-------- |
Piping assy. - w/
hub^ ( dim. D = 27-1/4 in.) -
TA60D - ( see note
9 ) |
|
11 |
155007 |
-------- |
Lateral - 5-11/32
in. long TA30, TA30D, TA35, TA35D, 8 req. |
|
11 |
152290 |
9761210 |
Lateral - 6-11/32
in. long TA40, TA40D, TA50, TA50D, TA60, TA60D,
8 req. |
|
11 |
152202 |
9761221 |
Lateral - 9-1/8 in.
long TA100 & TA100D |
|
11 |
150085 |
-------- |
Lateral, 1/4 turn,
6 req. -
TA60D - ( see note
9 ) |
|
12 |
154926 |
-------- |
Foot tank
TA35, TA35D, TA40, TA40D, TA50, TA50D,
TA60, TA60D |
|
12 |
154596 |
-------- |
Foot tank
TA100D (see
note 3) |
|
13 |
154698 |
9761155 |
Spigot 3/4 in. NPT
sand drain TA30D, TA35D, TA40D, TA50D, TA60D |
|
13 |
154685 |
-------- |
Spigot 1/2 in. NPT
sand drain TA30, TA35, TA40, TA50, TA60 |
|
13 |
152220 |
9761042 |
Spigot 2 in. NPT
sand drain TA100 |
|
14 |
192115 |
9760053 |
O-ring drain plug
1/16 in. x 1/2 in. i.d. |
|
14 |
154871 |
-------- |
O-ring drain plug
TA100 |
|
15 |
154699 |
9760032 |
Plug 1/4 in. NPT
drain |
|
16 |
154512 |
9761095 |
Wrench 6-1/2 in.
across flats TA30D, TA40D, TA50D, TA60D |
|
16 |
151608 |
-------- |
Wrench 9 in. across
flats TA100D |
|
- |
154402 |
-------- |
Tape ft. mounting
(not shown) all except
TA100 & TA100D |
|
- |
154407 |
-------- |
Tape ft. mounting
(not shown) TA100 & TA100D only |
|
18 |
272599 |
-------- |
Label top mount
valve |
|
- |
155051 |
-------- |
Sand guide |
|
|
|
|
|
|
Not all items
shown are available for sale individually, but may be purchased as part
of a kit. |
Note 1:
Item 3A O-ring - Standpipe is used on model TA100D Filters only.
Item 3B O-ring - Standpipe is used on Tagelus Filter models TA30,
40, 50, 60 manufactured before April, 1993. Item 38B is not used
on Tagelus Clamp Filter models TA30D, 35D, 40D, 50D, 60D or any
Tagelus models manufactured after April, 1993.
Note 2:
Tagelus Clamp Filter models Tank & ft. assy. have valve adptr.
(Item 6) factory installed.
Note 3:
Replacement of Tank ft. requires the use of mounting tape. See
part number listed.
Note 4:
Lubricate O-ring liberally w/ silicone lubricant and tighten to
following spec: TA30D, 35D, 40D, 50D, 60D. Handtight plus 1/4 turn
min. TA100D Handtight plus 3/4 turn min.
Note 5:
Tagelus Filter models TA30, 35, 40, 50, 60 manufactured after Nov,
1, 1991, were manufactured w/ a btr. thread top opening and
utilize a btr. style valve which is black in color. A change was
made to the port arrangement in April, 1993, which will require
that minor changes be made to the valve plumbing connections when
replacing valves on filters manufactured between Nov. 1991 and
Mar. 1993. DO NOT ATTEMPT TO INTERCHANGE THREAD TYPES.
Note 6:
Tagelus Filter models TA30, 40, 50, 60 manufactured before Nov, 1,
1991, were manufactured w/ a "V" thread style valve that is white
or brown in color. These valves may be replaced only w/ "V" thread
style valve P/N 261124, see Detail B.
DO NOT ATTEMPT TO
INTERCHANGE THREAD TYPES.
Note 7:
Tagelus Clamp Filter models TA30D, 35D, 40D, 50D, 60D manufactured
after Nov, 1, 1991, were manufactured w/ a btr. thread top opening
and utilize a btr. thread valve adptr. P/N 154555,
see Detail A below.
DO NOT ATTEMPT TO INTERCHANGE THREAD TYPES.
Note 8:
Tagelus Clamp Filter models TA30D, 40D, 50D, 60D manufactured
before Nov, 1, 1991, were manufactured w/ "V" thread top opening
and utilize a "V" thread valve adptr. P/N 155225,
see Detail B below.
DO NOT ATTEMPT TO INTERCHANGE THREAD TYPES.
Note 9:
TA60D Filters manufactured after June 1, 2007 have new 1/4 turn
laterals.
|
|
|
Detail A and B |
Note: To determine manufacture date, the first 4 digits of the
serial number indicate the month and year product
was manufactured. |
|
|
|
|
Detail A, (after 12/1/91)
6 in. btr. Thread.
|
Detail B, (before 12/1/91)
6 in. "V" Thread.
|
|
last update - March, 2005
|
|
