Clean & Clear Plus by Pentair

CC240 thru CC520
Cartridge Filters

*Note* Entries which appear like
"Spring, compression - Before 11/98"
are no longer shown on newer
Pentair breakdowns and may or may not
be still available.



Switch View To Wide Screen


   H2Oco.com

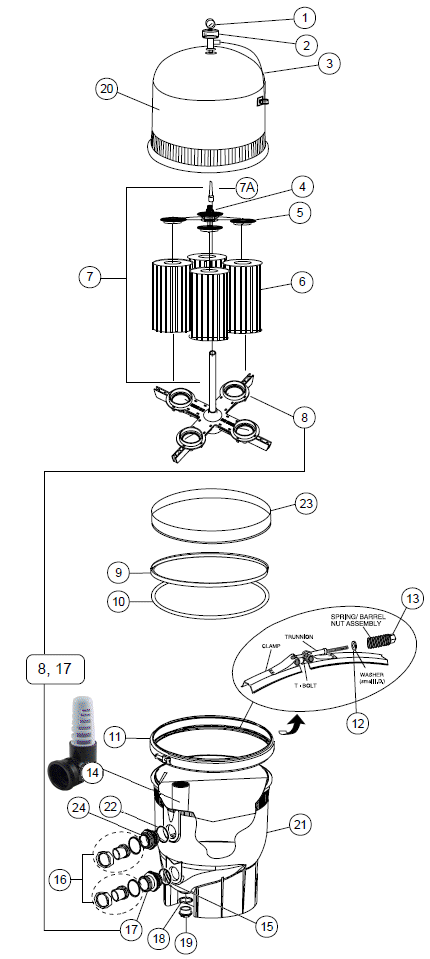

No.
Manf #
H2O #
Description

1+2

98209800

9152235

High Flow manual relief valve KIT (HFMARV)
This kit includes the Pressure Gauge with Clean / Dirty Indicator.

1

190058

7481218

Gauge, pressure, O.E.M, 1/4 inch - Gauge with Clean / Dirty Indicator.

1

-------------

7481210

Gauge, pressure, 1/4 inch - ( Generic - not O.E.M ) - Gauge Only

2

98209803

9152236

High Flow™ manual air relief valve (HFMARV) - ( does not include gauge )

3

98201200

--------

Hose and retainer clips for HFMARV (Optional accy.)

4

56636900

--------

Spring, compression - Before 11/98

4

178616

--------

Spring, compression - After 11/98

5

59071000

--------

Manifold, top assy. - Before 11/98

5

170026

--------

Manifold, top assy., 240 sq. ft. - After 11/98

5

170027

--------

Manifold, top assy., 320 & 520 sq. ft. - After 11/98

6

R173572

1846613

Cartridge Element, 240 sq. ft., 4 req. - ( Unicel C-7469 )

6

R173573

1846614

Cartridge Element, 320 sq. ft., 4 req. - ( Unicel C-7470 )

6

R173574

--------

Cartridge Element, 360 sq. ft., 4 req.

6

R173575

--------

Cartridge Element, 420 sq. ft., 4 req. - aqua end caps - Before 11/98

6

R173576

1846615

Cartridge Element, 420 sq. ft., 4 req. - After 11/98 - ( Unicel C-7471 )

6

R173577

--------

Cartridge element, 520 sq. ft., 4 req. - Before 11/98

6

R173578

1846616

Cartridge element, 520 sq. ft., 4 req. - After 11/98 - ( Unicel C-7472 )

7

170030

--------

Air bleed tube assy.,  240 sq. ft. - ( Pipe & Screen )

7

55028500

--------

Air bleed tube assy., 360, 420 sq. ft. - Before 11/98. - ( Pipe & Screen )

7

170029

--------

Air bleed tube assy., 320 sq. ft. - After 11/98. - ( Pipe & Screen )

7

170028

--------

Air bleed tube assy., 420 sq. ft. - After 11/98. - ( Pipe & Screen )

7

55028400

--------

Air bleed tube assy., 500 sq. ft. - Before 11/98. - ( Pipe & Screen )

7

178583

9761020

Air bleed tube assy., 520 sq. ft. - After 11/98. - ( Pipe & Screen )

7A

190106Z

9761021

Air Bleed Screen - ( Screen Only )

8

56626800

--------

Manifold, bottom - Before 11/98

8

170035

9761001

Manifold, bottom/pipe assy., outlet - Between 11/98 thru 12/00

8

170040

--------

Manifold, bottom - After 12/00

9

57000300

--------

Gasket, bottom manifold - Before 11/98

10

39010200

9761039

O-ring, tank clamp (.470 O.D.)

11

190003

9761032

Clamp kit, tension control - ( Includes item 12 & 13 )

12

195610

--------

Washer, small I.D. - After 3/03

12

53006300

--------

Washer, .325 I.D. for filter clamp

13

53108900

9761035

Spring/Barrel Nut Assembly, machined

13A

195612

--------

Spring - After 3/03

14

55035000

--------

Baffle, bulkhead assy. - Before 11/98

14
190039
9761037

Baffle, bulkhead Assy. - After 11/98

15
86006900
9761008

O-ring, bulkhead, lower

16

98960311

--------

Bulkhead union, (set) - Before 11/98

16

271096

1630225

Bulkhead union, 1-1/2 in. x 2 in. (set), white - After 11/98 - valve adapter kit

16

270004

--------

Bulkhead union, 1-1/2 in. x 2 in. (set), black - After 11/98 - valve adapter kit

16

270100

9761012

2 in. Adapter Kit - 2 in.x 2-1/2 in. (set)

17

170035

9761001

Pipe assy., outlet/manifold, bottom - After 11/98

17

178575

9761006

Bottom Outlet Bulkhead Only  ( O-Rings NOT Included ) - After 11/98

17

59019200

--------

Pipe assy., outlet - Before 11/98

17

170036

--------

Pipe assy., outlet - After 12/00

18

86300500

--------

Drain Cap Gasket - Before 11/98

18

273090

9763190

O-Ring for Drain Cap - After 11/98 - (old O.E.M # 51005000)

18

191474

9097139

O-Ring for Drain Cap - After 5/21/2005 - This a Non O.E.M Aladdin # O-125

19

51516200

--------

Drain Cap - Before 11/98

19

86202000

9152242

Plug, 1-1/2 in. drain with O-ring - After 11/98

19

190030

9152246

Drain Cap Plug - After 5/21/2005 - ( uses O-ring 9097139 )

20

170023

--------

Tank, lid assy., 240 sq. ft.

20

170024

--------

Tank, lid assy., 320 sq. ft.

20

178552

--------

Tank, lid assy., 360 sq. ft.

20

178551

--------

Tank, lid assy., 420 sq. ft. - Before 11/98

20

178581

--------

Tank, lid assy., 420 sq. ft. - After 11/98

20

178550

--------

Tank, lid assy., 500 sq. ft. - Before 11/98

20

178582

--------

Tank, lid assy., 520 sq. ft. - After 11/98

21

178578

9761024

Tank, Bottom Assy - After 11/98

21

178559

--------

Tank, bottom assy. - Before 11/98

22

192320

--------

O-ring, bulkhead, upper - Between 11/98 thru 10/04

22

86006900

9761008

O-ring, bulkhead, upper - Before 11/98 & After 10/04

23

195339

--------

Ring, back-up - After 3/2003

24

194801

9761004

Bulkhead, 2-3/8, 8 buttress thread - After 11/98



Tools

--

192019 --------

Drain plug wrench

--

010126

--------

Filter lid opener tool


last update -  Feb, 2013
