Model HC-3315, HC-3330, HC-3340
 by Pentair
( Rainbow Lifegard by Pentair )

Off Line High Capacity
Automatic Chemical Feeder

Unit Order Numbers:
 HC-3315 -------- R171215
 HC-3330 -------- R171230
 HC-3340 -------- R171240






 Rainbow’s professional high capacity feeders

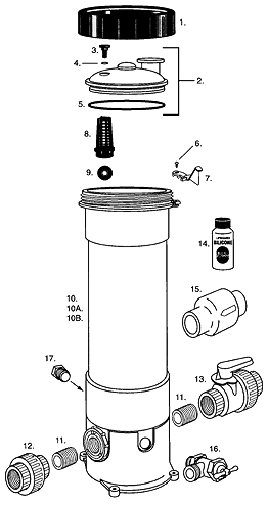

No.
Manuf Part #
Qty
Description

1

R172214

1

Lock ring

2

R172385D

 1

Lid assembly complete

3

R172224X

 1

Vent valve

4
R172221
 1

O-ring vent valve

5

R172240

 1

O-ring lid to housing

6

R172375

 1

Lock screw

7

R172374

 1

Lock spring

8

R175251

 1

Screen

9

R172435

 1

Check ball

10

R172436

 1

HC 3315 housing w/stand - obsolete
no longer avail separately

10A

R172437

 1

HC 3330 housing w/stand - obsolete
 no longer avail separately
10B
R172438
 1

HC 3340 housing w/stand - obsolete
no longer avail separately
11

R270484

 2

1 in. Close nipple
12
R270531
 1

1 in. Threaded union

13

R172439

 1

Control valve

14

R172036

 1

Silicone lubricant

15

R172288

 optional

1-1/2 in. – 2 in. Check valve
16
R175009
 1

1/2 in. Drain valve

17
R172134
 1

1/2 in. Threaded plug



R172082

 optional

Flow rate indicator
