PoolShark by Sta-Rite / Pentair


MODELS

GW7500  ( teal )
GW7700  ( gray )
 H2Oco.com

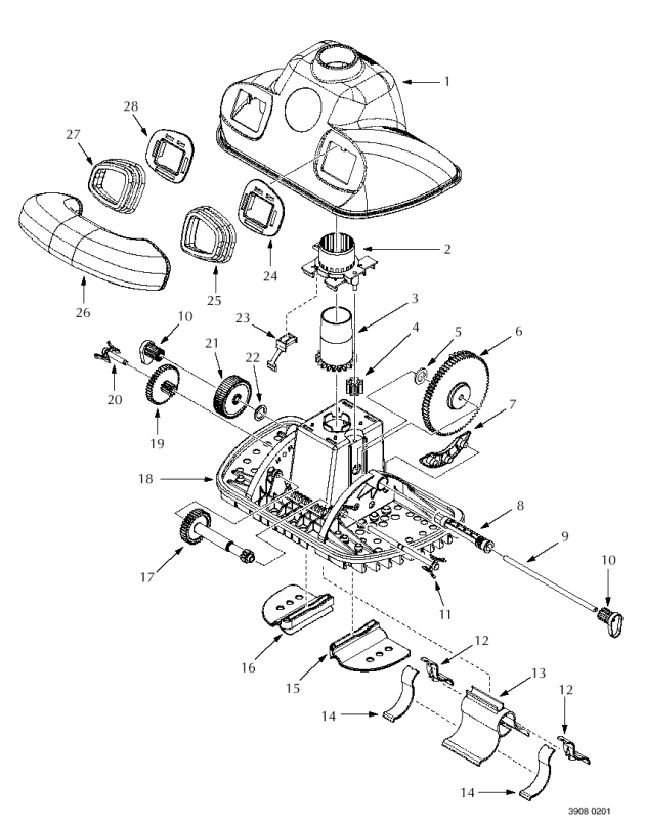

Part Number
Key Description Qty Model
 GW7500		 Model
GW7700
• Steering Kit (Incl. Key Nos. 2, 3, 4) kit

GW7505
-

GW7515
-


2

 Swivel Housing 1


3

 Swivel 1


4

 Swivel Sprocket 1
• Clutch Kit (Incl. Key Nos. 5, 8, 21, 22, 23) kit

GW7503
-

GW7503
-
  5 Oscillator Sleeve Bushing 1
  8 Oscillator Sleeve 1
  21 Clutch Assembly 1
  22 Teflon Washer 1
  23 Clutch Clip 1
•

Gear Kit (Incl. Key Nos. 6, 10, 11, 17, 19, 20)

 kit

GW7504
-

GW7504
-
  6 Large Steering Drive Assembly 1
  10 Shaft Plug 2
  11 Long Sprocket Clip 1
  17 Drive Shaft Assembly 1
  19 Center Sprocket 1
  20 Short Sprocket Clip 1
• Oscillator Kit (Incl. Key Nos. 12, 13, 14) kit

GW7502
  H2O# 9879107

GW7502
  H2O# 9879107

  12 Small Sliding Seal 2
  13 Oscillator 1
  14 Large Sliding Seal 2
•

Seal Flap Kit (Incl. Key Nos. 15, 16)

 kit

GW7506
  H2O# 9879114

GW7506
  H2O# 9879114

  15 Right Seal Flap 1
  16 Left Seal Flap 1
18

Chassis with Pad

 1

41201-0242
-

41201-0242C
-
•

Bumper Kit (Incl. Key Nos. 24, 25, 26, 27, 28)

 kit

GW7501
  H2O# 9879121
 Special Order

GW7511
  H2O# 9879128

  24 Right Bumper Clip 1
  25 Right Bumper Boot 1
  26 Bumper 1
  27 Left Bumper Boot 1
  28 Left Bumper Boot Clip 1


The following 3 parts below are not sold separately
1 Outer Housing 1
7 Support Brace 1
9 Stainless Steel Axle 1



Hoses and Accessory Kit


Part Number
Key Description Qty Model
 GW7500		 Model
GW7700
•

Short Leader Hose 14 inches long

 1

GW9540
  H2O# 9879141

GW9540
  H2O# 9879141
Short Leader Hose 14 inches long




•

1 Meter ( 39 inches ) Replacement Hose

1

41201-0252
 H2O# 9879135

41201-0252
 H2O# 9879135

•

1 Meter ( 39 inches ) Replacement Hose Case Qty

 25

GW7507
-

GW7507
-
Replacement Hose

( 10 lengths of 1 Meter Hoses come standard with new unit )




•

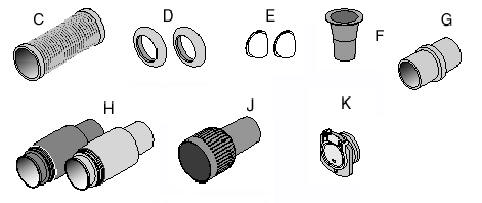

Accessory Kit ( breakdown below )

 Kit

77705-0400
  H2O# 9879147

77705-0400
  H2O# 9879147

  C Short Extension Hose (coupler 3 inches) 1
  D Hose Weight 2
  E Eyeball Diverter 2
  F Reducer Cone - if ordered separately
use Pentair Part# GW9015		 1
  G Hose Connector Male/Male 1
  H Regulator Valve #1 1
  H  Regulator Valve #2 1
  J Regulator Valve Cover 1
  K Vac Port Fitting 1








Close Window

last update -  March, 2006
